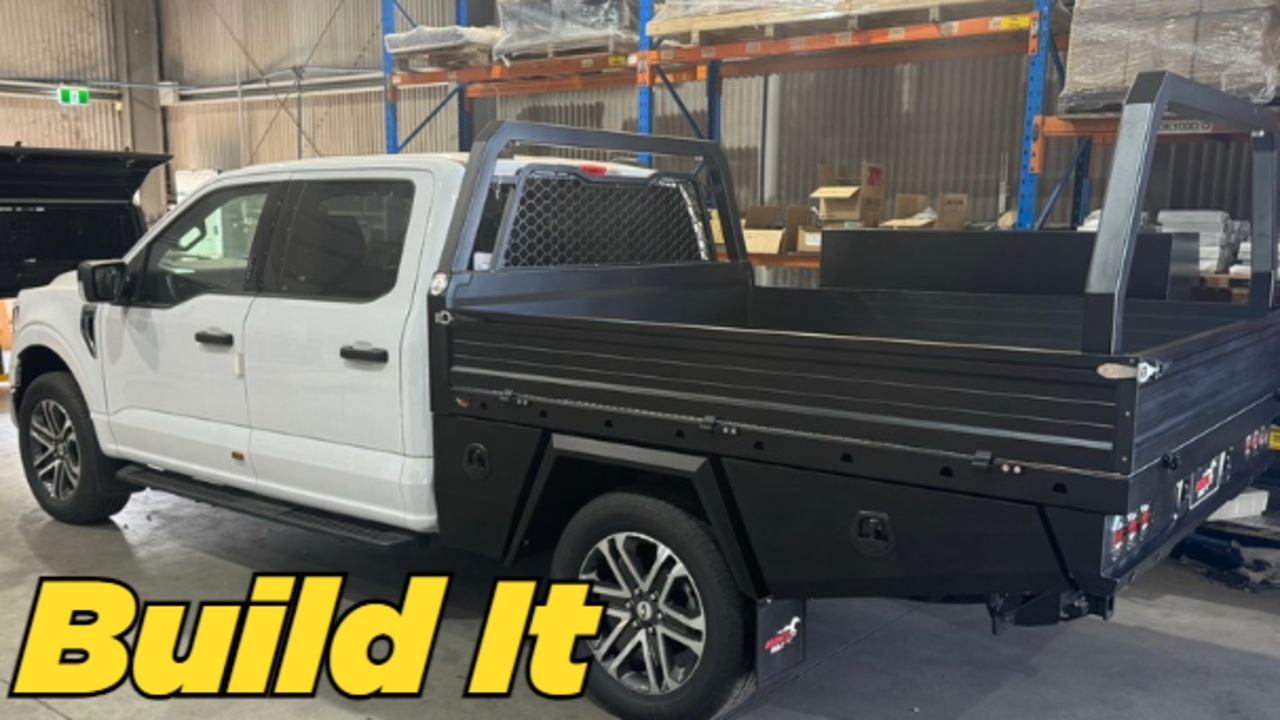

How to Build: Ford F150, Dual Cab

Knowby

How to Build: Ford F150, Dual Cab

1

Step 1 of 8

Tray Mounts

2

Step 2 of 8

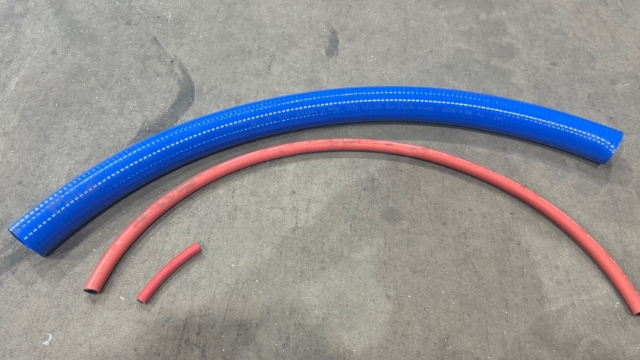

<p><strong>Fuel System</strong></p><ul>
<li><a href="https://knowby.show/957b612e-88d3-4ae7-b0af-70bd811b99be" title="">Prepare Fuel Filler hoses</a></li>
</ul>

Fuel System

Prepare Fuel Filler hoses

3

Step 3 of 8

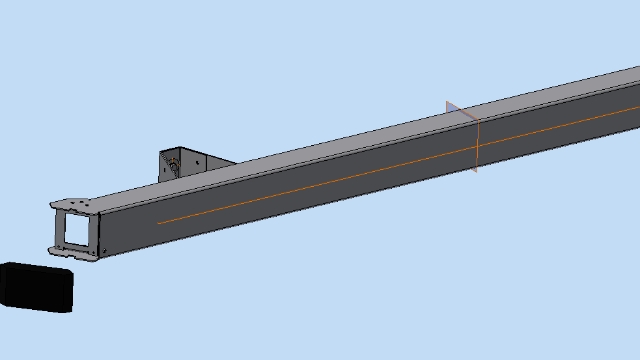

<p><strong>Radar Bar</strong></p>
<ul>
<li><a href="https://knowby.show/4e451158-a4b9-4f3a-a4e7-24ddbdffed2f">How to prepare the Ford F150 Radar Bar</a></li>
</ul>

Radar Bar

How to prepare the Ford F150 Radar Bar

4

Step 4 of 8

Wiring Harness

Part Number: WHA041

5

Step 5 of 8

Camera Bracket

Part Number: CB005

6

Step 6 of 8

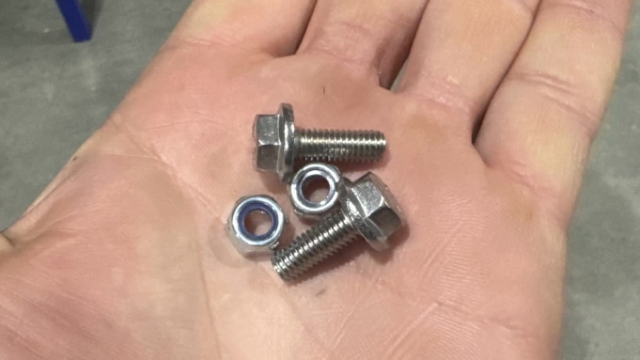

<p>Make sure you include M6 bolts and the Nyloc nuts with the camera bracket</p>

Make sure you include M6 bolts and the Nyloc nuts with the camera bracket

7

Step 7 of 8

Reversing Sensors

Part Number: SBV124

8

Step 8 of 8

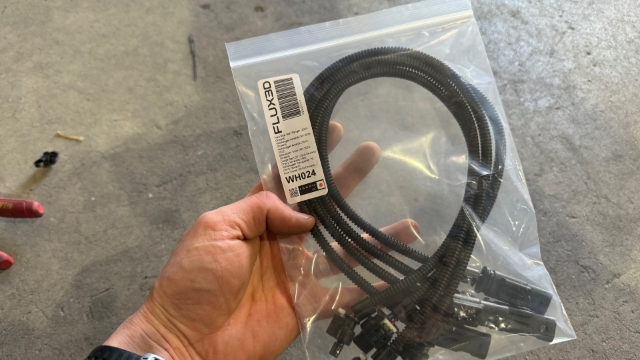

<p><strong>Reversing Sensor Extension Harness</strong></p>
<ul>
<li>Part Number: WH024</li>
</ul>

Reversing Sensor Extension Harness

Part Number: WH024
