Fuel Prep, F150 SHORT or LONG Wheelbase
1
Step 1 of 5

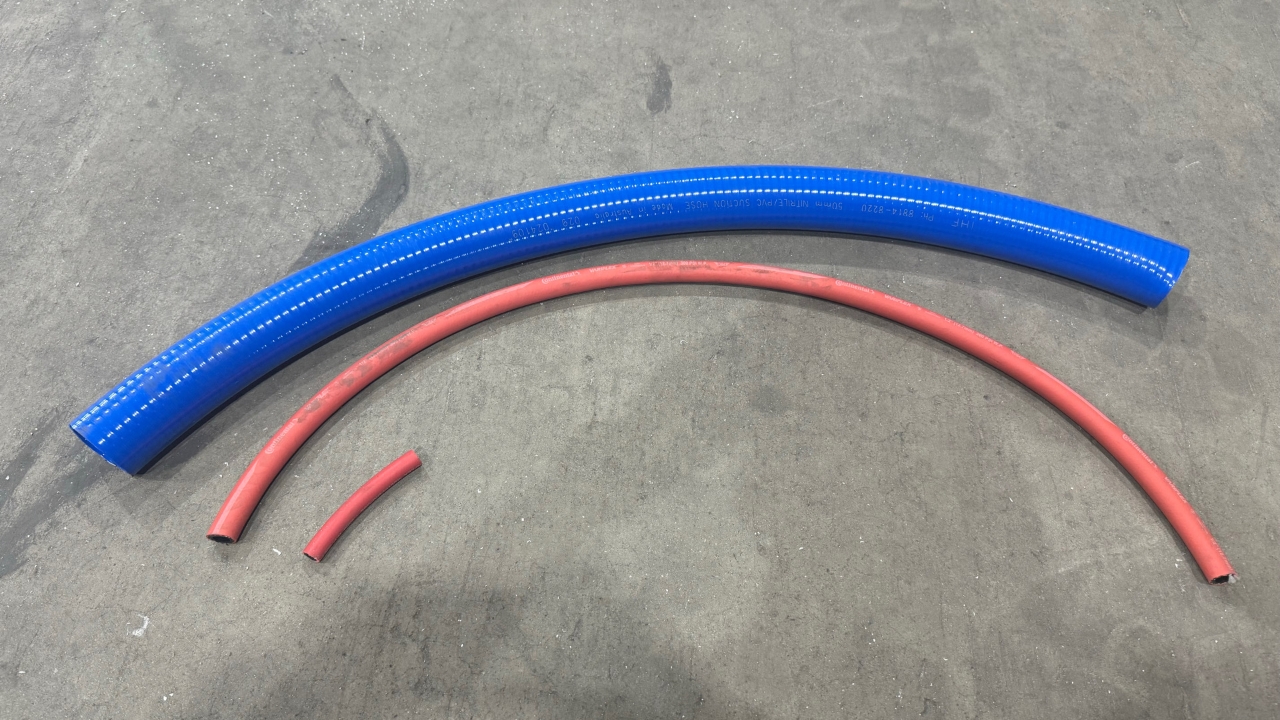

Hoses

  • Blue 50mm @ 1000mm
  • Red, 12.7mm @ 1000mm
  • Red, 7.9mm @100mm
2
Step 2 of 5
<p>Clamps</p> <ul> <li>2 x 58-61mm (651-597)</li> <li>2 x 12-22mm (651-595)</li> </ul>

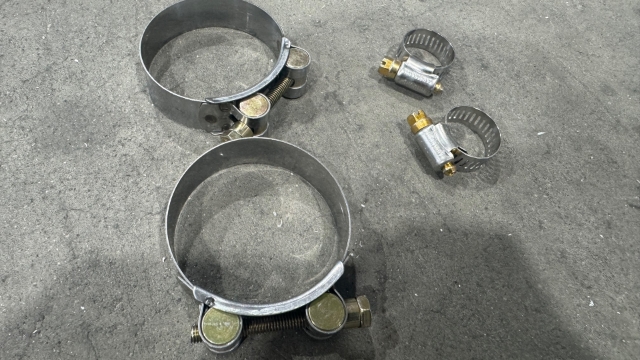

Clamps

  • 2 x 58-61mm (651-597)
  • 2 x 12-22mm (651-595)
3
Step 3 of 5
<p>Elbow reducer</p>

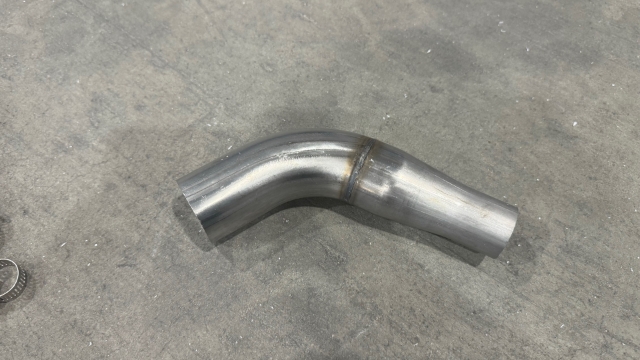

Elbow reducer

4
Step 4 of 5
<p><strong>Brass fittings</strong></p> <ul> <li>Male elbow, 1/2 x 1/4 BSP ( 650-430)</li> <li>Hose barb, 5/16 x 5/16. (650-391)</li> <li>Hose barb, 1/2 x 3/8 (650-424-03)</li> </ul>

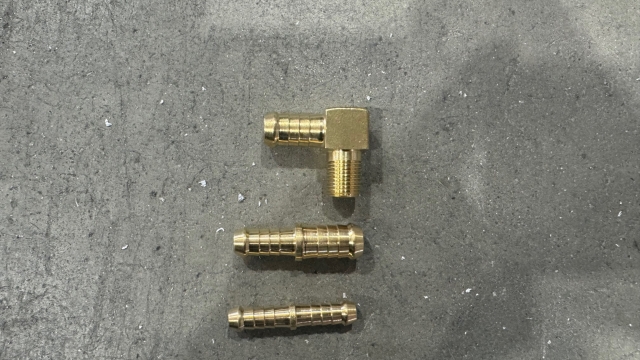

Brass fittings

  • Male elbow, 1/2 x 1/4 BSP ( 650-430)
  • Hose barb, 5/16 x 5/16. (650-391)
  • Hose barb, 1/2 x 3/8 (650-424-03)
5
Step 5 of 5

Assemble hoses and fit to the Tray
