Mounts Layout: Ford F150, LONG Wheelbase

Knowby

Mounts Layout: Ford F150, LONG Wheelbase

1

Step 1 of 4

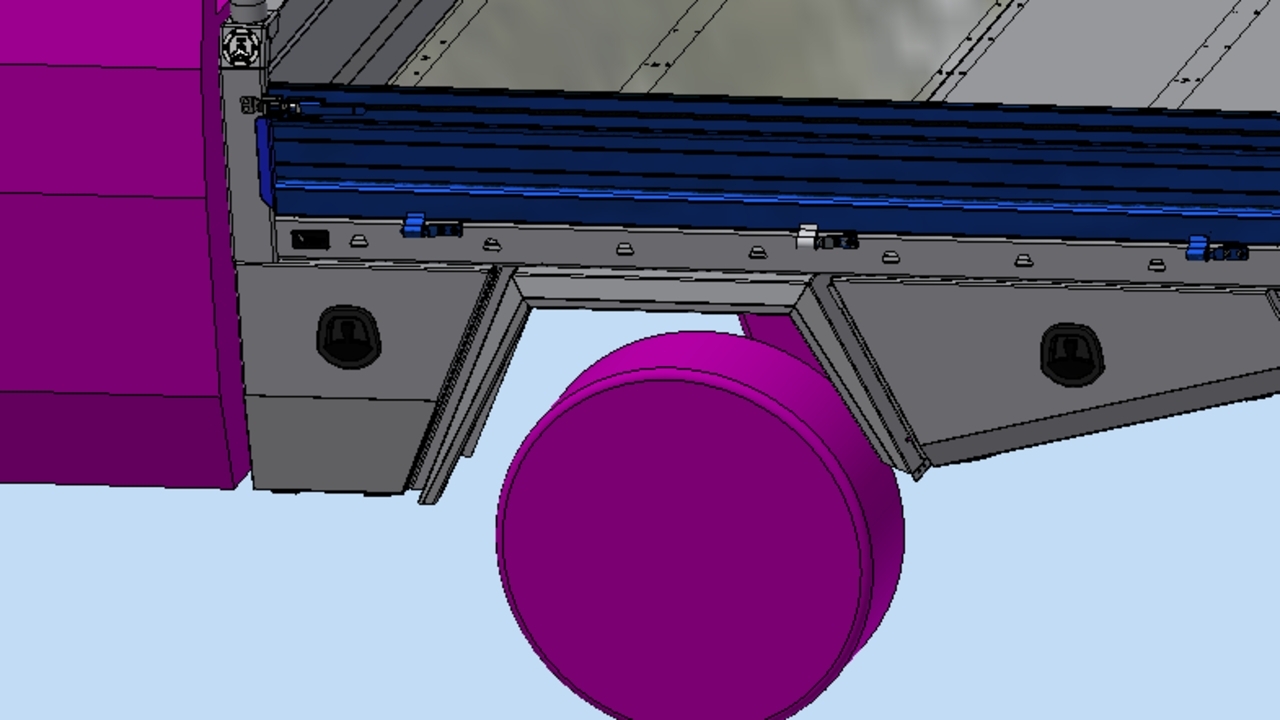

Should look like this when done

2

Step 2 of 4

<p><strong>Front Mounts, Both sides</strong></p>
<p>Laser Etched "B13"
In Front Holes</p>

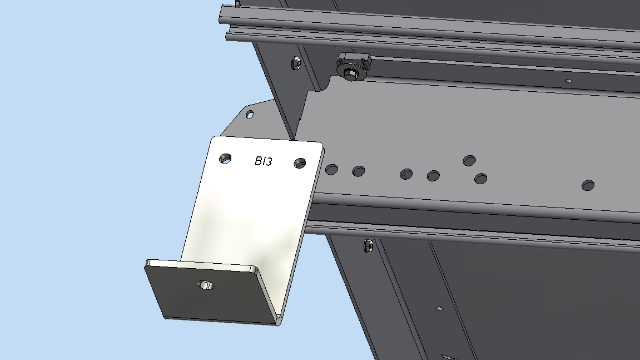

Front Mounts, Both sides

Laser Etched "B13" In Front Holes

3

Step 3 of 4

<p><strong>Middle Mounts, Both sides</strong></p>
<p>Laser Etched "C2"</p>
<p>1114mm from front of first mount, to front of this mount</p>

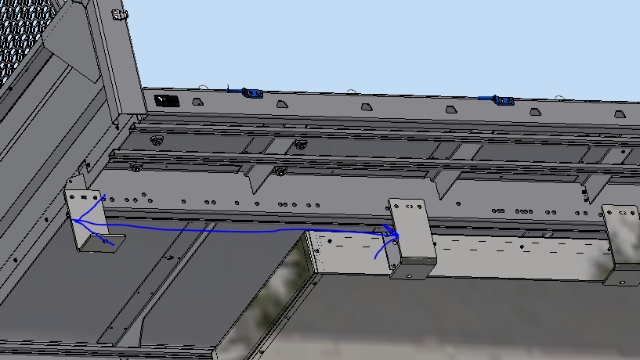

Middle Mounts, Both sides

Laser Etched "C2"

1114mm from front of first mount, to front of this mount

4

Step 4 of 4

<p><strong>Back Mounts, Both sides</strong></p>
<p>Laser Etched "C2"</p>
<p>1846mm from front of first mount, to front of this mount</p>

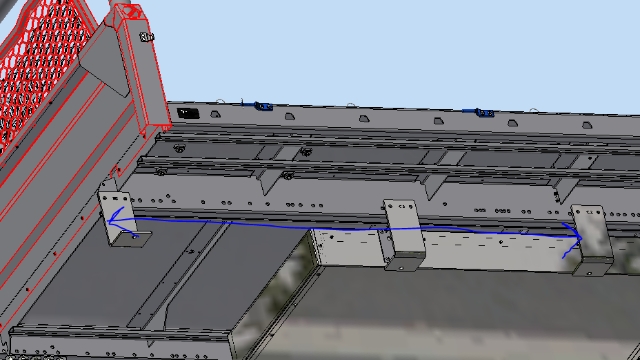

Back Mounts, Both sides

Laser Etched "C2"

1846mm from front of first mount, to front of this mount
