Attach and operate the feedout trailer

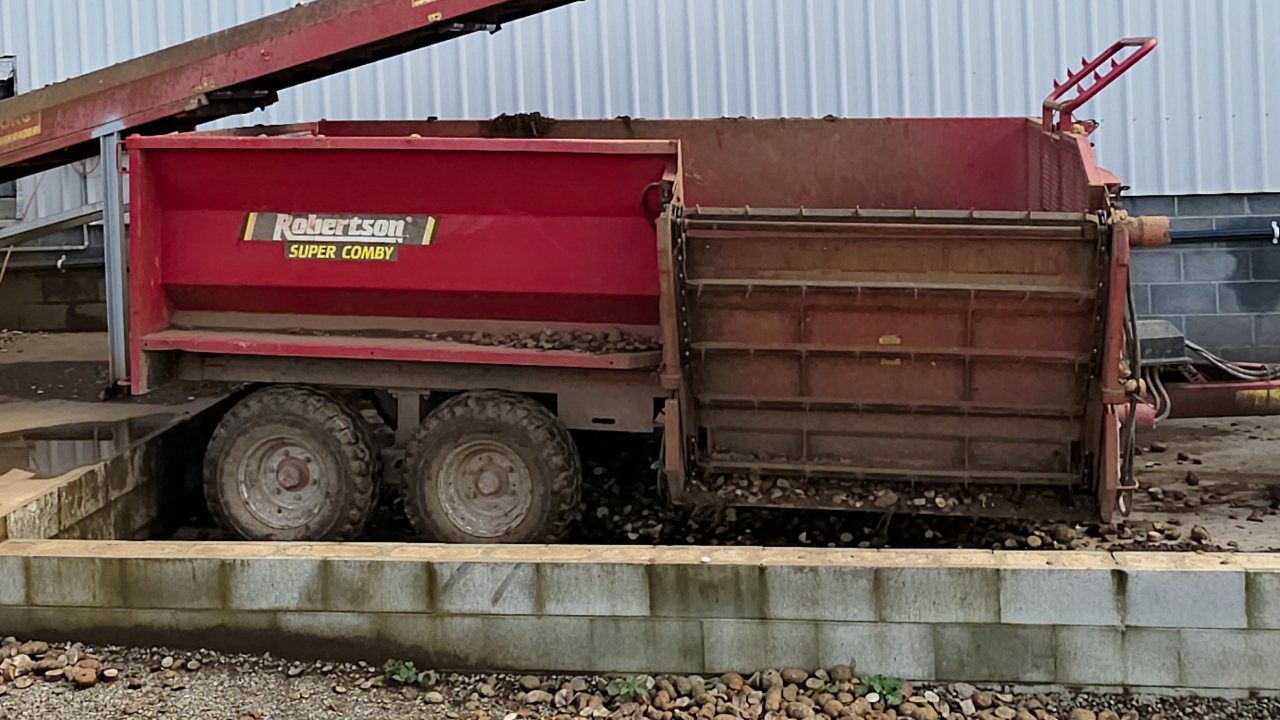

Operating the Robertson combi feed trailer
Operating the Robertson combi feed trailer
1
Step 1 of 22

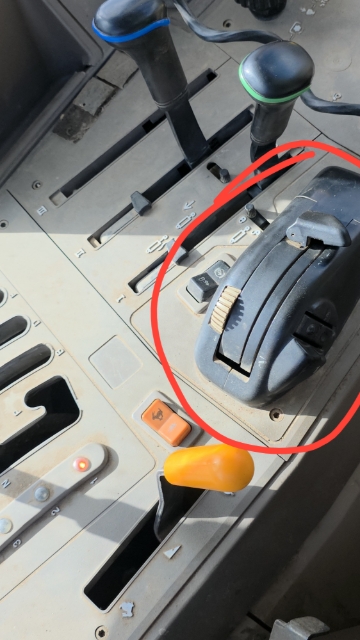

<p>Refer to instruction on how to operate John Deere Tractor: <a target="_blank" rel="noopener noreferrer nofollow" href="https://knowby.show/fc98f04b-4360-4daf-855d-9560ea1f2865">https://knowby.show/fc98f04b-4360-4daf-855d-9560ea1f2865</a></p><p></p><p>This operates the hitch.</p>

Refer to instruction on how to operate John Deere Tractor: https://knowby.show/fc98f04b-4360-4daf-855d-9560ea1f2865

This operates the hitch.

2
Step 2 of 22

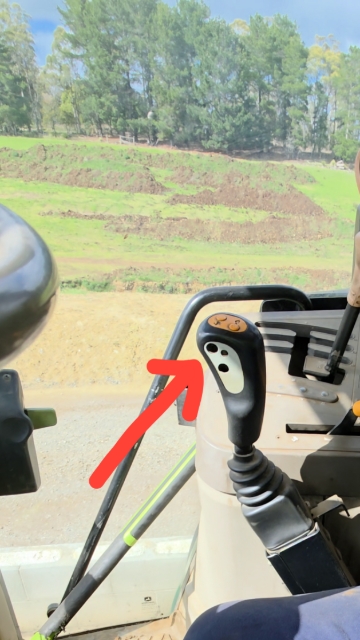

<p>To operate the hydraulic drawbar pin - the switch is on the front of the loader lever </p>

To operate the hydraulic drawbar pin - the switch is on the front of the loader lever

3
Step 3 of 22

Reverse tractor line up drawbar and the pin. Activate switch in Step 2 to lock pin through drawbar.

4
Step 4 of 22
Put power cable through the back window.
5
Step 5 of 22
Next step, there are four hydraulic hoses. There are two smaller hoses and two larger hoses.
6
Step 6 of 22

Plug the hose in with the coller, the steel joiner

7
Step 7 of 22
It goes in the bottom right. The next hose, the other large hose with no join.
8
Step 8 of 22

It goes in the top right, have to push hard.

9
Step 9 of 22

Small hose without the block is next, plain hose.

10
Step 10 of 22

It goes in the bottom left.

11
Step 11 of 22

Next the last hose with the block goes in the Top right. Some hoses have to be pushed hard.

12
Step 12 of 22

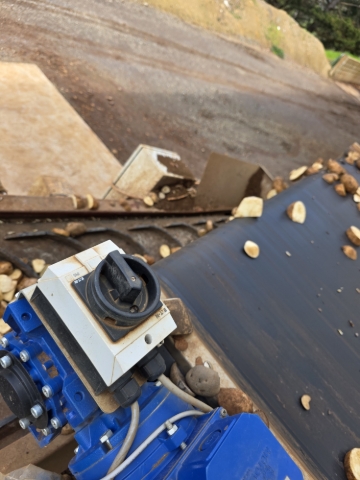

<p>Switch the conveyor off before leaving to ensure potatoes stop being unloaded. </p>

Switch the conveyor off before leaving to ensure potatoes stop being unloaded.

13
Step 13 of 22
Back into tractor.
14
Step 14 of 22

Plug in the electrical plug, this connects the controls.

15
Step 15 of 22

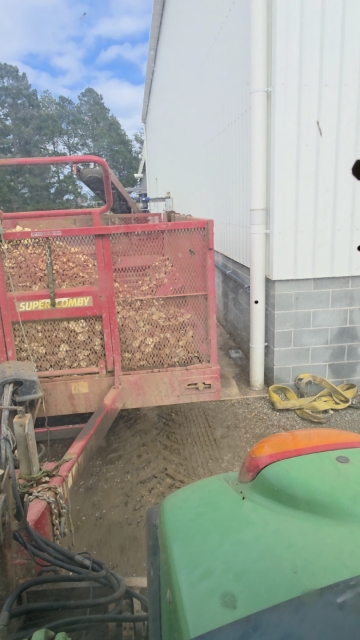

<p>Drive to area you want to unload, ensure you are clear of the shed and pipes when exiting the bay </p>

Drive to area you want to unload, ensure you are clear of the shed and pipes when exiting the bay

16
Step 16 of 22

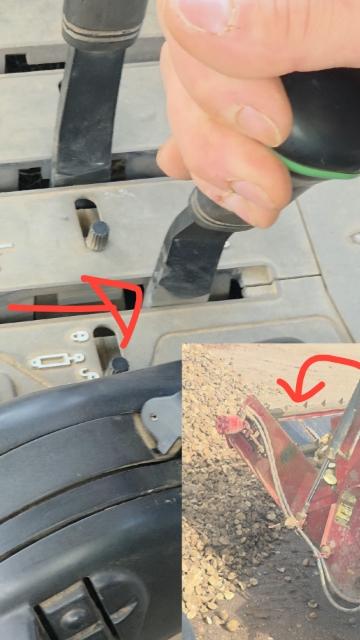

<p>Once at the feed area, Green lever rearward drops the feed elevator</p>

Once at the feed area, Green lever rearward drops the feed elevator

17
Step 17 of 22

Lock the blue lever back to start the elevator. Drive forward slowly to unload

18
Step 18 of 22

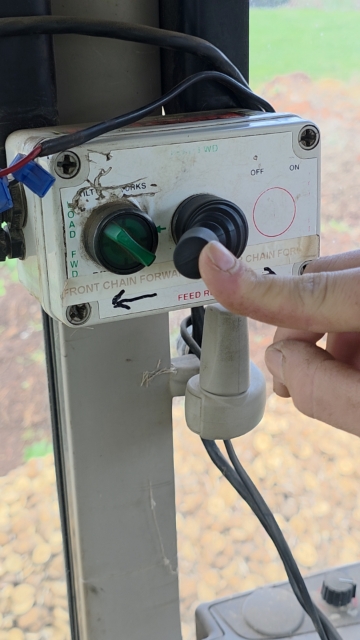

<p>Toggle this switch forward to activate side conveyor and push feed onto conveyor </p>

Toggle this switch forward to activate side conveyor and push feed onto conveyor

19
Step 19 of 22

Toggle to the rear pushes feed from the back. Repeat the process until all feed is gone

20
Step 20 of 22

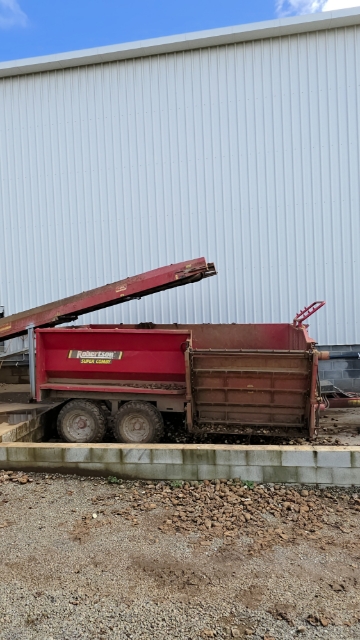

<p>Return the trailer to the conveyor area. Note the front third of the trailer is where the conveyor will unload. </p>

Return the trailer to the conveyor area. Note the front third of the trailer is where the conveyor will unload.

21
Step 21 of 22

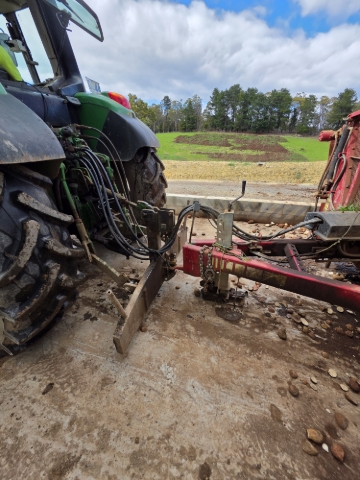

<p>Return the rear hitch and the front end loader to the ground</p>

Return the rear hitch and the front end loader to the ground

22
Step 22 of 22
<p>Important- Turn the conveyor back on. </p>

Important- Turn the conveyor back on.
