Starting and operating the John Deere Tractor
Starting and operating the John Deere Tractor
1
Step 1 of 11

Before operation, driver must be trained, and familiar with Tractor SOP found here. (Insert link)

This Tractor is fitted with an isolater switch. Switch this to the left to activate.

2
Step 2 of 11

Once in driver seat, adjust steering wheel to suit, ensure forward reverse selector is in neutral and large gear selector would be in P for park.

3
Step 3 of 11

Pull the steering wheel down, put on the clutch and turn key to start

4
Step 4 of 11

Push handbrake down, on the left of yout seat.

5
Step 5 of 11

This lever activates the rear hitch - make sure it is off the ground by sliding the lever back.

6
Step 6 of 11

This lever operates the front end loader - pull it back to lift loader off the ground.

7
Step 7 of 11

Push the clutch in with your foot, selector to forward, select gear range C for general around the yard use.

8
Step 8 of 11

This is the hand throttle,

9
Step 9 of 11

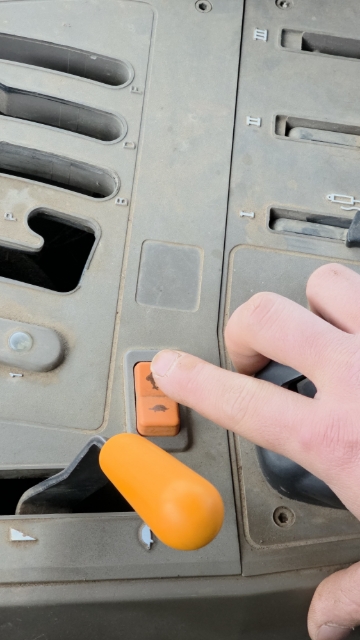

<p>This shift the gears between 1-4 - you do not need the clutch for these ones. </p>

This shift the gears between 1-4 - you do not need the clutch for these ones.

10
Step 10 of 11

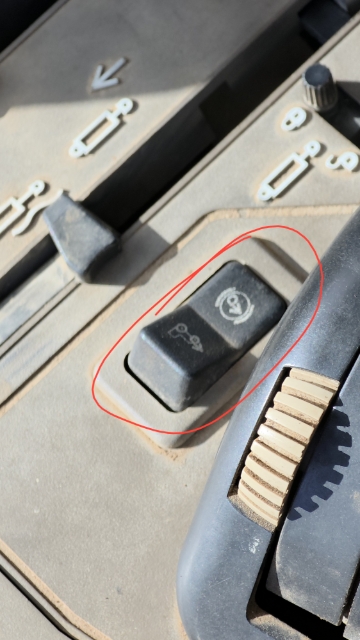

<p>Four wheel drive switch. If needed, toggle forward to activate four wheel drive. </p>

Four wheel drive switch. If needed, toggle forward to activate four wheel drive.

11
Step 11 of 11

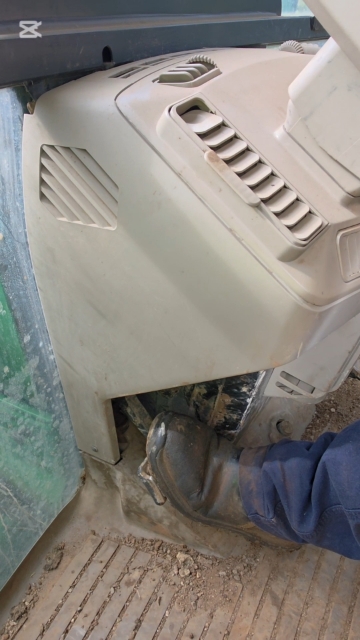

<p>Release clutch and you are good to go.</p>

Release clutch and you are good to go.
