Fill

1

Step 1 of 6

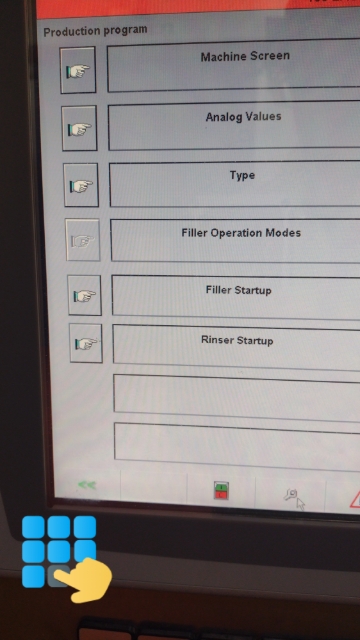

Go to filler start up page

2

Step 2 of 6

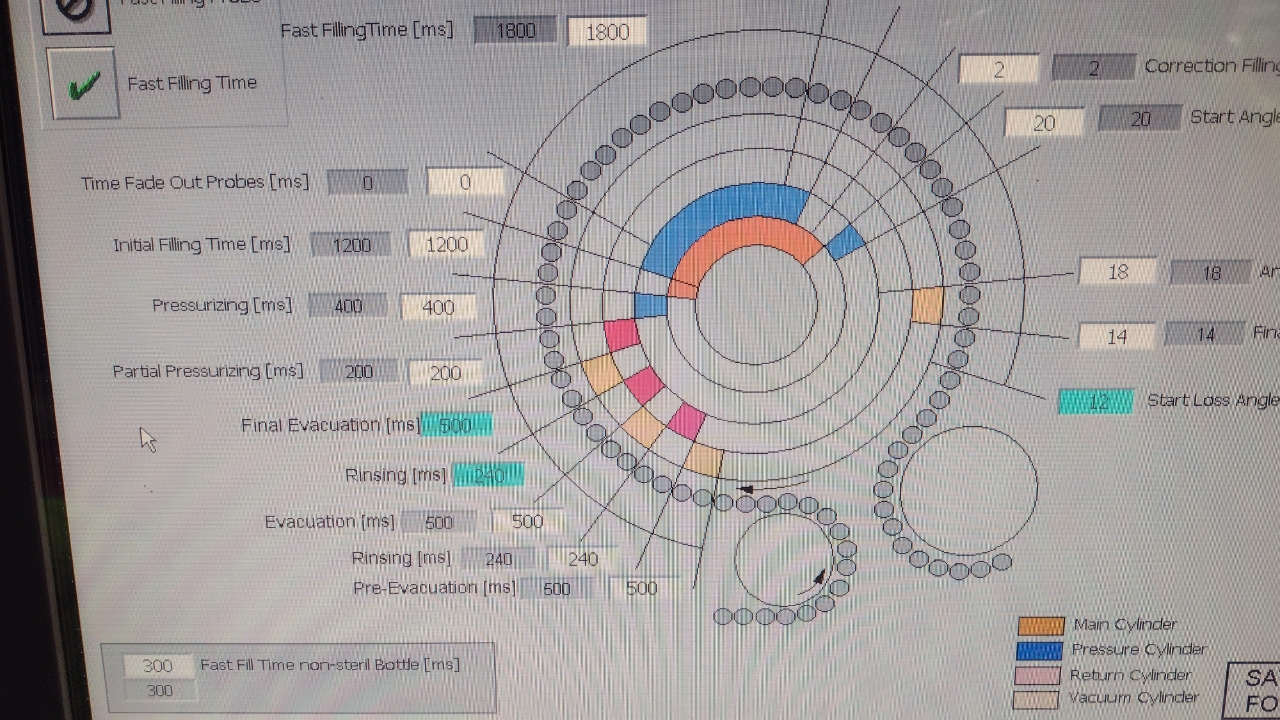

Set parameters as per format sheet

3

Step 3 of 6

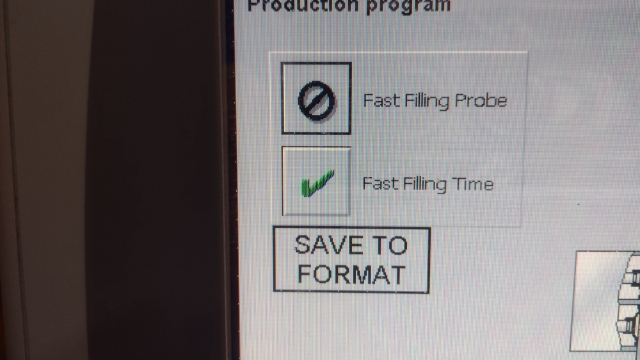

Set to Fast fill time for bottles with large neck.

Probe fill is used for bottles with long thin necks.

4

Step 4 of 6

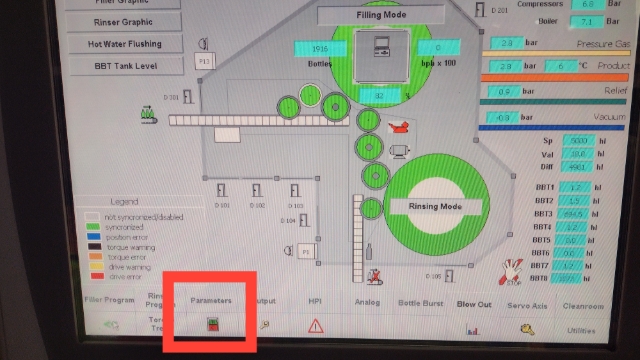

Go back to home page then select Parameters page.

5

Step 5 of 6

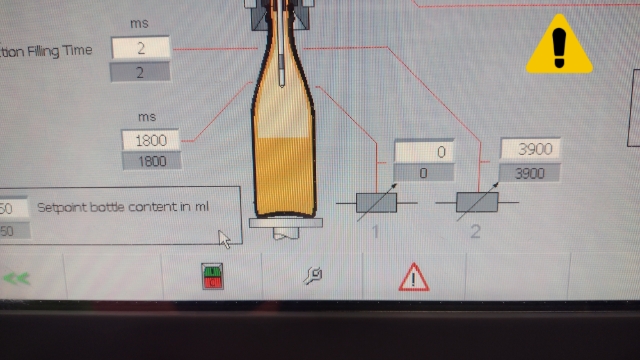

For Fast fill time, probe 1 should be set to 0. Probe 2 should be set to adjust level or product.

6

Step 6 of 6

Once set complete run bottle through and check. Adjust Probe 2 if level needs changing.
