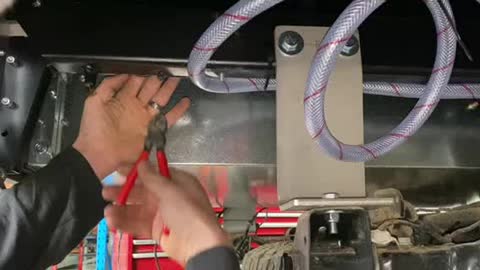

Trim zip tie holding harness to tray Driv side

Connect pass side

(removed the stickers)

Identify the license plate light LED Harness

Located passenger side

Identify the original licence plate lights from the Tub

Some will have a bulb (as shown), remove it.

Or, Others will be LED (so no bulbs) In this case you will need to manually wire it (cut-join-solder-insulation)

Plug the supplied harness into where the bulb was.

Identify and plug

There is only 50% chance you will plug it in the right way the first time.

Check this by turning on park lights. If it works, great! If it doesn't, unplug then rotate the plug 180 degrees.

Now it should work.

With a 2nd person, Check all light functions

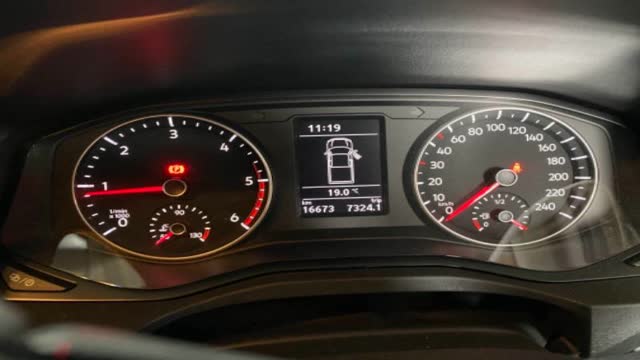

Make sure there are no warning lights on dash.

(in the above photo, left side light is the Parking Brake, and Right side is the seat belt light - this is all normal)

Zip tie neatly
