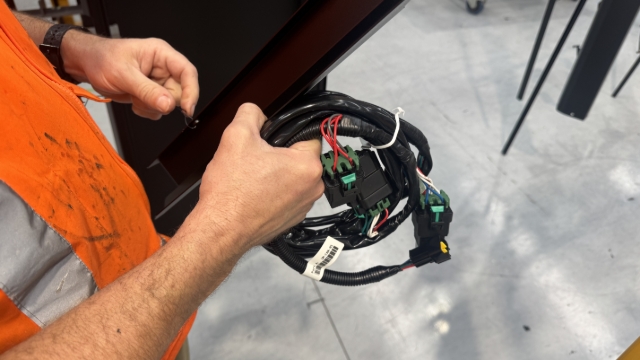

Retrieve CLK loom from staging trolley matching job detail.

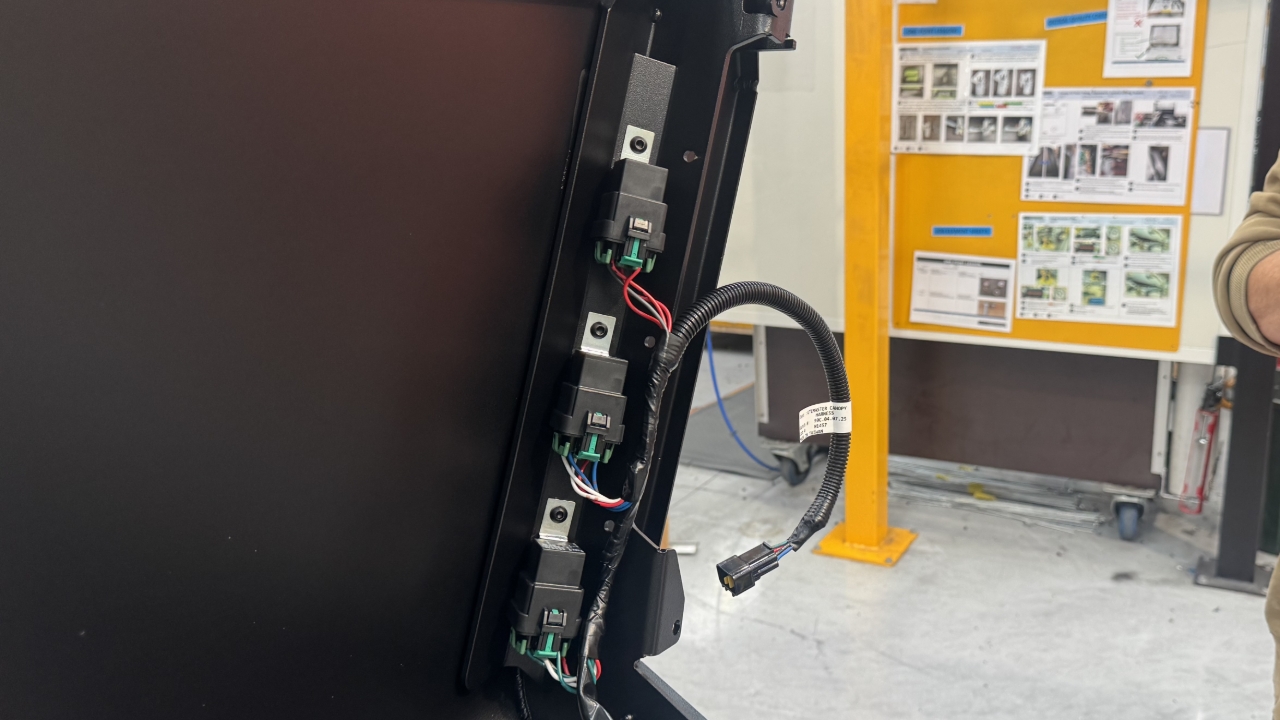

Using M6X12 loctite bolts and impact driver, attach relays to Canopy pillar with three holes as shown in video.

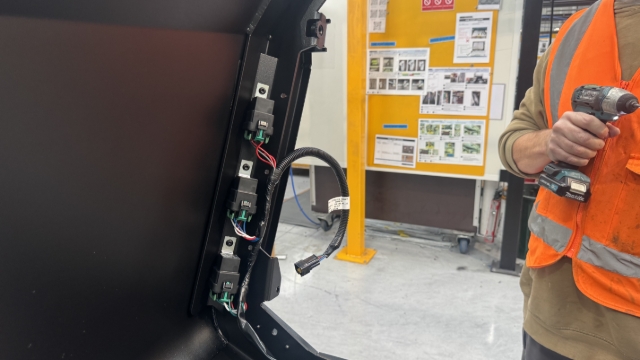

Ensure the relays are pointing in this direction and loom wiring sits to the right.

Retrieve CLK loom cover from flight rack with matching job tag, ensure there are no defects before attaching, using 2x M6x12 loctite bolts and impact drive as shown in video.

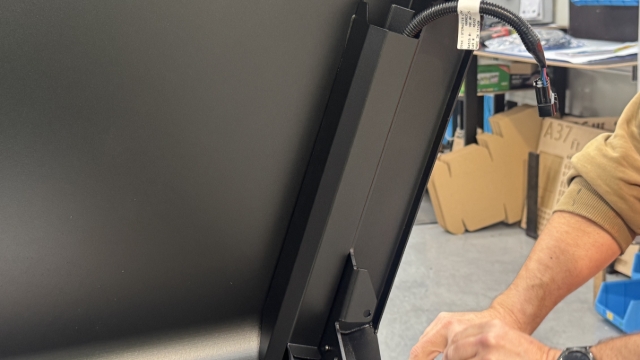

This is how it looks when attached, ensure the loom is not jammed behind cover.

Use one zip tie in this location to attach loom to canopy body.

At rear end of canopy body, use twisty tie to connect loom. When canopy is turned over, on final assembly station, the team member responsible for connecting CLK to the doors will place zip ties where needed.

Last twisty tie placed at left hand side pillar, to hold loom in place, until canopy is moved to finishing station.

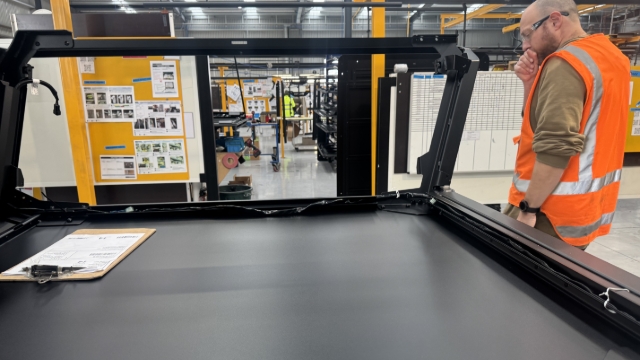

Final layout of loom connected to MK4 canopy body.
