Fuel Filler, Next-Gen Ranger, Extra Cab
1
Step 1 of 8

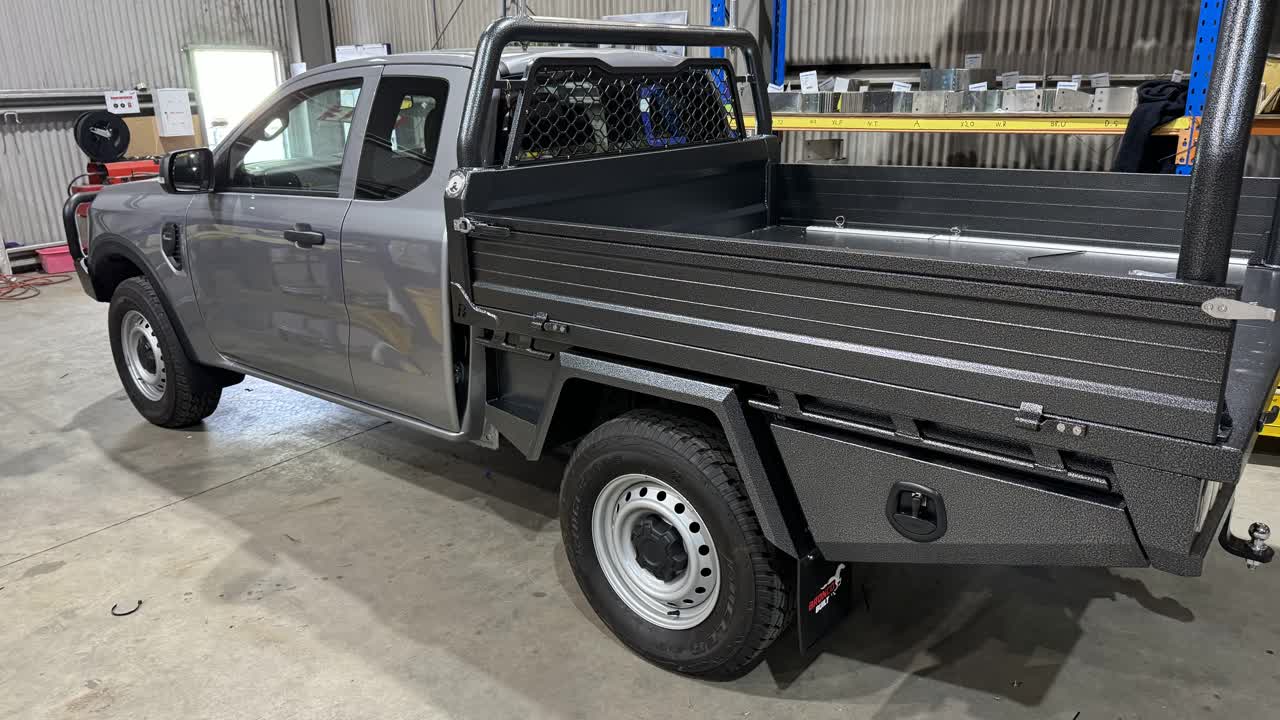

It will look like this when complete

2
Step 2 of 8

Supplied with

  • Blue hose @ xxxmm
  • Elbow reducer
  • Breather hose plugged
3
Step 3 of 8
<p><strong>Tools Required</strong></p> <ul> <li>Sockets: 7mm</li> <li>Zip Ties</li> <li>Wire Cutters</li> </ul>

Tools Required

  • Sockets: 7mm
  • Zip Ties
  • Wire Cutters
4
Step 4 of 8
<p><strong>Pro Tip</strong> The most common mistake when fitting a fuel filler, is a kink. Whether it is the main delivery hose of a breather, it must not have a kink. Take particular care.</p>

Pro Tip The most common mistake when fitting a fuel filler, is a kink. Whether it is the main delivery hose of a breather, it must not have a kink. Take particular care.

5
Step 5 of 8

Identify the original filler neck

6
Step 6 of 8

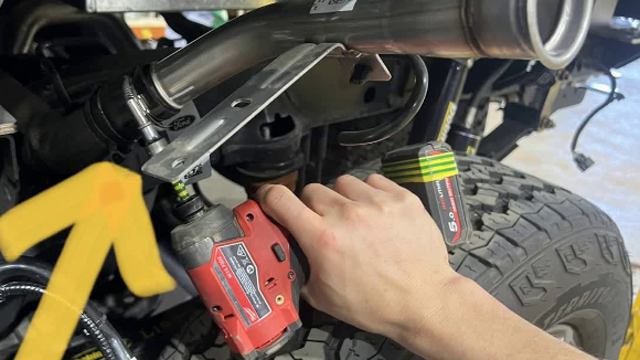

<p>7mm socket to remove the hose clamp for the filler neck</p>

7mm socket to remove the hose clamp for the filler neck

7
Step 7 of 8

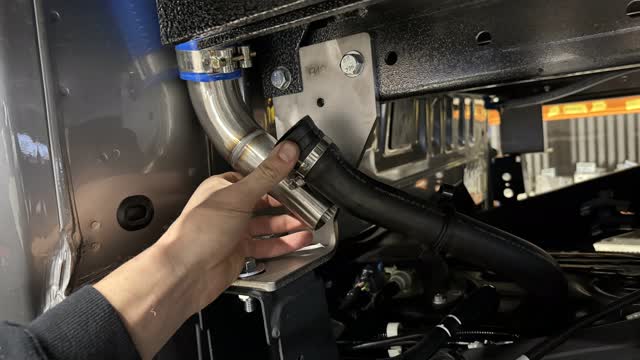

<p>Connect the fuel hose to the stainless reducer. Ensure the hose is not kinked.</p>

Connect the fuel hose to the stainless reducer. Ensure the hose is not kinked.

8
Step 8 of 8

It should look like this
