CANOPY, PINTLE HINGE ASSEMBLY

Knowby

CANOPY, PINTLE HINGE ASSEMBLY

1

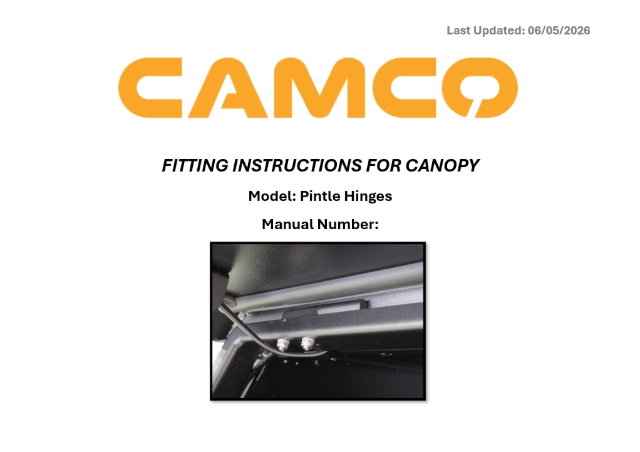

Step 1 of 8

2

Step 2 of 8

Contents (Click to view)

STEP 3: Components List

STEP 4: Tools List

STEP 5: Pintle Hinge Assembly

STEP 8: QA Sheet

3

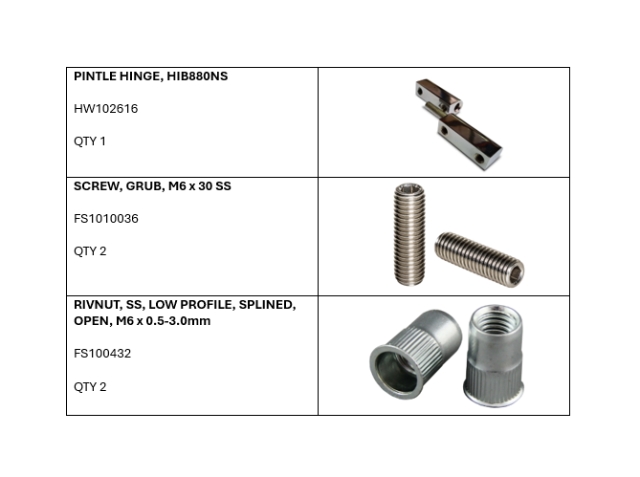

Step 3 of 8

<p></p>

4

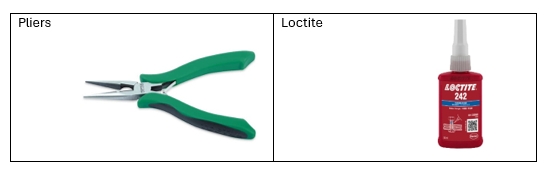

Step 4 of 8

<p></p>

5

Step 5 of 8

Apply Loctite to the grubscrew and fit it to the female hinge side.

6

Step 6 of 8

Using the block jig make sure the grubscrews are at the correct measurement.

Fit the rivnut on top ensuring that the grubscrews dont go any lower.

7

Step 7 of 8

Tighten the rivnut to the grubscrew.

8

Step 8 of 8
