Contents

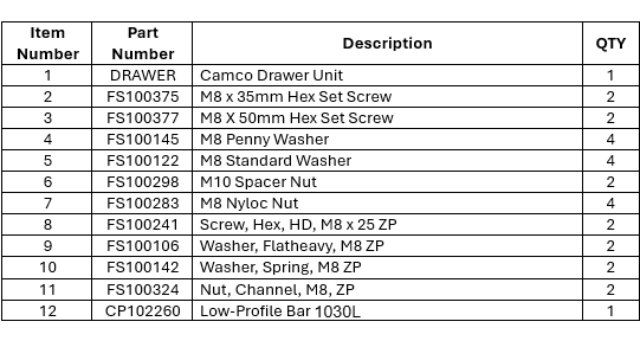

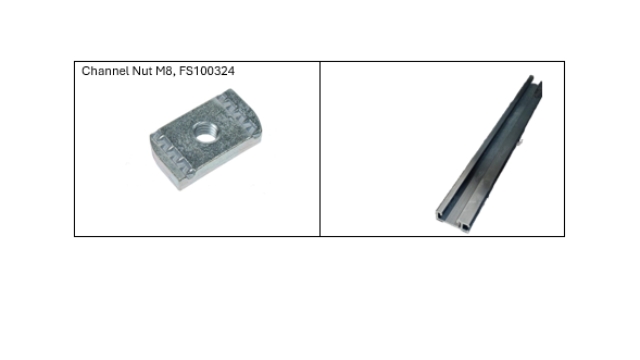

Component List

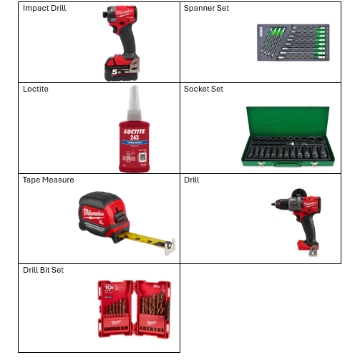

Tool List

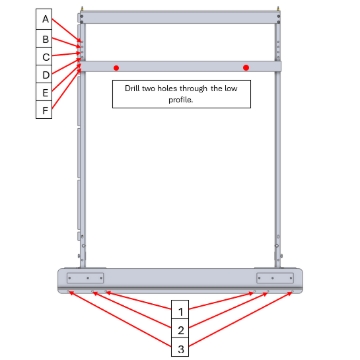

Bolt/drill holes for each vehicle.

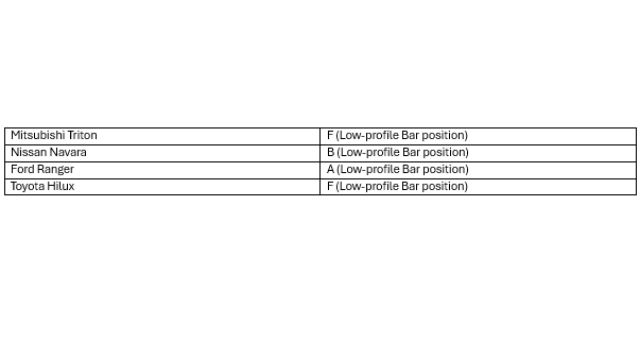

Use the information in the step above to see which holes each vehicle uses.

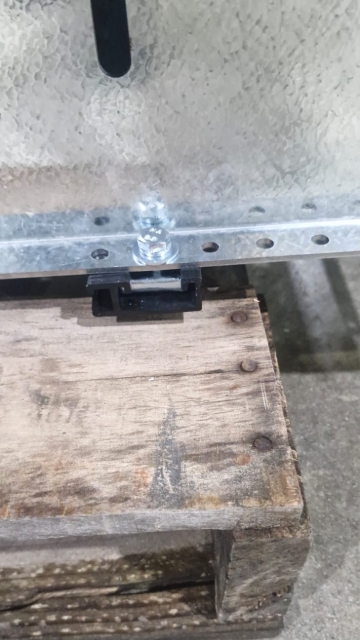

Before fitting the drawer, install the low-profile bar into the correct mounting hole for your specific vehicle model, as shown in the diagram in Step 7.
Lift the drawer into the wellside of the ute. This can be done using a workshop forklift or with the assistance of four to six people to ensure the unit is lifted safely and correctly.

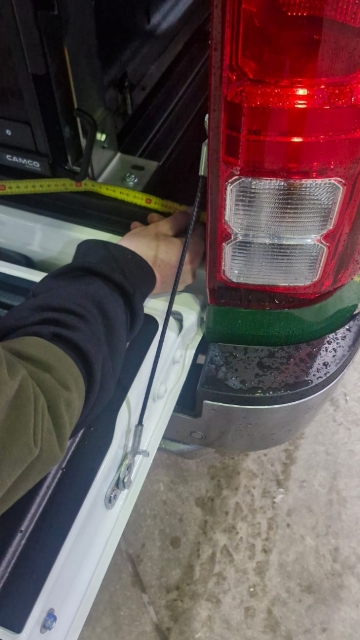

Measure both sides of the drawer to ensure the drawer is perfectly centred within the wellside.
Check that the tailgate closes fully with the drawer installed.
Drill the required mounting hole specific to the ute model being fitted.
Use a drill stop when drilling.

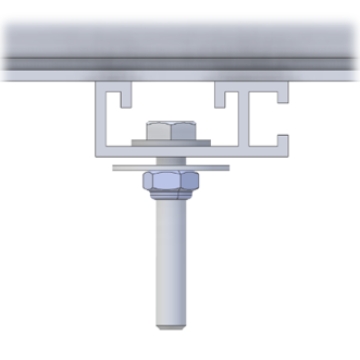

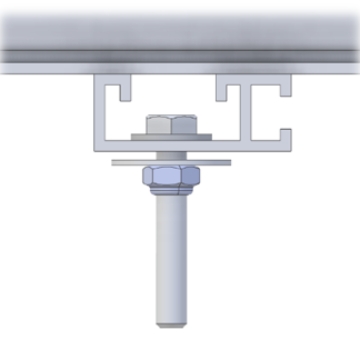

Use an M8 × 35 hex head bolt when a liner is fitted or an M8 × 25 hex head bolt when no liner is fitted, install an M8 flat washer on top and an M8 penny washer underneath, then secure everything with an M8 nyloc nut.
Tighten it to spec.
Drill a hole through the low-pro bar in the wellside, ensuring there are no obstructions underneath, and use a drill stop to control the drilling depth.
Use an M8 × 35 hex head bolt when a liner is fitted or an M8 × 25 hex head bolt when no liner is fitted, install an M8 flat washer on top and an M8 penny washer underneath, then secure everything with an M8 nyloc nut.
Tighten to spec.
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send back to
If the hard copy does not arrive, please contact us
0800 663 500
