Orbit - Table bracket mounting
Position and fixing of table / desk bracket
Position and fixing of table / desk bracket
1
Step 1 of 5

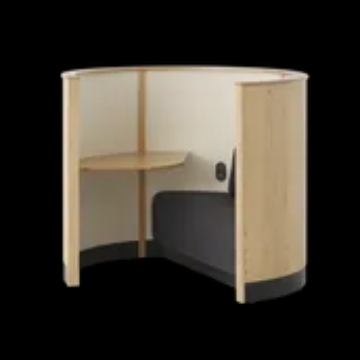

<p>Ensure unit is fully assembled :</p><ul><li>Adjustable feet wound all the way in</li><li>Unit is sitting level in place</li></ul><p><br></p><p>*Bracket mounts are all set spacing&nbsp;from the pillar - horizontally*</p><p>&nbsp;<br><br></p><p>Choose between one of the next four options.</p>

Ensure unit is fully assembled :

  • Adjustable feet wound all the way in
  • Unit is sitting level in place


*Bracket mounts are all set spacing from the pillar - horizontally*



Choose between one of the next four options.

2
Step 2 of 5

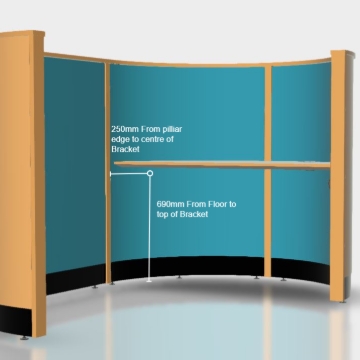

<p>Orbit Focus Desk</p><p><br></p><ul><li>4x - Table Brackets Per Top</li><li><span>690mm From Floor to top of Bracket&nbsp;</span><br></li><li><span><span>250mm From pillar edge to centre of Bracket</span><br></span></li></ul>

Orbit Focus Desk


  • 4x - Table Brackets Per Top
  • 690mm From Floor to top of Bracket
  • 250mm From pillar edge to centre of Bracket
3
Step 3 of 5

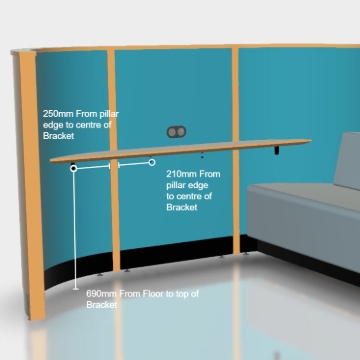

<p>Extended Focus Lounge</p><p><br></p><ul><li><span>4x - Table Brackets Per Top</span></li><li><div>690mm From Floor to top of Bracket&nbsp;<br></div></li><li><div>250mm From pillar edge to centre of Bracket ( On Curve )</div></li><li><div>210mm From pillar edge to centre of Bracket ( On Straight )&nbsp;</div></li></ul>

Extended Focus Lounge


  • 4x - Table Brackets Per Top
  • 690mm From Floor to top of Bracket
  • 250mm From pillar edge to centre of Bracket ( On Curve )
  • 210mm From pillar edge to centre of Bracket ( On Straight )
4
Step 4 of 5

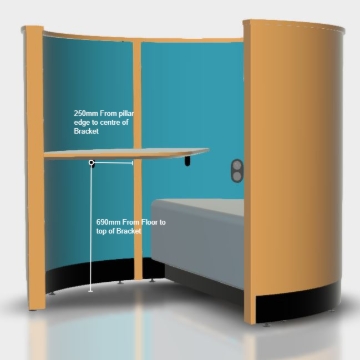

<p>Orbit Focus Lounge with desk</p><p><br></p><p>*Can be L/H - R/H Mounted, reference floor plan for details</p><p><br></p><ul><li><span>3x - Table Brackets Per Top</span></li><li><div>690mm From Floor to top of Bracket&nbsp;<br></div></li><li><div>250mm From pillar edge to centre of Bracket</div></li></ul>

Orbit Focus Lounge with desk


*Can be L/H - R/H Mounted, reference floor plan for details


  • 3x - Table Brackets Per Top
  • 690mm From Floor to top of Bracket
  • 250mm From pillar edge to centre of Bracket
5
Step 5 of 5

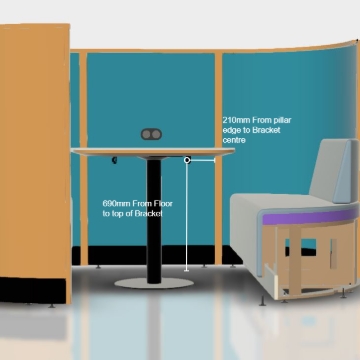

<p><span>Orbit Extended Lounge Desk</span></p><p><span><br></span></p><ul><li><span>690mm From Floor to top of Bracket</span><br></li><li><span>210mm From pillar edge to Bracket centre</span></li></ul>

Orbit Extended Lounge Desk


  • 690mm From Floor to top of Bracket
  • 210mm From pillar edge to Bracket centre
