Set machine up for milking

Knowby

Set machine up for milking

1

Step 1 of 13

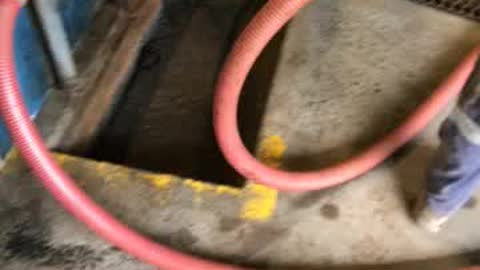

Take milk hose off wash line and Lay in front of vat

2

Step 2 of 13

Get water out of milk hose by walking along hose and lifting. Then attach to vat tighten with wrench and open vat tap

3

Step 3 of 13

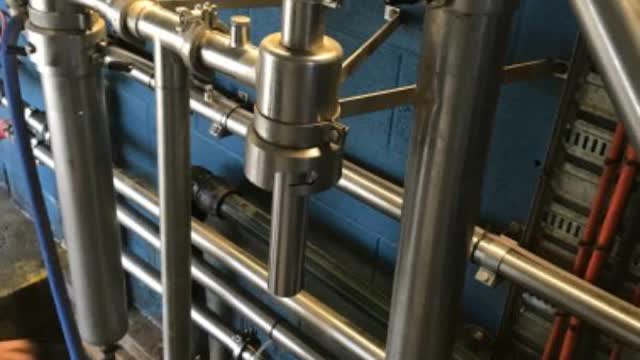

<p>Undo filter holders and put in holder.</p>

Undo filter holders and put in holder.

4

Step 4 of 13

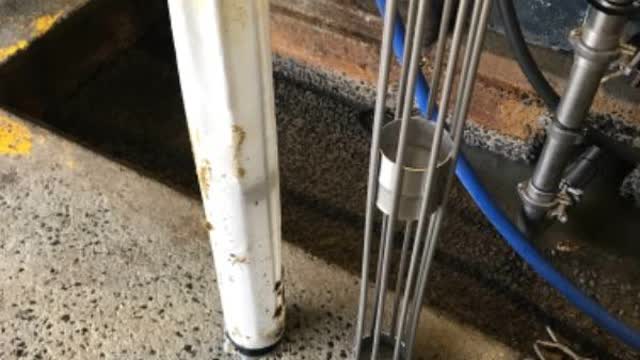

<p>Take filters out of their holder and slide sock filter off their frame place in bin</p>

Take filters out of their holder and slide sock filter off their frame place in bin

5

Step 5 of 13

Rinse out filter holders with water and get up inside line

6

Step 6 of 13

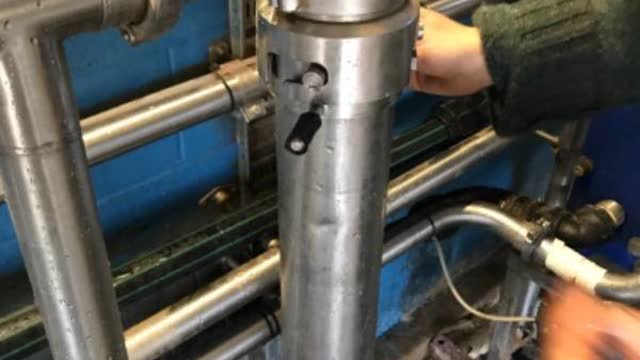

<p>Put new filter socks on the brackets re house the rubber and put back in position</p>

Put new filter socks on the brackets re house the rubber and put back in position

7

Step 7 of 13

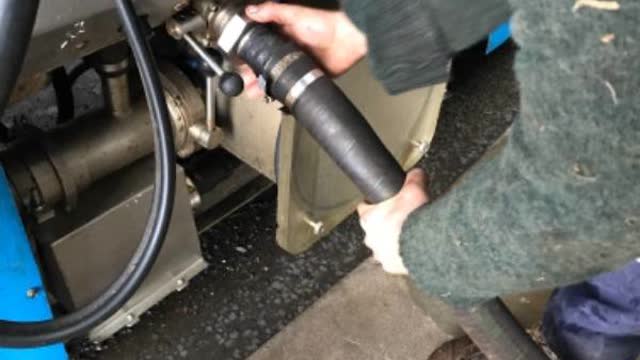

<p>Disconnect airline and wash hose and hang up</p>

Disconnect airline and wash hose and hang up

8

Step 8 of 13

Close washline and open milk line

9

Step 9 of 13

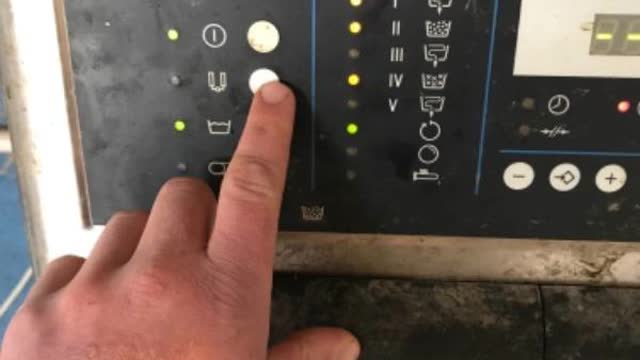

<p>Press the milking button on hygeinis</p>

Press the milking button on hygeinis

10

Step 10 of 13

Go to platform control panel hold the start button down for 5 secs and turn feed heads on

11

Step 11 of 13

Pull rope to start platform spinning and go around and take cups out of jetters

12

Step 12 of 13

Oil platform rails

13

Step 13 of 13

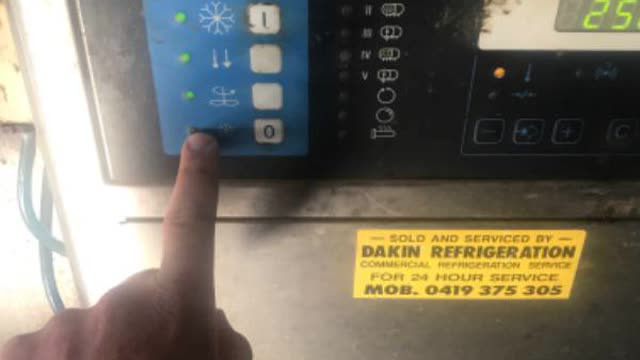

<p>Always make sure that the vat is on the on light should be flashing or on solid</p>

Always make sure that the vat is on the on light should be flashing or on solid
