Start-Up Procedure: Welding Robot

Follow to startup the Lincoln Electric Robot

Step 1 of 9

Follow the instructions for the correct startup procedure

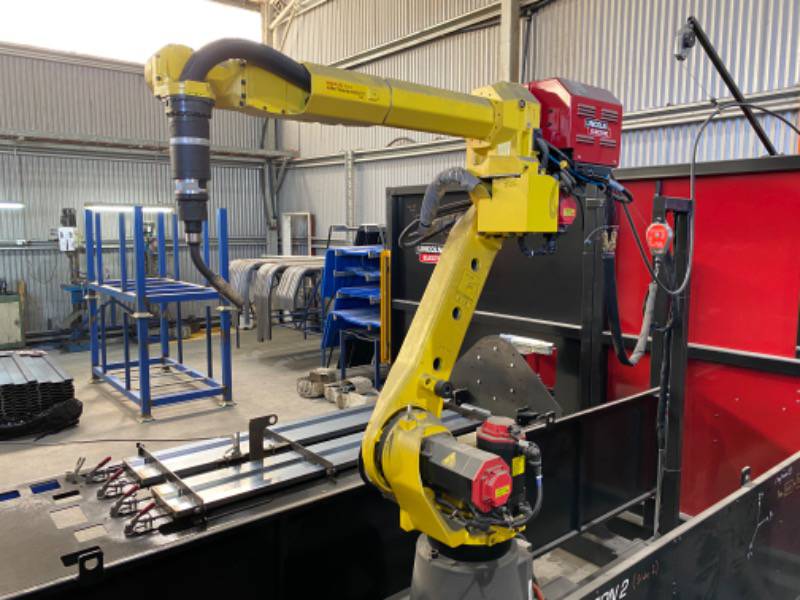

Name: 2018 Lincoln Electric Welding Robot A Asset ID: 5451 Location: 15 Whyalla

Step 2 of 9

Press the "CNTRL PWR" button, it will light up

Step 3 of 9

Turn on the main power switch of the controller

Step 4 of 9

Switch Welder power source to "ON

Step 5 of 9

Open the air valve

Note: The air compressor must be on and the system loaded with more than 90 PSI

Step 6 of 9

Turn on, to power the water cooler

Step 7 of 9

Open gas bottle

Step 8 of 9

Startup is complete

Step 9 of 9

Advice for the future: There is a QR code on the front of the robot controller. Using a smartphone, open your camera and it will automatically scan the QR code. These instructions will open automatically
