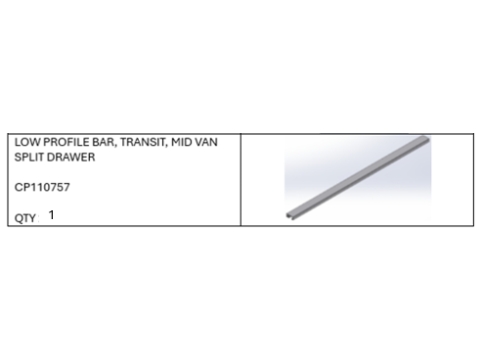

Components list
Tools List

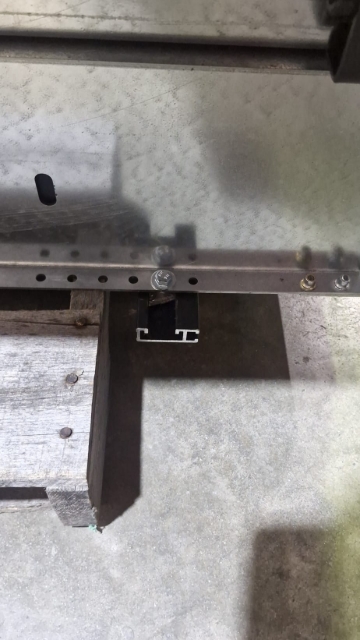

Fit the low-profile bar to the 2nd hole to the rear of the drawer using:
M8x20 bolts
M8 Washer
M8 Channel Nut

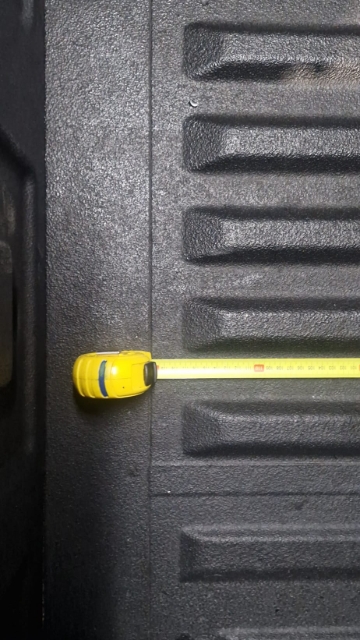

Measure 1200mm from the line at the rear of the wellside on the line shown.
Lift the drawer into the rear of the canopy as safely as possible, ensuring it does not damage anything.

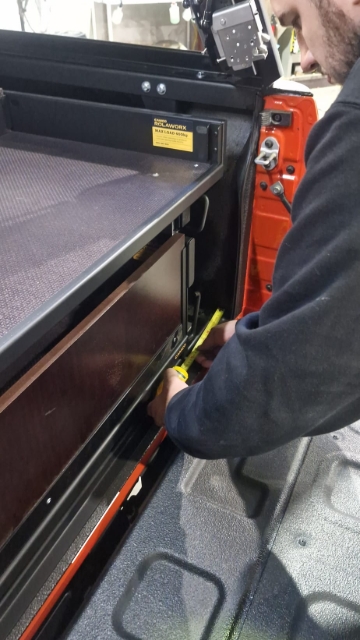

Measure each side and make sure the drawer is centred. It should be 115mm each side. and 15mm back from the white line.

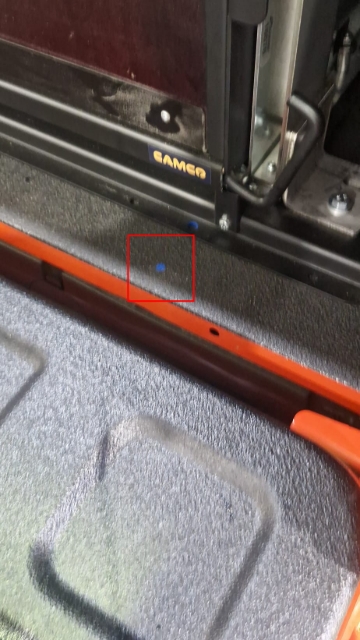

Mark the holes out then move the drawer back.
Drill through.

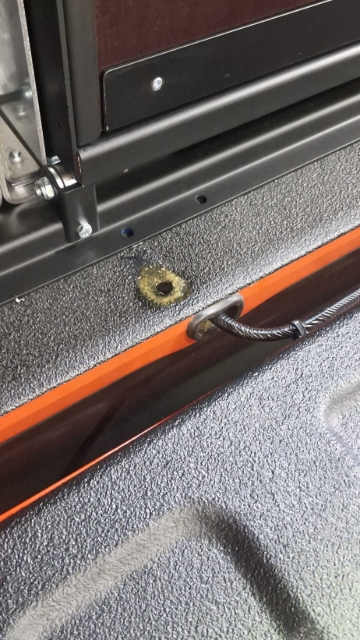

Ensure to use soft seal.

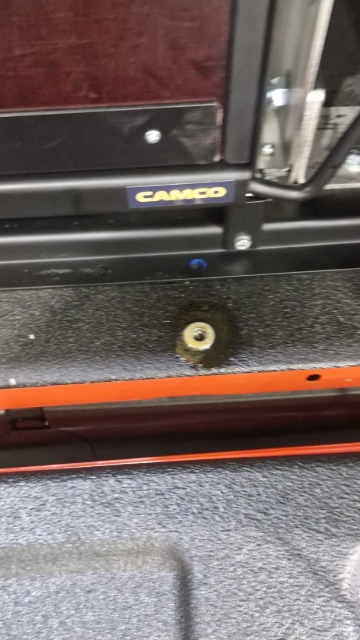

Insert as M8x1.25 Plusnut
Fit the front of the drawer using
M8 Bolts
M8 Plusnut

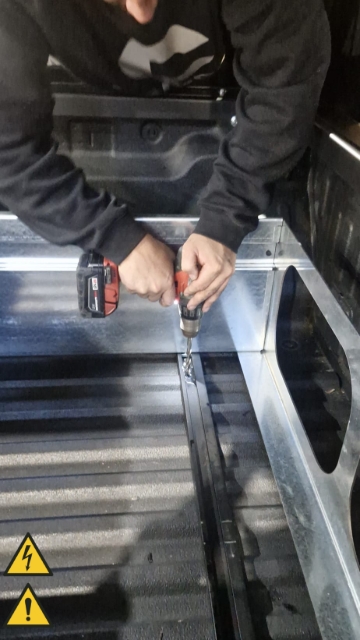

Before drilling through the rear, check underneath for wiring or any critical areas.
Drill through the low-profile bar each side as shown.
Tighten it to the wellside using:
M8x35 Bolts
M8 Washers
M8 Nylocs
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If the hard copy does not arrive, please contact us.
