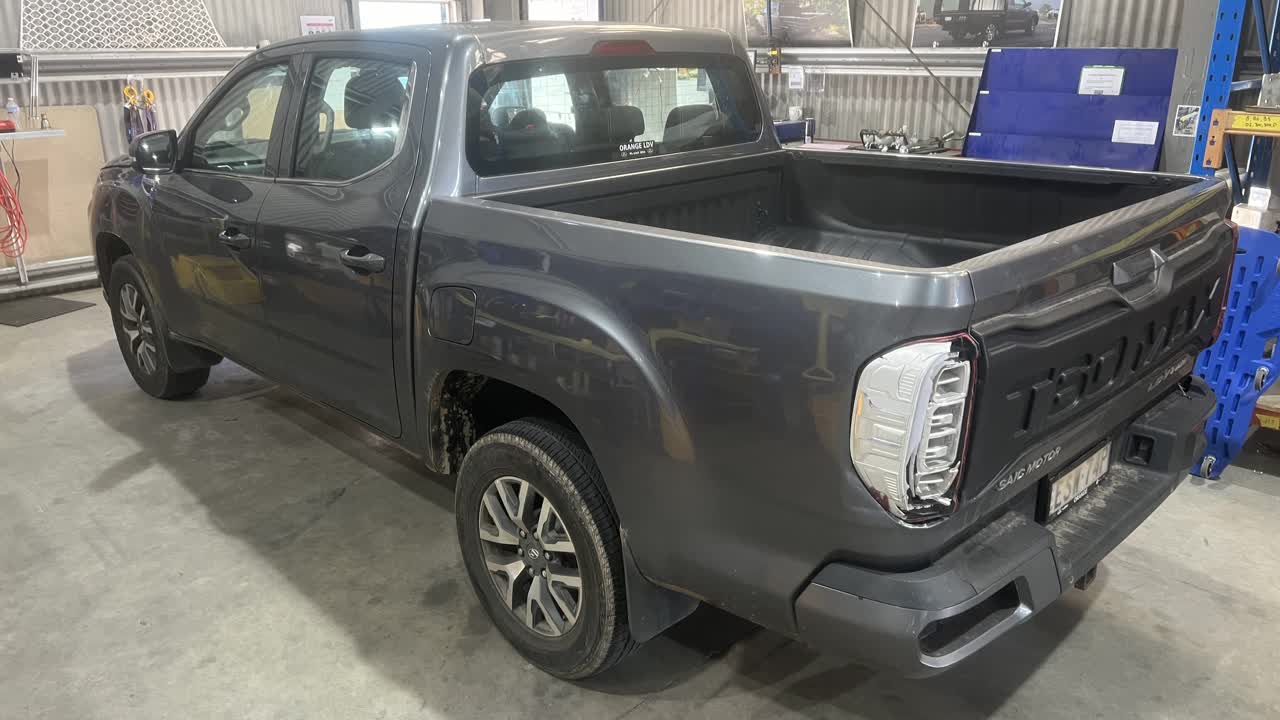

Tub Removal, LDV T60
1
Step 1 of 39

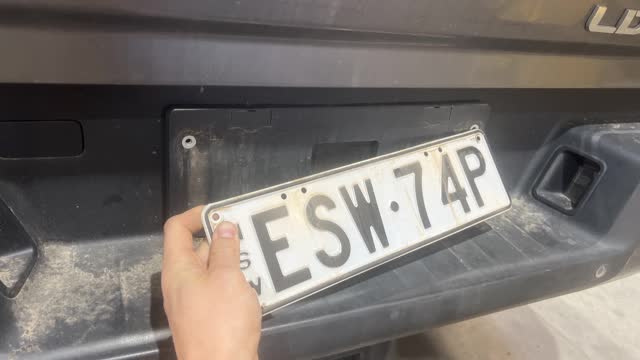

<p>Remove license plate if fitted</p>

Remove license plate if fitted

2
Step 2 of 39

Open

3
Step 3 of 39

Unscrew the Cover panel

4
Step 4 of 39

Remove the cover panel

5
Step 5 of 39

Pry

6
Step 6 of 39

T27

7
Step 7 of 39

Un clip rods

8
Step 8 of 39

Remove handle from tailgate

9
Step 9 of 39

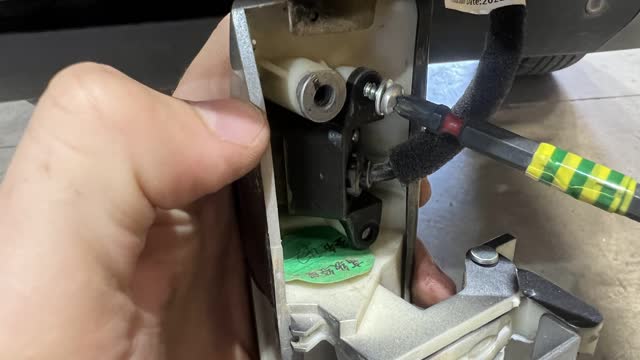

<p>Unscrew</p>

Unscrew

10
Step 10 of 39

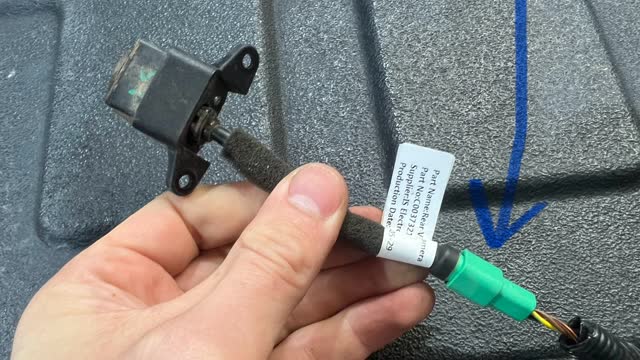

<p>Unplug</p>

Unplug

11
Step 11 of 39

Feed the harness out of the tailgate

12
Step 12 of 39

T27 unscrew tail lights

13
Step 13 of 39

Call directly back to remove the taillight from the tub

14
Step 14 of 39

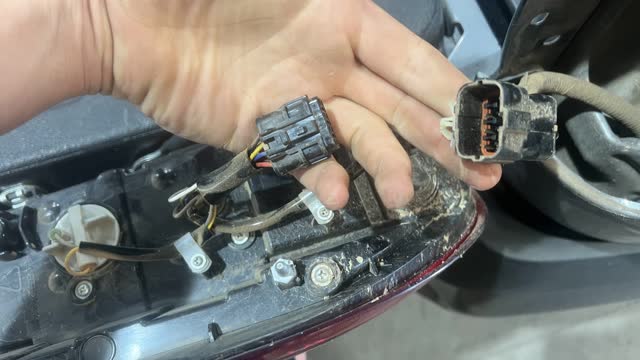

<p>Unplug the taillight harness</p>

Unplug the taillight harness

15
Step 15 of 39

Repeat for other side

16
Step 16 of 39

Close tailgate

17
Step 17 of 39

Unclip

18
Step 18 of 39

13mm, 2 x bolts per side of bumper

19
Step 19 of 39

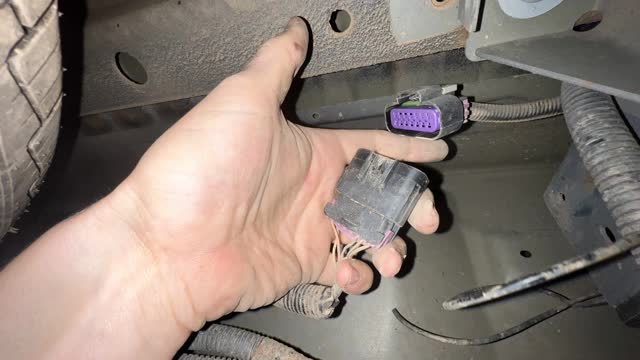

<p>Undo the bumper plug, it is located on the rear passenger side</p>

Undo the bumper plug, it is located on the rear passenger side

20
Step 20 of 39

Remove the bumper

21
Step 21 of 39

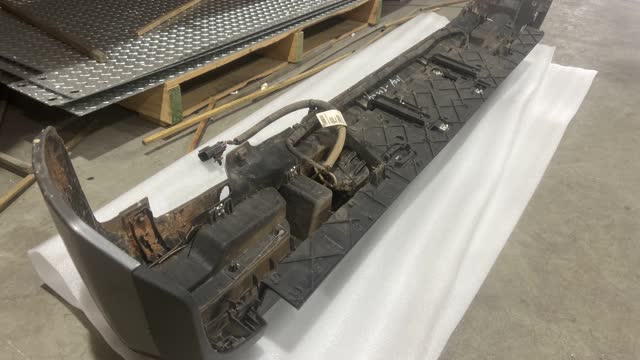

<p>Play the bumper on firm or a blanket, so that is not scratched</p>

Play the bumper on firm or a blanket, so that is not scratched

22
Step 22 of 39

If you’re release button is located on the driver side door

23
Step 23 of 39

Remove the fuel cap

24
Step 24 of 39

M8, remove the three bolts holding the fuel neck to the tub

25
Step 25 of 39

Inner guard

26
Step 26 of 39

Remove the plastic inner guard on both sides of the vehicle

27
Step 27 of 39

M10, remove bolts from chassis

28
Step 28 of 39

Bend bracket out of the way

29
Step 29 of 39

M8, remove the two bolts holding the fuel bracket to the vehicle chassis

30
Step 30 of 39

If your neck should now be free from the tub

31
Step 31 of 39

8mm, 2 x bolts

32
Step 32 of 39

Remove the fuel door release unit

33
Step 33 of 39

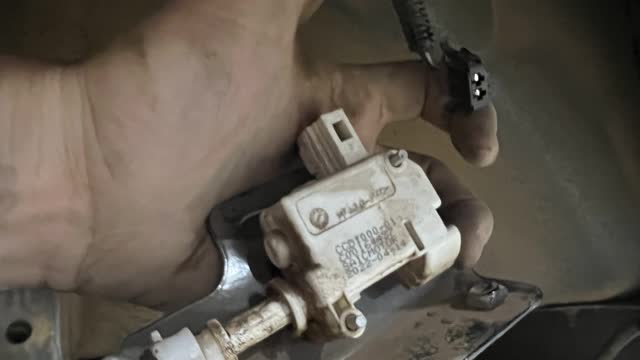

<p>Unplug it</p>

Unplug it

34
Step 34 of 39

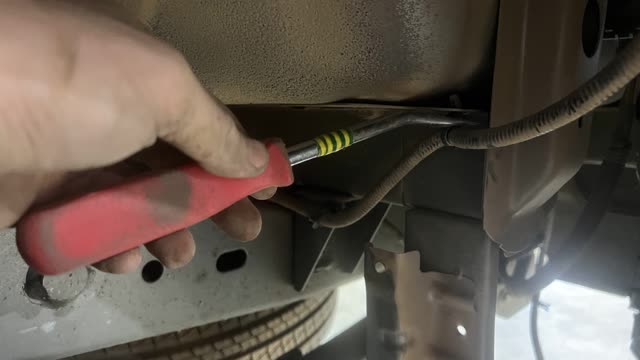

<p>Unclip the wiring from the tub</p>

Unclip the wiring from the tub

35
Step 35 of 39

Remove this unit. It is located on the passenger side.

36
Step 36 of 39

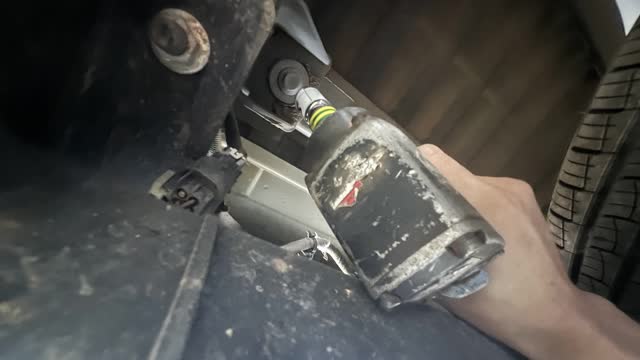

<p>15mm, rear mounts</p>

15mm, rear mounts

37
Step 37 of 39

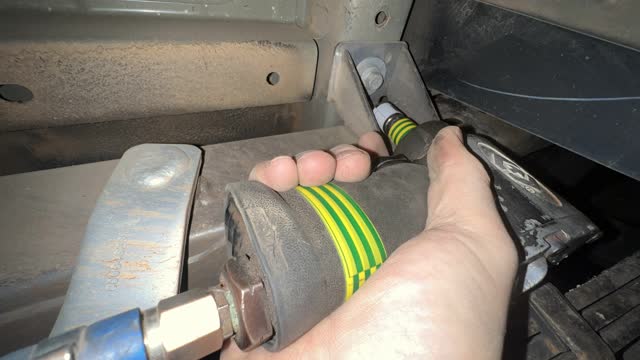

<p>15mm mid mount</p>

15mm mid mount

38
Step 38 of 39

Lift the tub off

39
Step 39 of 39

It will look like this once removed
