Packing Procedure
To correctly pack pallets for dispatch
To correctly pack pallets for dispatch
1
Step 1 of 11
<p><span style="color: rgb(0, 0, 0);">Pack panels face to face with a sheet of foam between each face</span></p><p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Ensure foam over hangs all sides of panels so no board materials are touching&nbsp;&nbsp;</span></p>

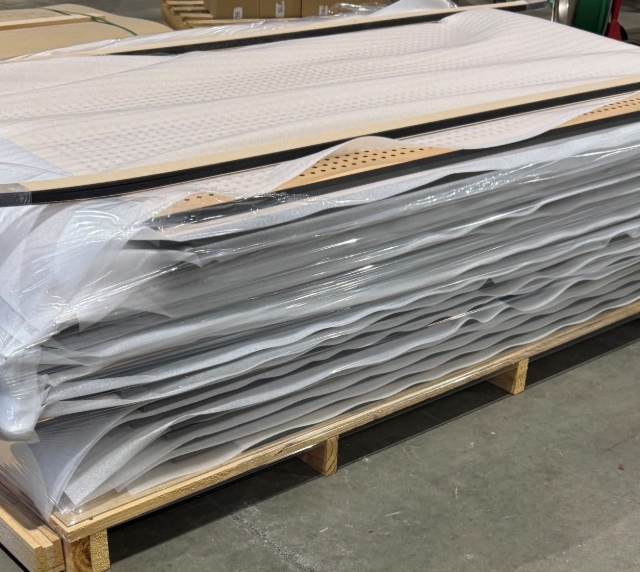

Pack panels face to face with a sheet of foam between each face

Ensure foam over hangs all sides of panels so no board materials are touching

2
Step 2 of 11

Pack panels from largest to smallest, on smallest pallet size suitable for job.

When nesting panels together “some” offcuts can be used as infills.

3
Step 3 of 11

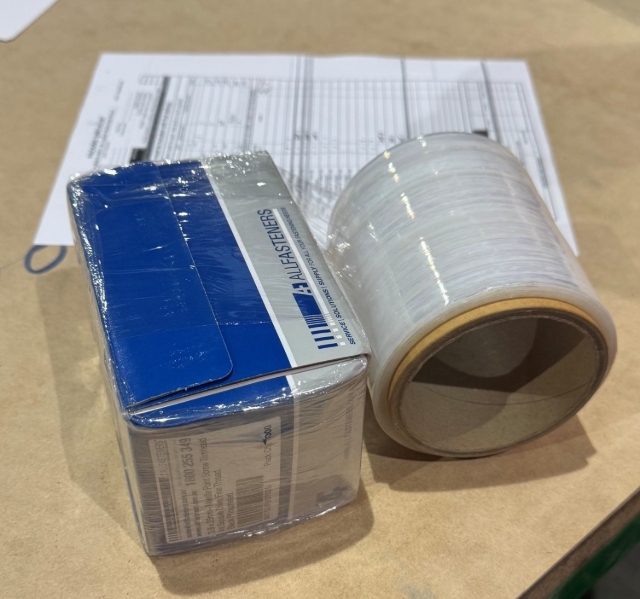

<p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Check packing checklist for inclusions, gather and tick off as placed on top of pallet.&nbsp;</span></p><p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Screws, edging, backing, loose parts.&nbsp;</span></p>

Check packing checklist for inclusions, gather and tick off as placed on top of pallet.

Screws, edging, backing, loose parts.

4
Step 4 of 11

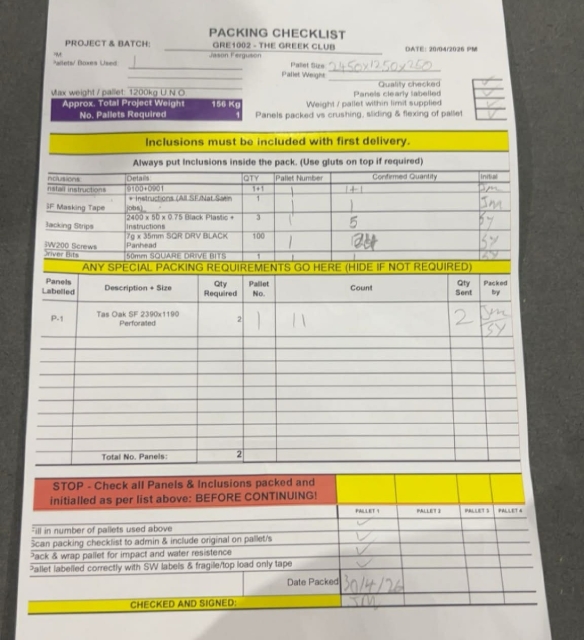

<p>Packing check list to be ticked off to confirm each item included in pallet.</p>

Packing check list to be ticked off to confirm each item included in pallet.

5
Step 5 of 11
<p><span style="color: rgb(0, 0, 0);">Place full 12mm sheet on top of all items as top board. Use clear shrink wrap.&nbsp;</span></p><p><span style="line-height: 1.4;">Top board to be relatively level.&nbsp;</span></p><p><span style="line-height: 1.4;">Wrap to be cut using a parrot knife <u>only</u>.&nbsp;</span></p>

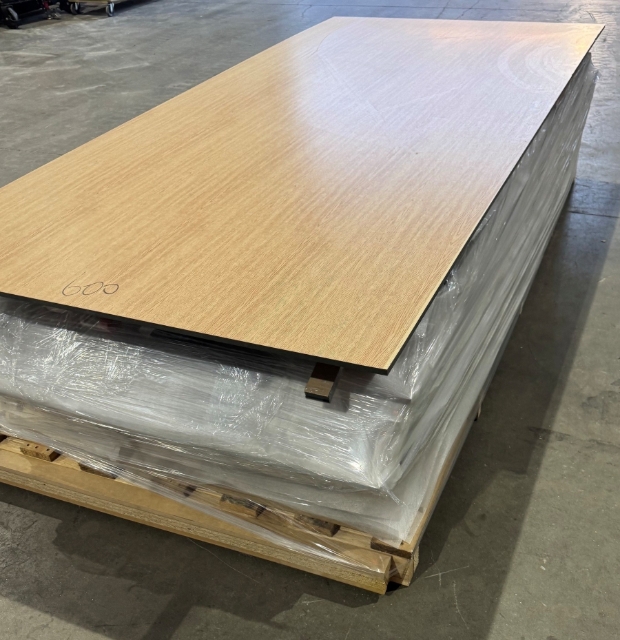

Place full 12mm sheet on top of all items as top board. Use clear shrink wrap.

Top board to be relatively level.

Wrap to be cut using a parrot knife only

6
Step 6 of 11

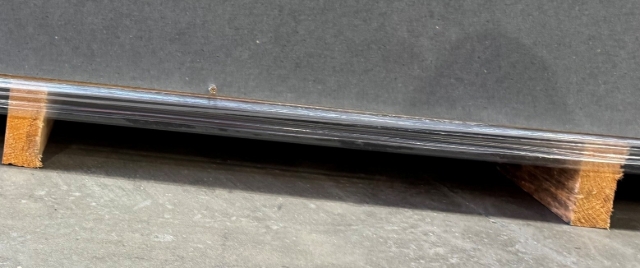

<p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Measure from top of glut to top of pack less 5mm to cut long side boards&nbsp;</span></p>

Measure from top of glut to top of pack less 5mm to cut long side boards

7
Step 7 of 11

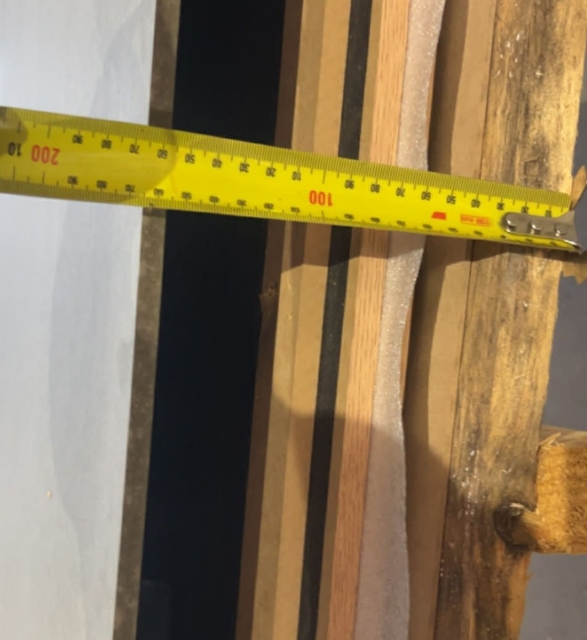

<p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Measure from top of pack to floor to cut short side boards&nbsp;</span></p>

Measure from top of pack to floor to cut short side boards

8
Step 8 of 11

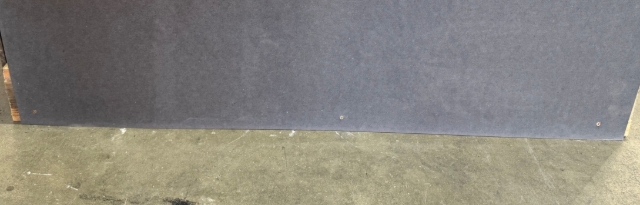

<p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Screw all side boards into pallet into Gluts.&nbsp;</span></p>

Screw all side boards into pallet into Gluts.

9
Step 9 of 11

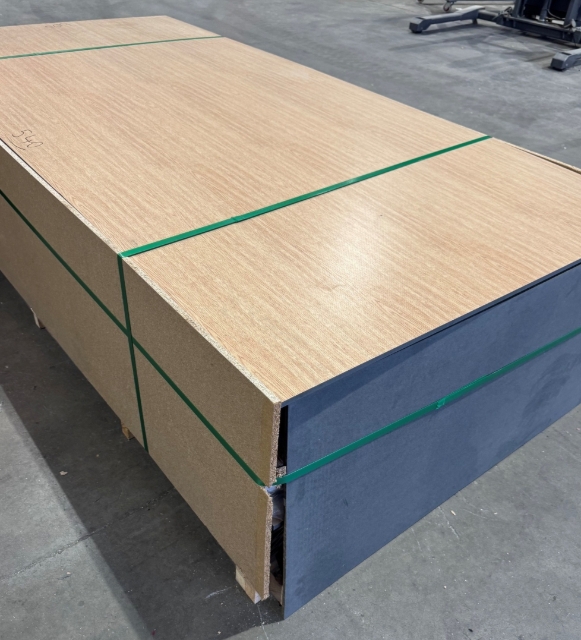

<p><span style="line-height: 1.4;">Strap pallet across the width.&nbsp;</span></p><p><span style="line-height: 1.4;">Where pallets are above 500mm H a strap around the perimeter is needed&nbsp;</span></p>

Strap pallet across the width.

Where pallets are above 500mm H a strap around the perimeter is needed

10
Step 10 of 11

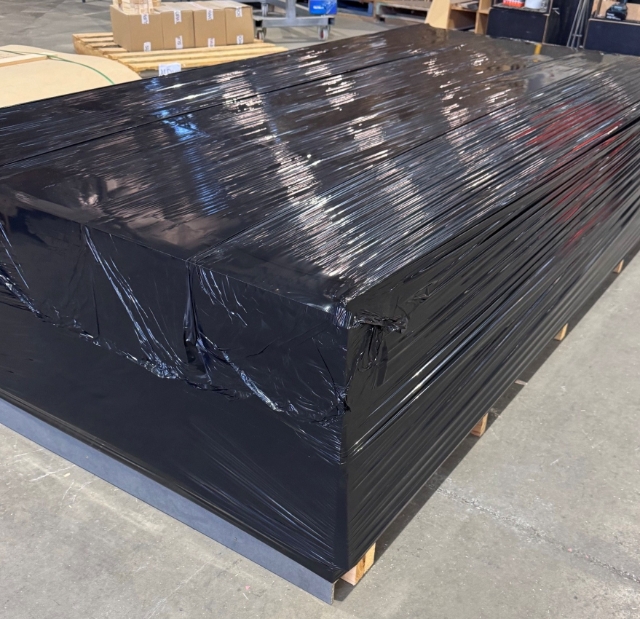

<p><span style="color: rgb(0, 0, 0);">Wrap pallet in Black wrap.</span></p><p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Sheets around side first, then top.&nbsp;</span><span style="color: rgb(0, 0, 0);">&nbsp;</span></p>

Wrap pallet in Black wrap.

Sheets around side first, then top.

11
Step 11 of 11

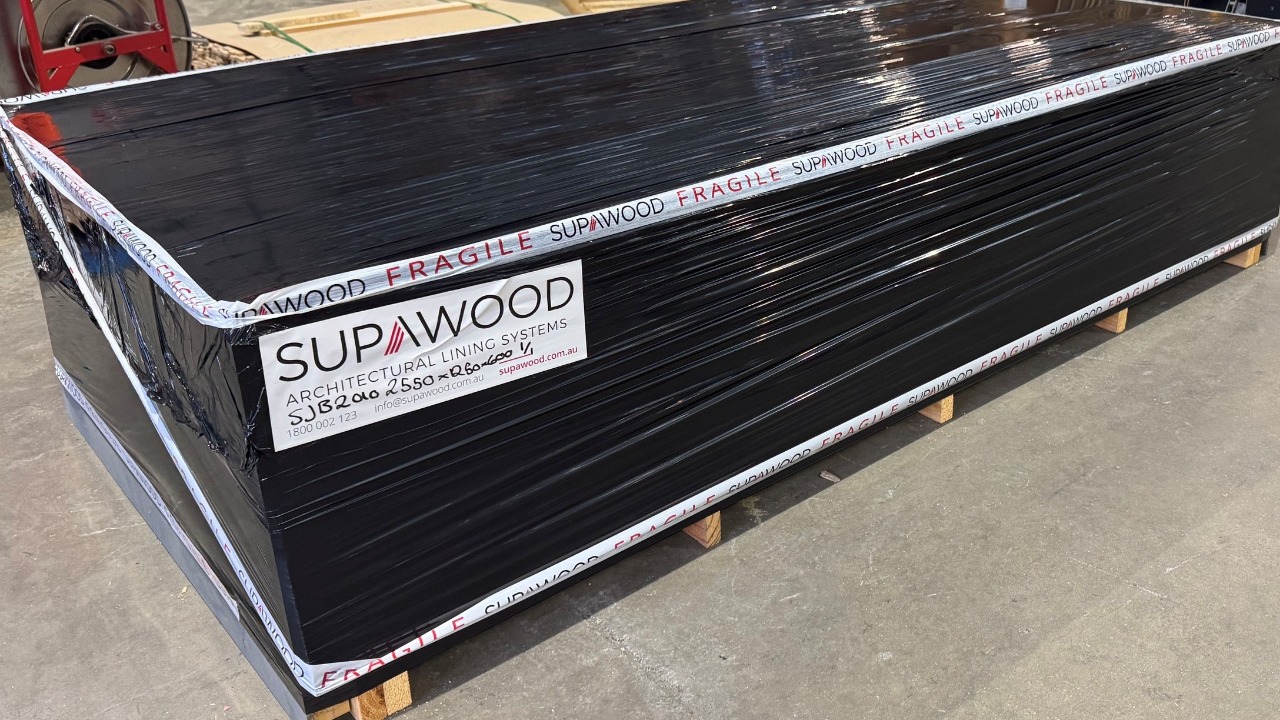

<p><span style="color: rgb(0, 0, 0); line-height: 1.4;">Apply Supawood and label stickers to both long sides.</span></p><p><span style="color: rgb(0, 0, 0); line-height: 1.4;">On the left side. Hand Write weight of pallet, Batch code, pallet size and number of pallets in batch.&nbsp;&nbsp;</span></p>

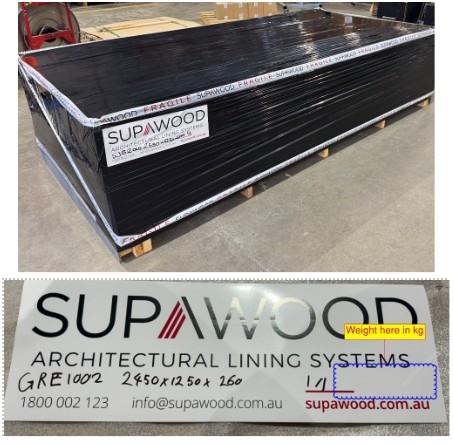

Apply Supawood and label stickers to both long sides.

On the left side. Hand Write weight of pallet, Batch code, pallet size and number of pallets in batch.
