How to use the UES 1m drawer slide jig on the Twin Overlanding Drawers
How to use the UES 1m drawer slide jig on the Twin Overlanding Drawers
1
Step 1 of 6

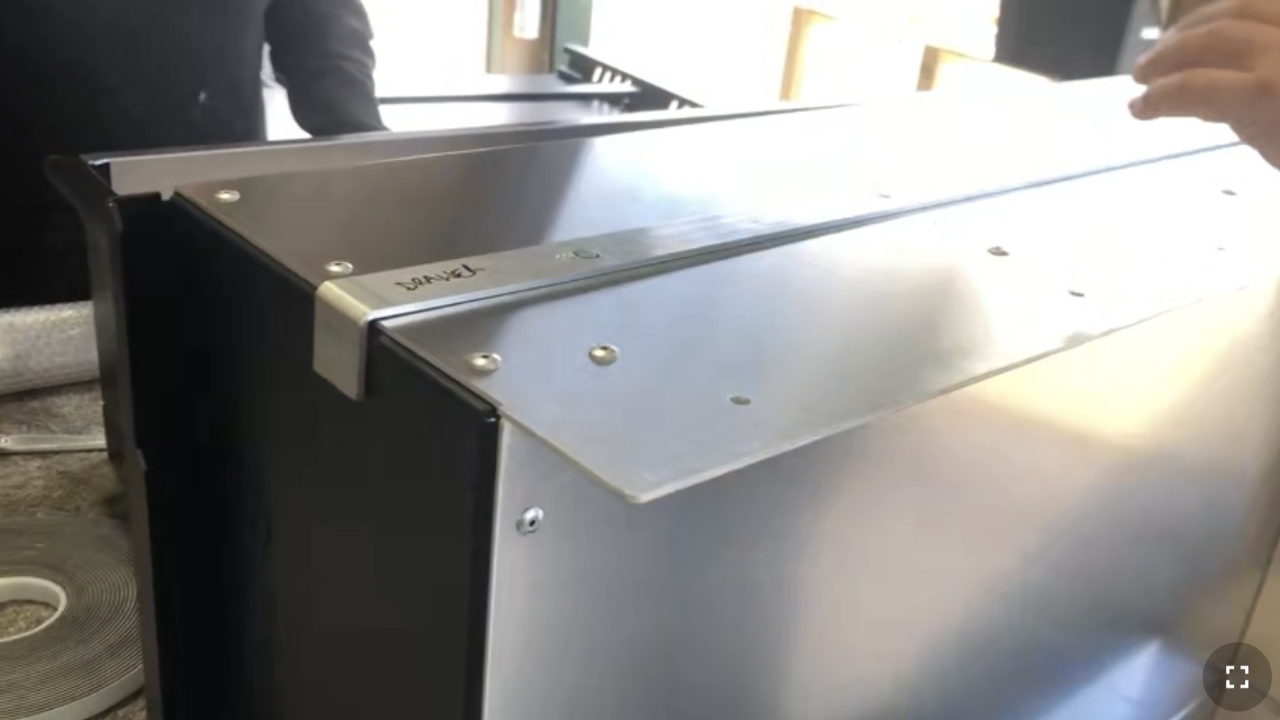

Place the outer frame jig to the outer drawer panels like so and fasten with a nut.

2
Step 2 of 6

Mark out the holes with a 6mm drill bit.

Do not drill all the way through.

Remove the jig and drill through the marks with a 3mm drill bit.

3
Step 3 of 6

Make your pilot holes bigger using a 6mm drill bit.

Your outer drawer should be looking like so.

Repeat this step for the other 3 frames.

4
Step 4 of 6

For the drawers, place the 'drawer' jig onto the shelf like so.

Mark the holes with a 6mm drill bit without drilling all the way through.

Remove the jig.

5
Step 5 of 6

Drill the marks with a 3mm drill bit.

Drill through the holes with a 6mm drill bit.

Repeat this step on the other sides of the drawers.

6
Step 6 of 6

Clean up any burrs on the holes.
