Final Assmbly Check, Next-Gen Ranger
1
Step 1 of 14

Tub or Cab Chassis?

2
Step 2 of 14

Which LEDs are fitted?

3
Step 3 of 14

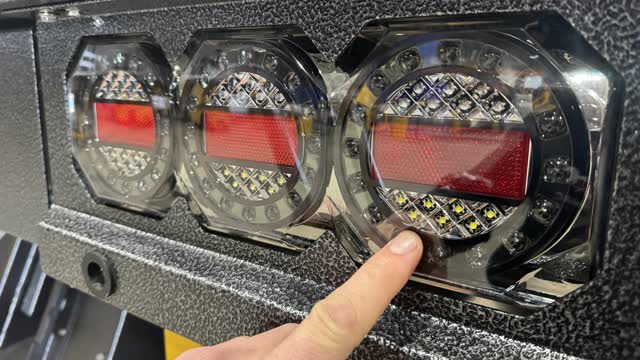

<p>LEDs right way up? On the maxi lamp lights the little yellow should be at the bottom</p>

LEDs right way up? On the maxi lamp lights the little yellow should be at the bottom

4
Step 4 of 14

4 reversing sensors or 6?

5
Step 5 of 14

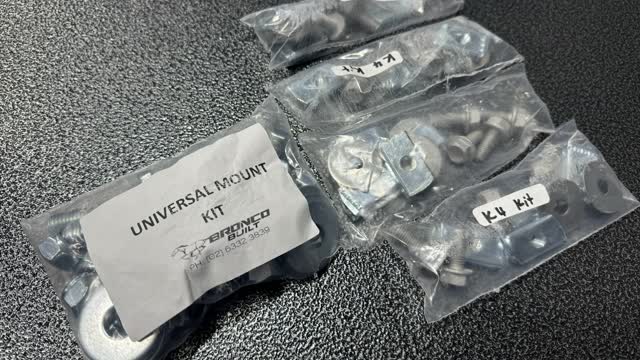

<p>Universal Fit Kit, and K4 fasteners supplied?</p>

Universal Fit Kit, and K4 fasteners supplied?

6
Step 6 of 14

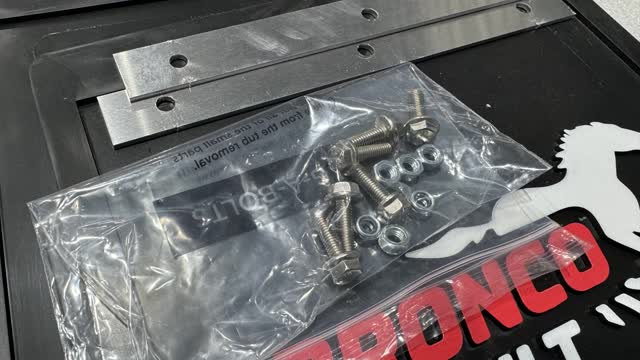

<p>Mud flap kit</p> <ul> <li>6 x M6 LONG bolts</li> <li>6 x M6 Nyloc Nuts</li> <li>2 x Mud flaps</li> <li>2 x Alloy brackets</li> </ul> <p>The common mistake is that Nyloc nuts are not supplied or that short bolts rather than Long bolts are supplied</p>

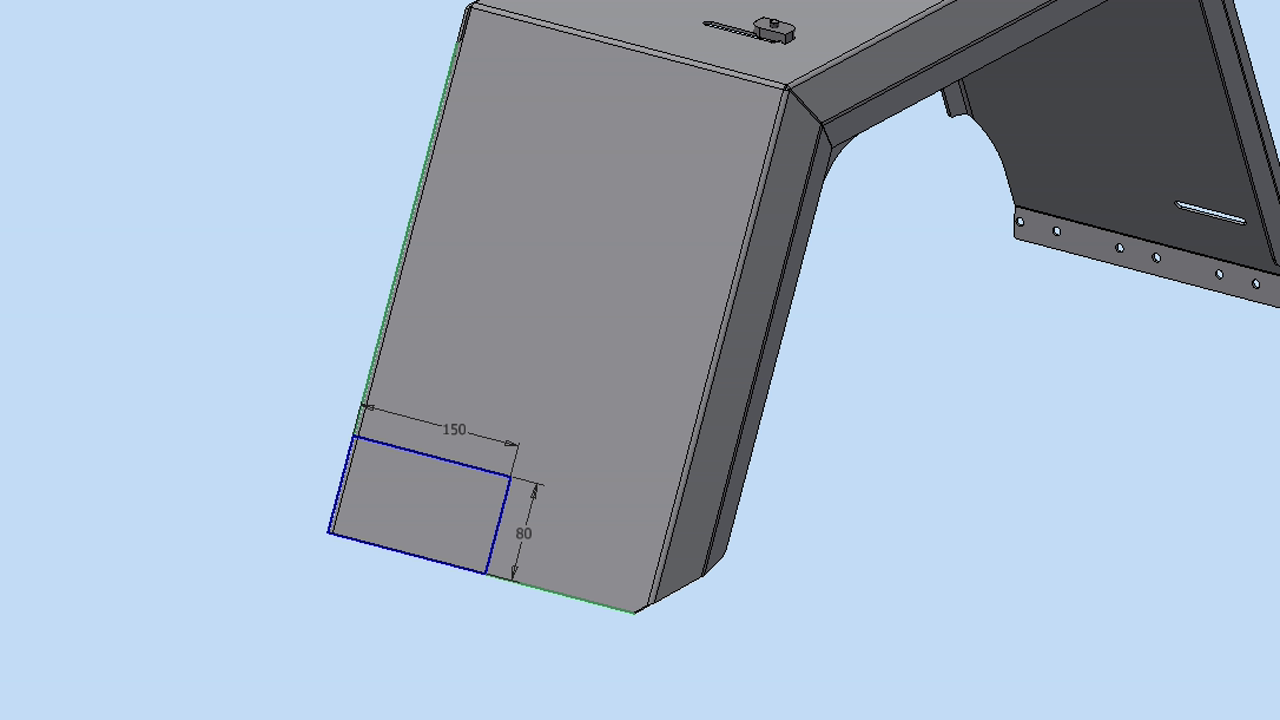

Mud flap kit

  • 6 x M6 LONG bolts
  • 6 x M6 Nyloc Nuts
  • 2 x Mud flaps
  • 2 x Alloy brackets

The common mistake is that Nyloc nuts are not supplied or that short bolts rather than Long bolts are supplied

7
Step 7 of 14

height of sideboards ok?

8
Step 8 of 14

LED light is fitted and wiring is secured running over to the passenger side

9
Step 9 of 14

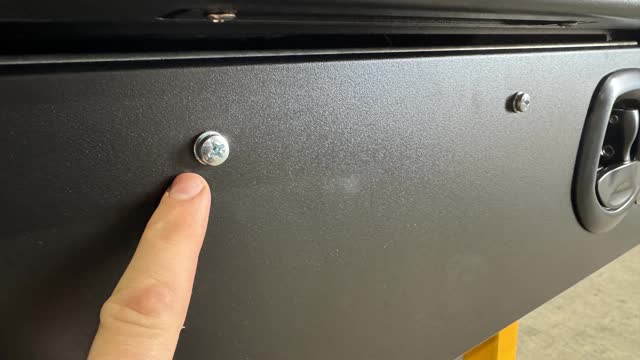

<p>If there is a Drawer, the license plate bolts should be fitted</p>

If there is a Drawer, the license plate bolts should be fitted

10
Step 10 of 14

If no drawer …

11
Step 11 of 14

Mounts are fit. You can see the large washer on inside

12
Step 12 of 14

Stainless bushes tight?

13
Step 13 of 14

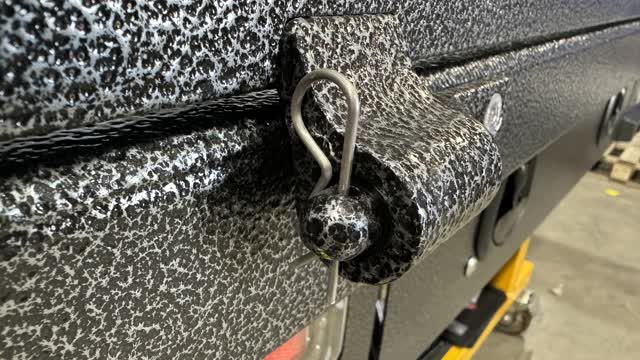

<p>R-Clips in sideboards?</p>

R-Clips in sideboards?

14
Step 14 of 14

Sideboards/Tailagte latch firmly? check all 4
