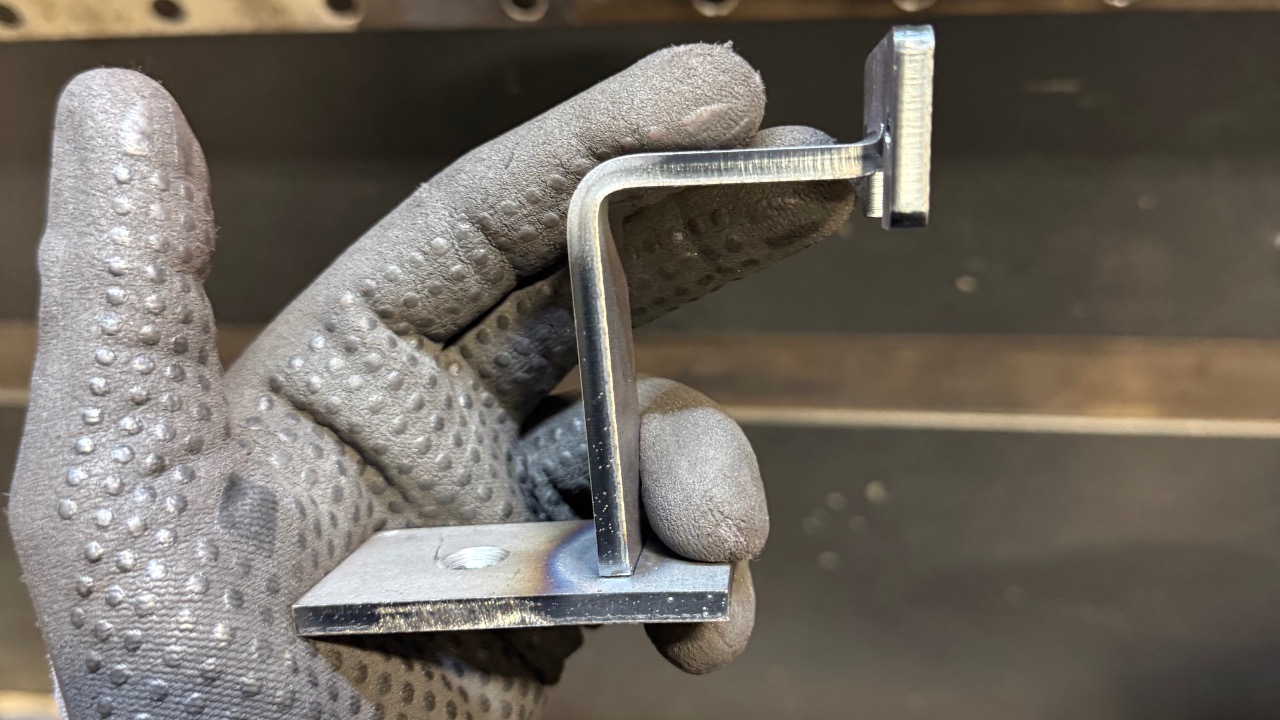

Brake Farmhouse Bracket
1
Step 1 of 5

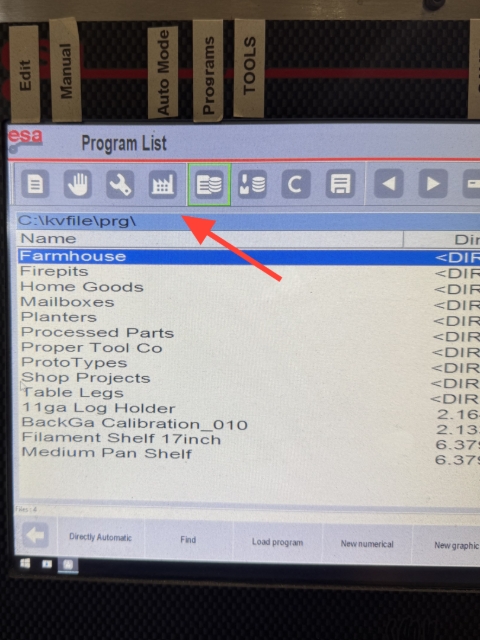

<p>In the program list select the farmhouse program </p>

In the program list select the farmhouse program

2
Step 2 of 5

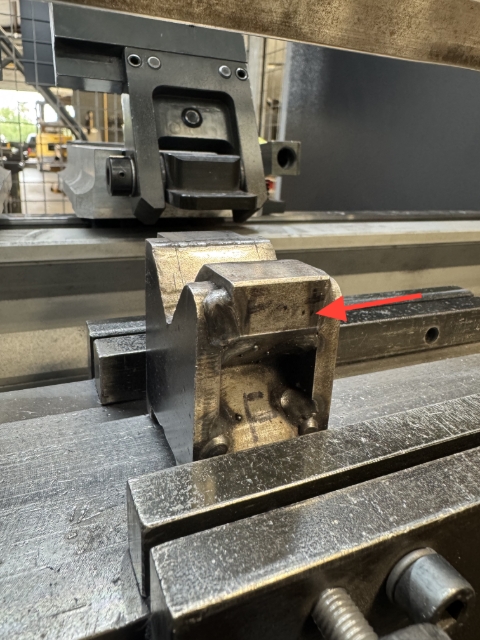

<p>Grab the farmhouse special die and make sure it’s facing the correct orientation refer to the front markings on the die</p>

Grab the farmhouse special die and make sure it’s facing the correct orientation refer to the front markings on the die

3
Step 3 of 5

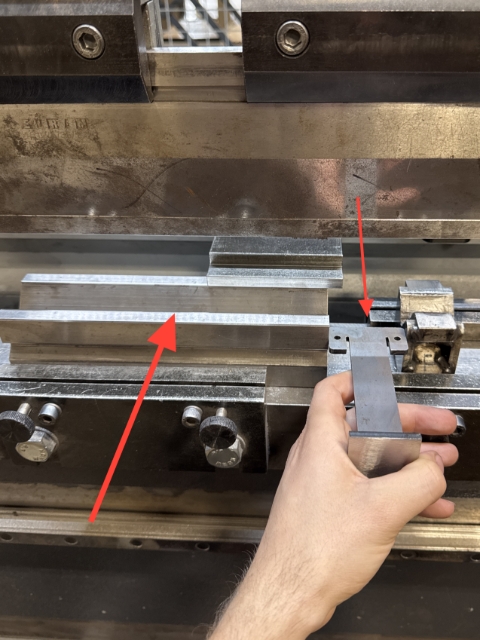

<p>Grab the 4 way die and place it with the number 3 slot up and space it about a brackets length away from the special die </p><p></p><p>Note: make sure on the 3 way die that the bracket isn’t going to hit the back clamp stop </p>

Grab the 4 way die and place it with the number 3 slot up and space it about a brackets length away from the special die

Note: make sure on the 3 way die that the bracket isn’t going to hit the back clamp stop

4
Step 4 of 5

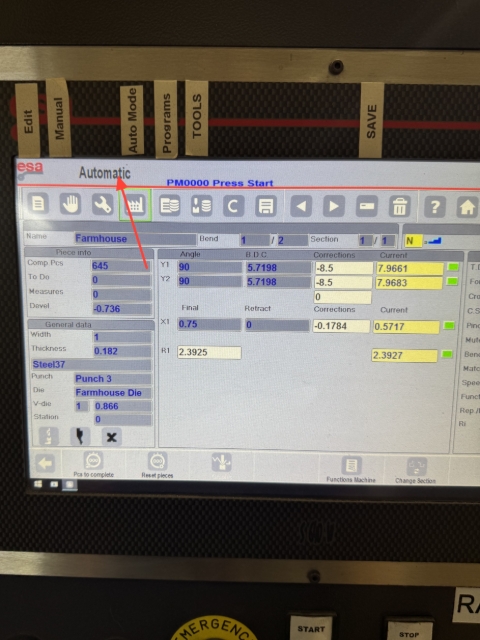

<p>Select automatic mode </p>

Select automatic mode

5
Step 5 of 5

First bend, line the ears center in the die with the base facing up

2nd bend flip the bracket the base should face down
