Set up Auger

Knowby

Set up Auger

1

Step 1 of 16

<p>Get the 3rd wheell on the ground</p>

Get the 3rd wheell on the ground

2

Step 2 of 16

Unclip chain off hook and roll lever

3

Step 3 of 16

<p>Unhook wire cable and attach to D shackle in centre</p>

Unhook wire cable and attach to D shackle in centre

4

Step 4 of 16

Use winch to tighten cable and take weight of draw bar

5

Step 5 of 16

Lift and take off auger from tow bar

6

Step 6 of 16

Take tow bar off auger

7

Step 7 of 16

<p>Tow bar belongs on here after being removed</p>

Tow bar belongs on here after being removed

8

Step 8 of 16

<p>Wind lever to lift height of auger to silo</p>

Wind lever to lift height of auger to silo

9

Step 9 of 16

Wind front lever to lift back end. Will have to switch between both levers to get the auger higher

10

Step 10 of 16

<p>Push auger so it meets centre silo lid. MAKE SURE SILO LID IS OFF! May need two people for this step</p>

Push auger so it meets centre silo lid. MAKE SURE SILO LID IS OFF! May need two people for this step

11

Step 11 of 16

<p>Tie on grain bin to auger</p>

Tie on grain bin to auger

12

Step 12 of 16

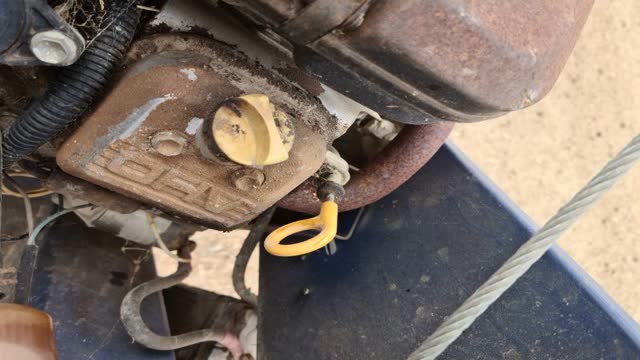

<p>To start engine. Check oil first</p>

To start engine. Check oil first

13

Step 13 of 16

<p>Turn on choke</p>

Turn on choke

14

Step 14 of 16

<p>Turn throttle on to half</p>

Turn throttle on to half

15

Step 15 of 16

<p>Pull throttle so start</p>

Pull throttle so start

16

Step 16 of 16

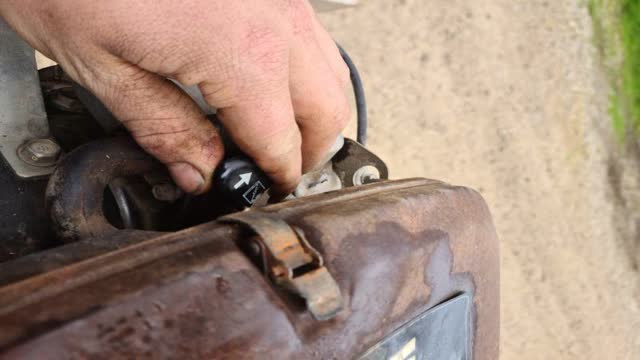

<p>Turn choke off slowly once its started</p>

Turn choke off slowly once its started
