CANOPY, FORD RANGER
1
Step 1 of 65
2
Step 2 of 65

Contents

Step 4. Components for DC canopy

Step 10. Components for EC canopy

Step 14. Tools Required

Step 17. Preparation

Step 18. Fitting kit installation

Step 30: Canopy fitting prep

Step 33. Canopy Installation

3
Step 3 of 65

Contents

Step 42. Running loom from cab to canopy

Step 47. Central locking/Door ajar alarm

Step 56. Cab to canopy

Step 58. Fuse/Earth

Step 60. Checkover

Step 65. QA Sheet

4
Step 4 of 65
5
Step 5 of 65

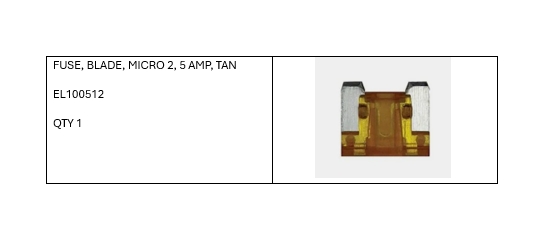

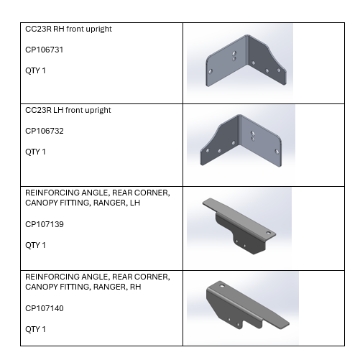

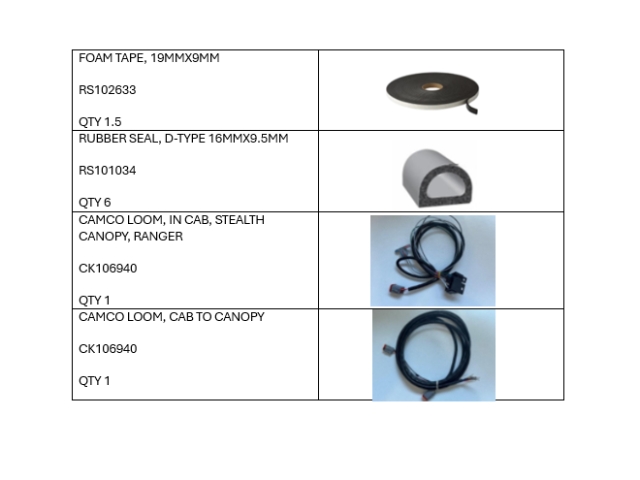

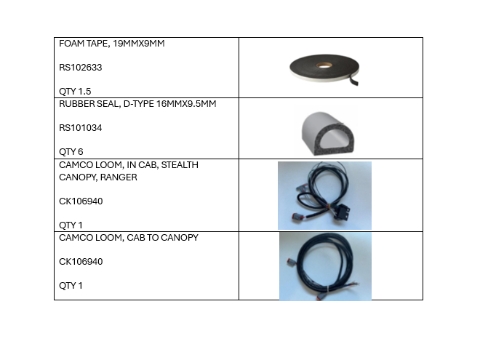

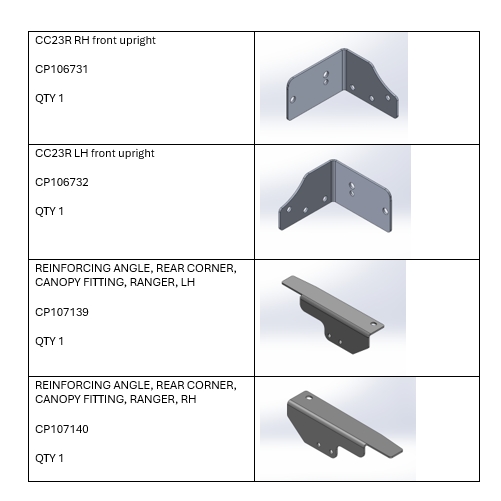

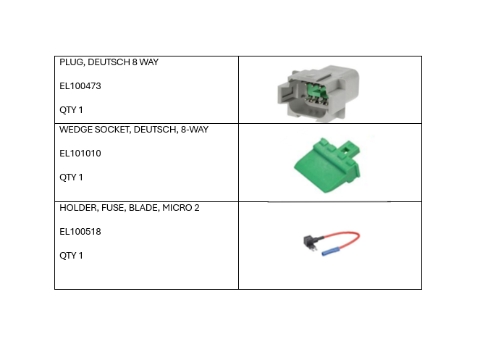

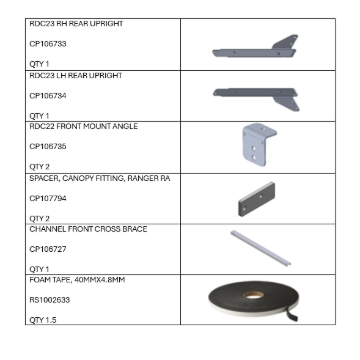

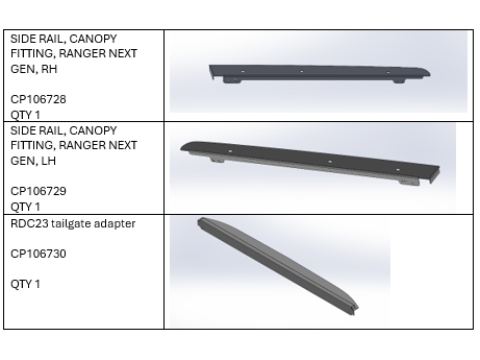

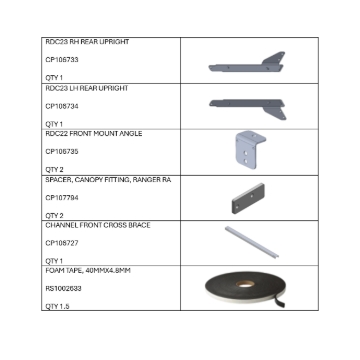

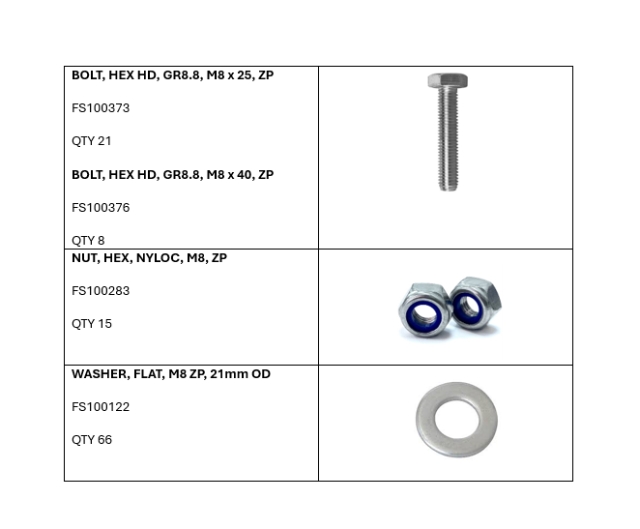

<p>Component list</p>

Component list

6
Step 6 of 65

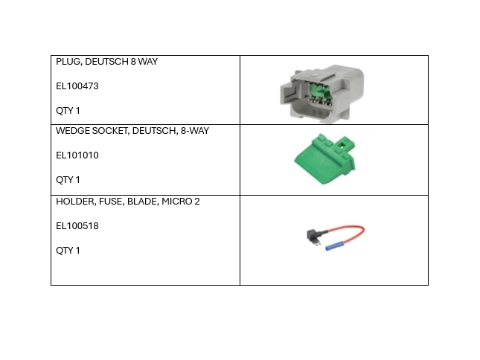

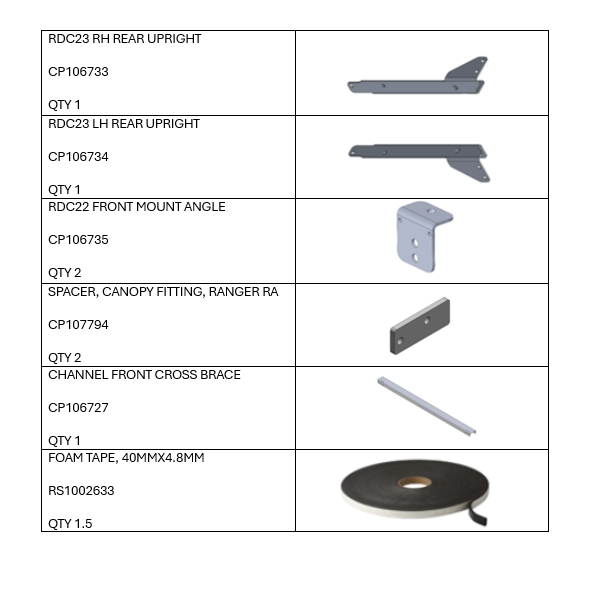

<p>Component list</p>

Component list

7
Step 7 of 65
8
Step 8 of 65
9
Step 9 of 65
<p></p>

10
Step 10 of 65

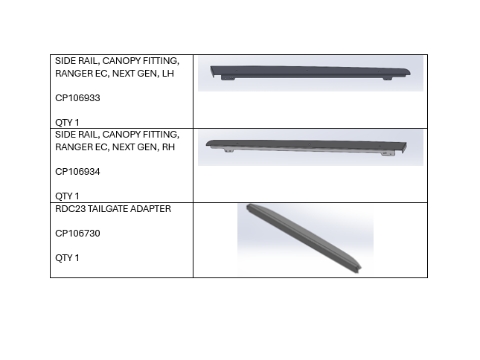

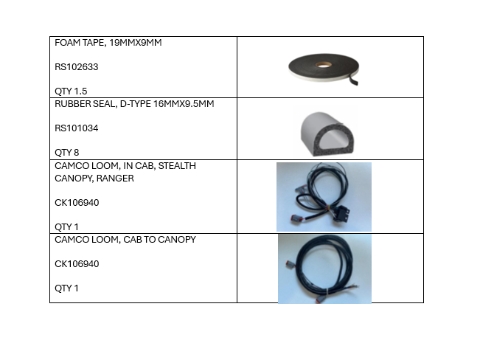

<p>Extra Cab Components&nbsp;</p>

Extra Cab Components

11
Step 11 of 65
12
Step 12 of 65
13
Step 13 of 65
14
Step 14 of 65

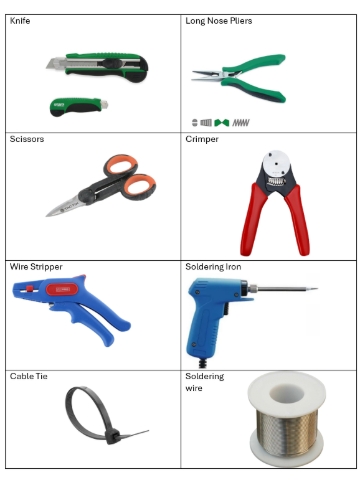

<p>Tools Required</p>

Tools Required

15
Step 15 of 65

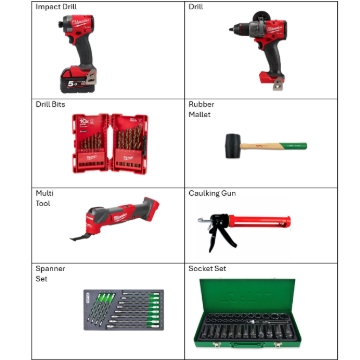

<p>Tools Required</p>

Tools Required

16
Step 16 of 65

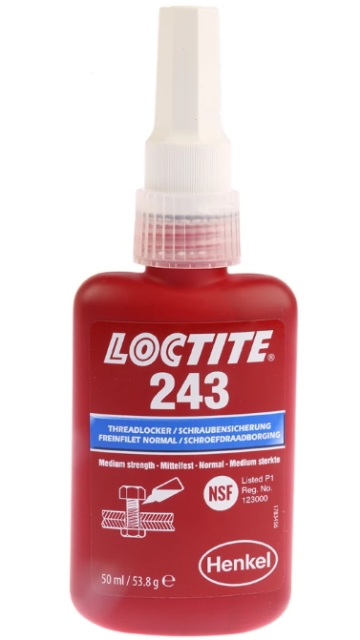

<p>Loctite used throughout the canopy installation.</p>

Loctite used throughout the canopy installation.

17
Step 17 of 65

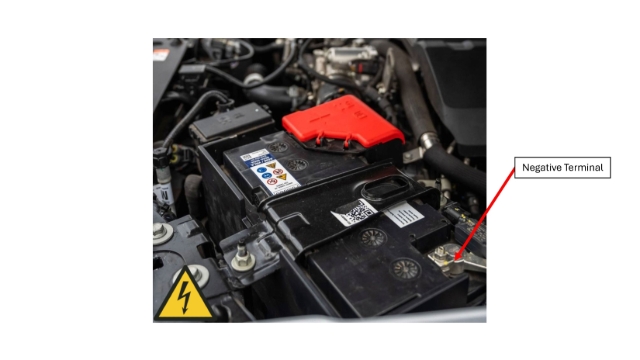

<p>Disconnect the negative (–) terminal from the vehicle battery to isolate the electrical system.</p>

Disconnect the negative (–) terminal from the vehicle battery to isolate the electrical system.

18
Step 18 of 65

Remove the plastic trim panels from the tub well-sides and tailgate

19
Step 19 of 65

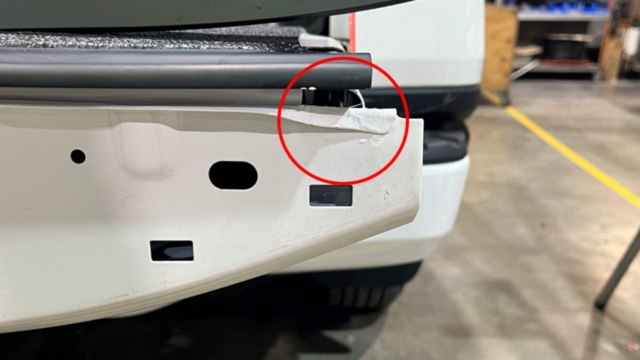

<p>Carefully bend the tailgate flange on both sides to the required position.</p>

Carefully bend the tailgate flange on both sides to the required position.

20
Step 20 of 65

Fit the tailgate bracket and secure it to the vehicle using the original screws removed earlier.

21
Step 21 of 65

Where a tub liner is fitted, trim or modify it as required to allow fitment of the front corner brackets.

22
Step 22 of 65

Apply 19 mm × 9 mm foam tape to the front edge of the tub well-side. Apply urethane sealant along the edges to fill any gaps, ensuring all voids are fully sealed from top to bottom.

23
Step 23 of 65

Install the front mounting brackets to the tub well-sides. Secure each bracket (CP106735) using an M8 × 25 hex-head bolt and washer, applying Loctite to the threads.

24
Step 24 of 65

Remove the rear tie-down points from the vehicle. Install the rear mounting brackets (CP106734) and refit the tie-down points, securing them loosely with M8 × 25 hex-head bolts and washers. Ensure Loctite is applied to the threads.

25
Step 25 of 65

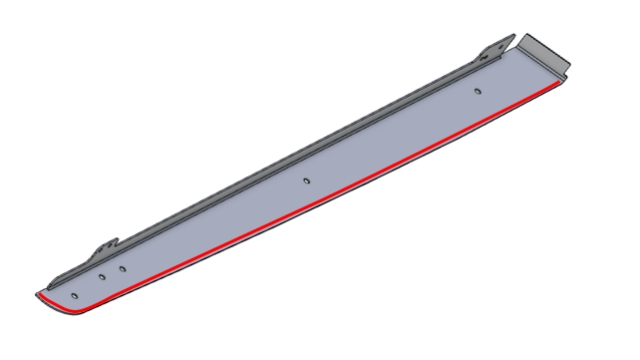

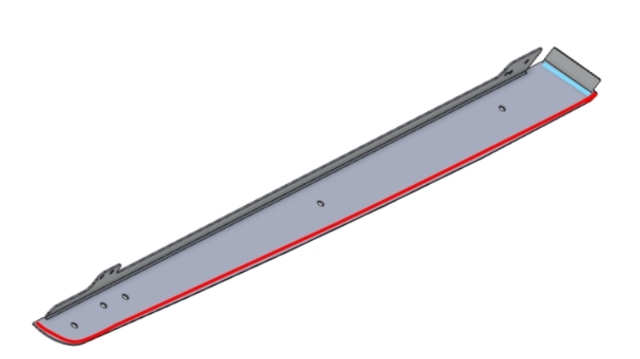

<p>Install the D-TYPE rubber (RS106728) seal to each of the side rails as shown.</p>

Install the D-TYPE rubber (RS106728) seal to each of the side rails as shown.

26
Step 26 of 65

Fit the side rails (CP106728/29) and front channel brackets onto the tub well-sides, ensuring correct alignment before securing

27
Step 27 of 65

Attach the front-side mounting brackets (CP107794) and spacer brackets using M8 × 50 hex-head bolts. Apply Loctite to the threads, but leave all bolts loose to allow for easier canopy adjustment.

28
Step 28 of 65

Attach the front channel (CP106727) to the front-side mounting brackets (CP106731/32) using M8 × 25 hex-head bolts, washers, and Nyloc nuts. Leave all fasteners loose to allow for canopy adjustment.

29
Step 29 of 65

Apply urethane sealant to the corners of the fitting kit, ensuring all gaps are fully filled to create an effective seal between the canopy and the kit.

30
Step 30 of 65

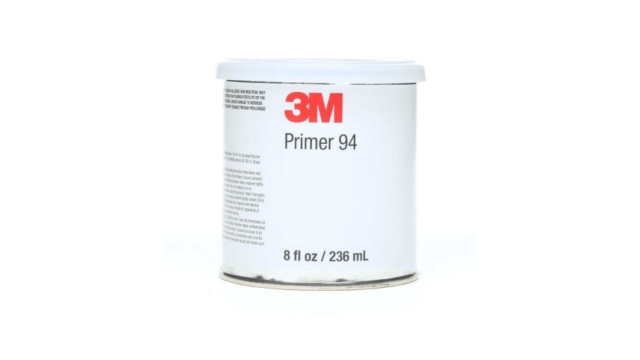

<p>Apply tape primer to the bottom of the canopy to prepare the surface for foam tape adhesion.</p>

Apply tape primer to the bottom of the canopy to prepare the surface for foam tape adhesion.

31
Step 31 of 65

Position 40 mm × 4.8 mm foam tape (RS109360) along the bottom of the canopy. Use additional foam tape in the corners for enhanced sealing, and place protective padding underneath the canopy to avoid scratches while fitting.

32
Step 32 of 65

With a minimum of four people, carefully lift the canopy onto the fitting kit.

33
Step 33 of 65

Adjust the canopy position so that the mounting holes on the canopy line up precisely with the holes on the fitting kit.

34
Step 34 of 65

Secure the canopy to the tub well-sides using M8 × 50 hex-head bolts and M8 washers in the threaded mounting points. Apply Loctite to all fasteners. Take care not to scratch the canopy while tightening, and have a second person assist by supporting or gently pulling the canopy as required.

Ensure to use tape on the flange where you are tightening to prevent scratches.

35
Step 35 of 65

Secure the canopy to the fitting kit at the front holes using M8 × 25 hex-head bolts and Nyloc nuts.

36
Step 36 of 65

Position the rear reinforcing brackets (CP107139/40) on top of the canopy. Secure them to the rear upright brackets using M8 × 25 hex-head bolts, washers, and Nyloc nuts.

37
Step 37 of 65

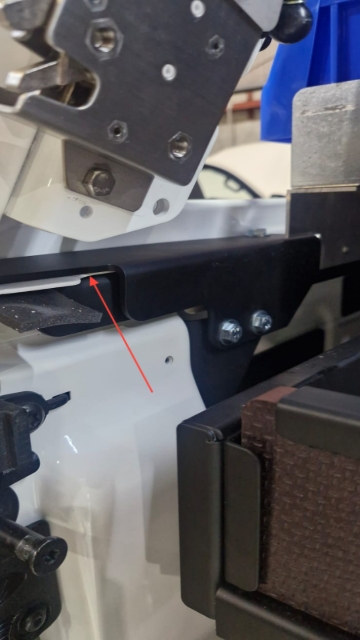

<p>Fit the rear canopy bracket so that it sits over the top of the canopy side rail, ensuring correct alignment as illustrated.</p>

Fit the rear canopy bracket so that it sits over the top of the canopy side rail, ensuring correct alignment as illustrated.

38
Step 38 of 65

Using the top hole of the reinforcing bracket, drill as required and fasten the bracket with an M8 × 25 hex-head bolt, washer, and Nyloc nut, ensuring proper alignment before tightening.

39
Step 39 of 65

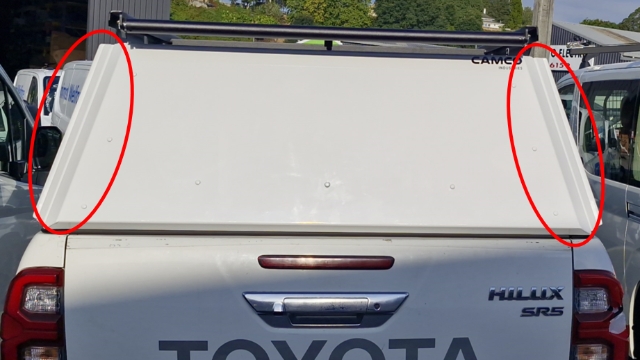

<p>Check that the canopy is correctly aligned. The outer edges of the doors should run parallel with the angle of the rear uprights.</p>

Check that the canopy is correctly aligned. The outer edges of the doors should run parallel with the angle of the rear uprights.

40
Step 40 of 65

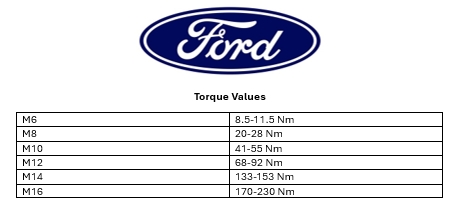

Once the fitting kit and canopy are in place, ensure the canopy is square and correctly aligned. Then tighten all fitting kit and mounting bolts to securely fix the canopy.

41
Step 41 of 65

Apply the 16 mm × 9 mm D-type rubber (RS102633) to the tailgate bracket to create a seal between the canopy door and the fitting kit.

42
Step 42 of 65

Run the cab to canopy loom on the driver's side of the wellside.

43
Step 43 of 65

Pull the wiring loom out from under the tub well-side, ensuring it is fully accessible beneath the vehicle.

44
Step 44 of 65

Remove the interior trim covering the A-pillar to allow access for canopy wiring.

45
Step 45 of 65

Pass the cab-to-canopy wiring loom through the grommet beneath the driver’s seat. Modify the rubber grommet by creating a small opening so the loom can be routed without damage.

46
Step 46 of 65

Pull the cab-to-canopy loom through the grommet and into the vehicle’s cab.

47
Step 47 of 65

Identify the vehicle’s main plug. Connect the supplied in-cab wiring loom to the appropriate wires on this plug, following the correct color coding

48
Step 48 of 65

Locate the grey wire with a brown stripe (Unlock) and the blue wire with a green stripe (Lock).

49
Step 49 of 65

Carefully expose 10 mm of bare wire on each cable, taking care not to damage the conductor.

50
Step 50 of 65

Connect the grey wire with a brown stripe (Unlock) to the green wire on the in-cab loom.

51
Step 51 of 65

Connect the blue wire with a green stripe (Lock) to the brown wire on the in-cab loom.

52
Step 52 of 65

Identify the pure white wire and cut it evenly. Carefully strip 10 mm of insulation from both ends to prepare for connection to the Door Ajar Alarm circuit.

53
Step 53 of 65

Insert each stripped end of the wire into the T-joint on the in-cab loom.

54
Step 54 of 65

Ensure all wire connections are securely soldered. Verify that each set of wires is correctly joined before proceeding.

55
Step 55 of 65

Insulate the exposed wires with electrical tape, ensuring each wire is wrapped individually.

56
Step 56 of 65

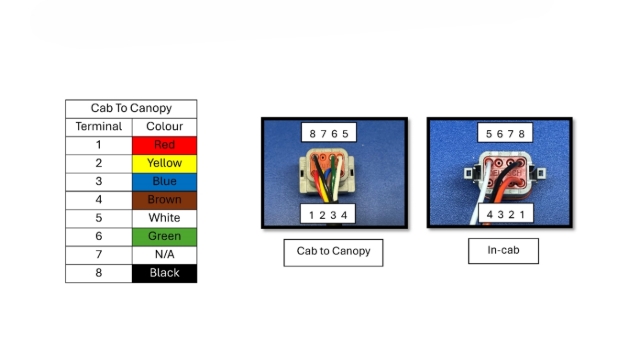

<p>Connect the cab-to-canopy loom to the in-cab wiring loom as follows: white to white, red to orange, and black to black. Additional wires are provided for optional accessories.</p>

Connect the cab-to-canopy loom to the in-cab wiring loom as follows: white to white, red to orange, and black to black. Additional wires are provided for optional accessories.

57
Step 57 of 65

Connect the in-cab wiring loom to the cab-to-canopy loom. Check the wiring instruction on page 50.

58
Step 58 of 65

Remove the fuse from slot 29 and place it into the fuseblade holder. Then, insert the fuseblade holder back into slot 29 of the fusebox.

59
Step 59 of 65

Connect the earth (black) wire from the in-cab loom to an existing factory earth point on the vehicle.

60
Step 60 of 65

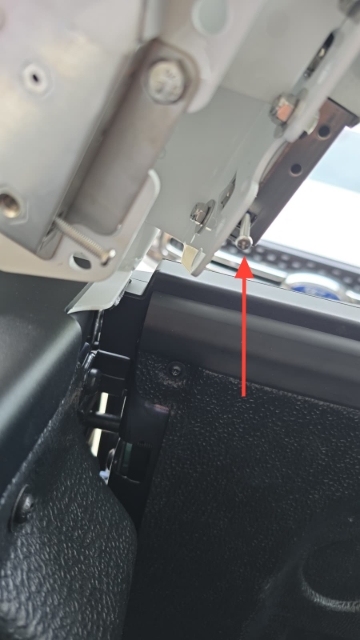

<p>Remove screws from the latch.</p>

Remove screws from the latch.

61
Step 61 of 65

Test all doors and rear lights to confirm they operate correctly.

62
Step 62 of 65

Verify that the door alarm indicator illuminates when a canopy door is open.

63
Step 63 of 65

Check that the canopy doors respond properly to the vehicle remote, locking and unlocking as intended.

64
Step 64 of 65

Neatly secure all wiring and refit the interior trim panels.

65
Step 65 of 65
<p>Please fill out the hard copy QA sheet included with the product you got.Once filled out, please send back to&nbsp;</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:tocharl@camcoindustries.co">charl@camcoindustries.co.nz</a>&nbsp;</p><p></p><p>If the hard copy does not arrive, please contact us&nbsp;</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:uscharl@camcoindustries.co">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.Once filled out, please send back to

charl@camcoindustries.co.nz

If the hard copy does not arrive, please contact us

charl@camcoindustries.co.nz

0800 663 500
