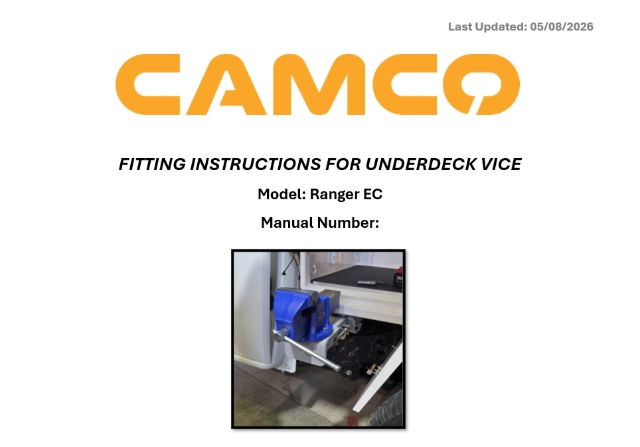

UNDERDECK, VICE

Knowby

UNDERDECK, VICE

1

Step 1 of 25

<p></p>

2

Step 2 of 25

Contents (Click to view)

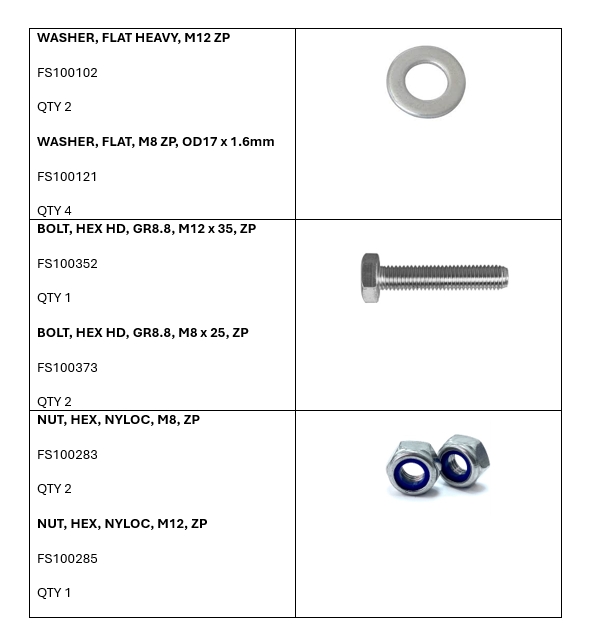

STEP 4: Components List

STEP 6: Tools List

STEP 8: Torque Values

STEP 9: Fitting fold down to chassis rail

3

Step 3 of 25

(Click to view)

STEP 15: Fitting fold down to flange

STEP 21: Soft Seal Vice

STEP 23: Fitting Vice

STEP 25: QA Sheet

4

Step 4 of 25

5

Step 5 of 25

6

Step 6 of 25

7

Step 7 of 25

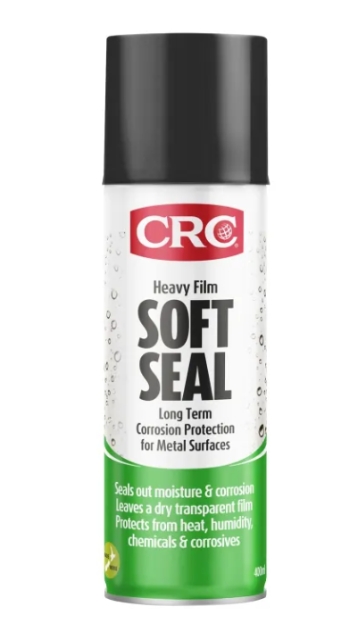

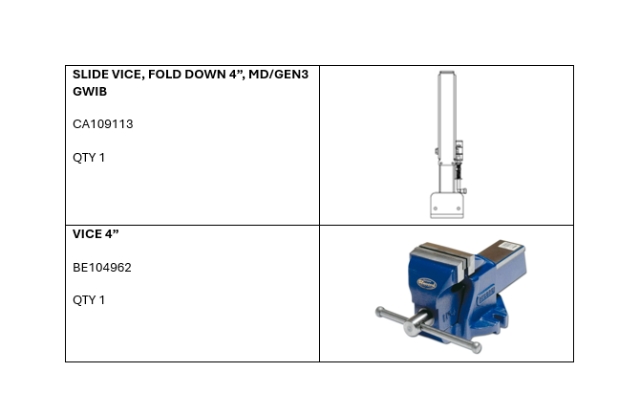

<p>Components </p><p>Soft Seal</p>

Components

Soft Seal

8

Step 8 of 25

9

Step 9 of 25

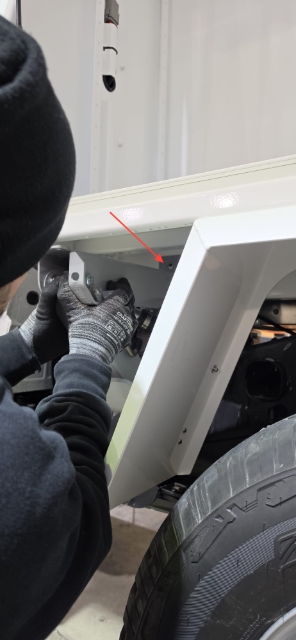

<p>Locate this hole on the chassis rail. It is the top hole and the front set of holes.</p>

Locate this hole on the chassis rail. It is the top hole and the front set of holes.

10

Step 10 of 25

Using a 10.5mm drill bit, drill through the top hole.

11

Step 11 of 25

Fit the fold-down vice to the chassis using an M12 x 35 bolt.

12

Step 12 of 25

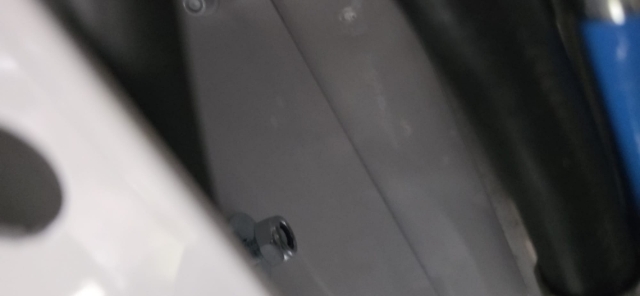

<p>Fit an M12 heavy washer and M12 Nyloc onto the M12 bolt</p>

Fit an M12 heavy washer and M12 Nyloc onto the M12 bolt

13

Step 13 of 25

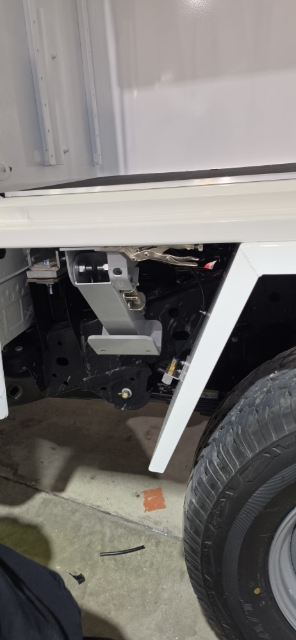

<p>Clamp the front of the fold-down vice to the flange of the box </p>

Clamp the front of the fold-down vice to the flange of the box

14

Step 14 of 25

Tighten the fold down vice to the chassis rail.

15

Step 15 of 25

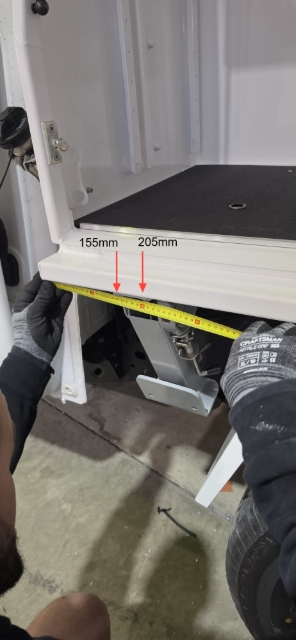

<p>Measure from the front of the box to get measurements for drilling the holes.</p>

Measure from the front of the box to get measurements for drilling the holes.

16

Step 16 of 25

<p>Clamp the fold-down vice after measuring it out.</p>

Clamp the fold-down vice after measuring it out.

17

Step 17 of 25

Drill the holes out with a 8.5mm bit

18

Step 18 of 25

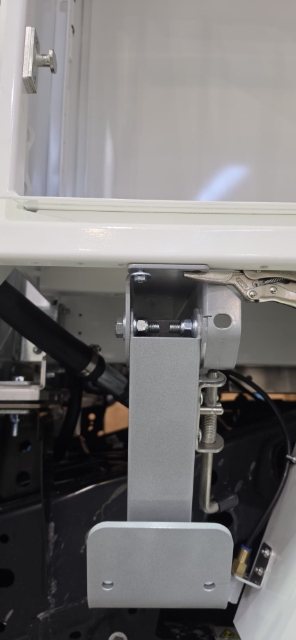

<p>Fit an M8 x 25 bolt with an M8 flat washer and an M8 nyloc nut.</p>

Fit an M8 x 25 bolt with an M8 flat washer and an M8 nyloc nut.

19

Step 19 of 25

Tighten the front to the flange.

20

Step 20 of 25

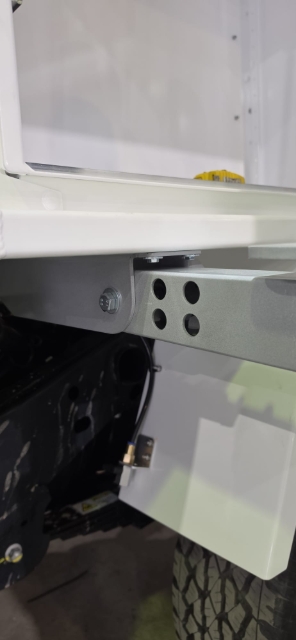

<p>Fold down fitted.</p>

Fold down fitted.

21

Step 21 of 25

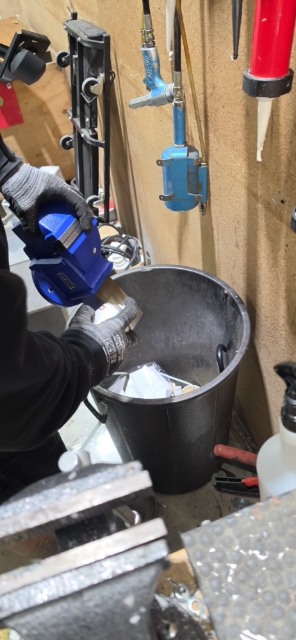

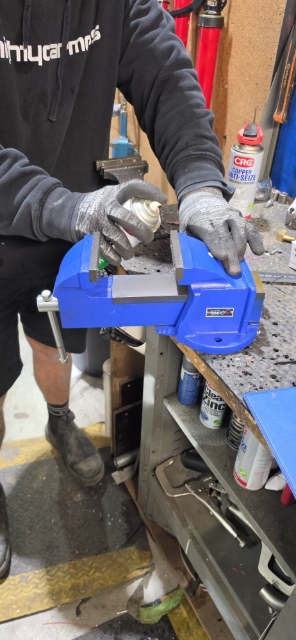

<p>Spray the vice with soft seal.</p>

Spray the vice with soft seal.

22

Step 22 of 25

<p>Spray the vice with soft seal.</p>

Spray the vice with soft seal.

23

Step 23 of 25

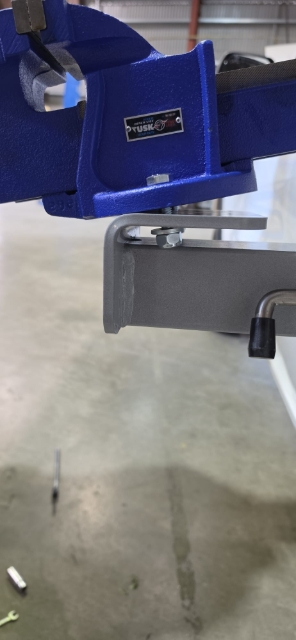

<p>Fit the vice with x2 M12 x 35 bolts and x2 M12 Heavy washers / M12 Nylocs</p>

Fit the vice with x2 M12 x 35 bolts and x2 M12 Heavy washers / M12 Nylocs

24

Step 24 of 25

Tighten the vice.

25

Step 25 of 25

<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p> </p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz

If you have issues with instructions and need assistance, please contact.

roman@camcoindustries.co.nz

+64 21 349 001

If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
