CHASSIS MOUNTS, TRITON EC
1
Step 1 of 14
2
Step 2 of 14

Contents (Click to View)

​STEP 3: Components List​

​STEP 8: Tools List​

​STEP 9: Torque Values​

​STEP 10: Chassis Diagram​

​STEP 11: Chassis Mounts​

​STEP 14: QA Sheet​

3
Step 3 of 14

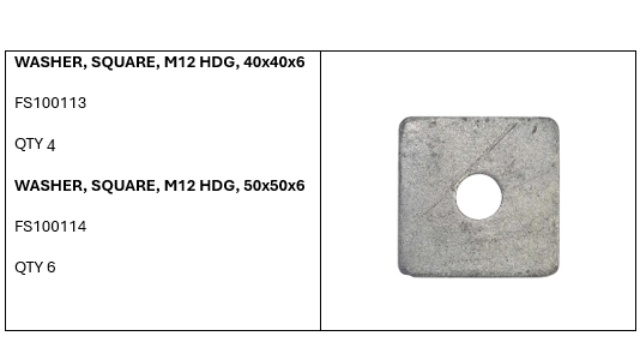

<p>Components List</p>

Components List

4
Step 4 of 14

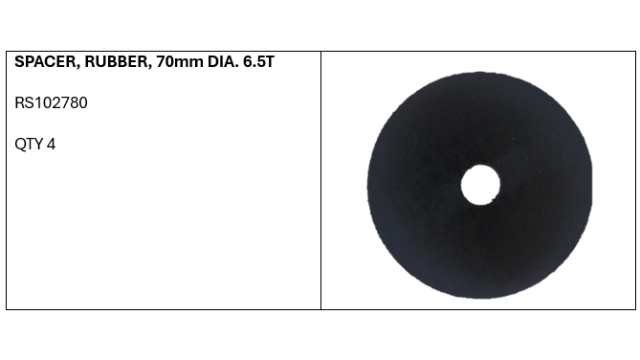

<p>Components List</p>

Components List

5
Step 5 of 14
<p>Components List</p>

Components List

6
Step 6 of 14

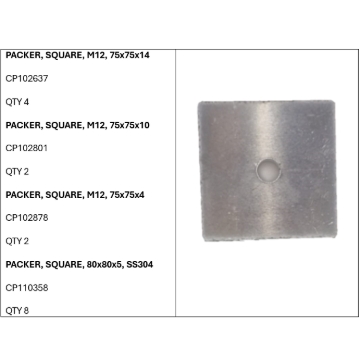

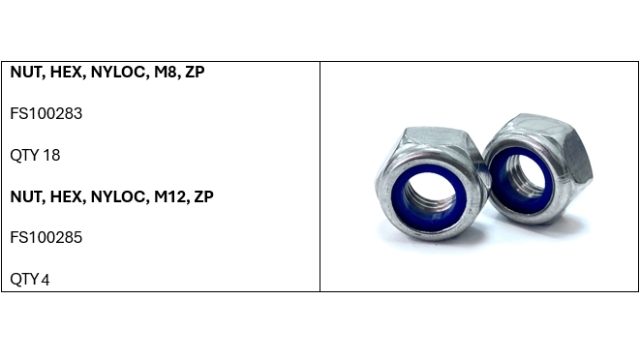

<p>Components List</p>

Components List

7
Step 7 of 14

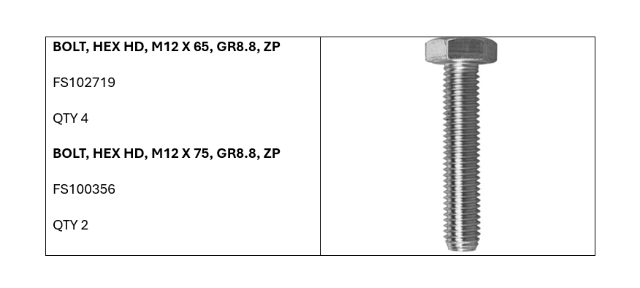

<p>Components</p>

Components

8
Step 8 of 14

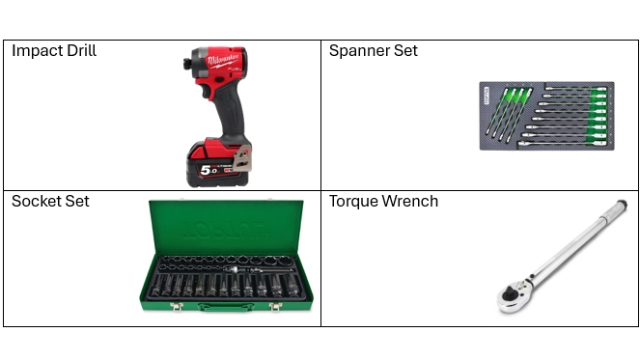

<p>Tools List</p>

Tools List

9
Step 9 of 14

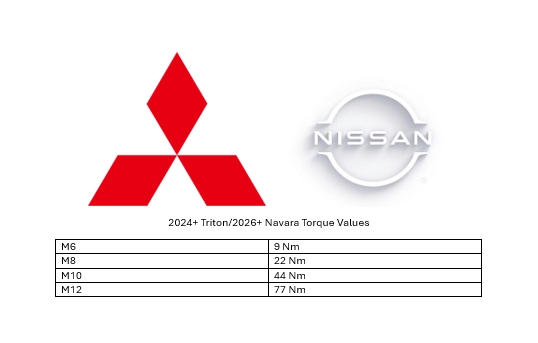

<p>Torque Values</p>

Torque Values

10
Step 10 of 14

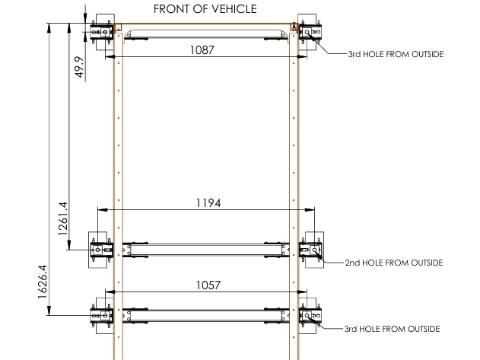

<p>Use this diagram for the distances and hole locations.</p>

Use this diagram for the distances and hole locations.

11
Step 11 of 14

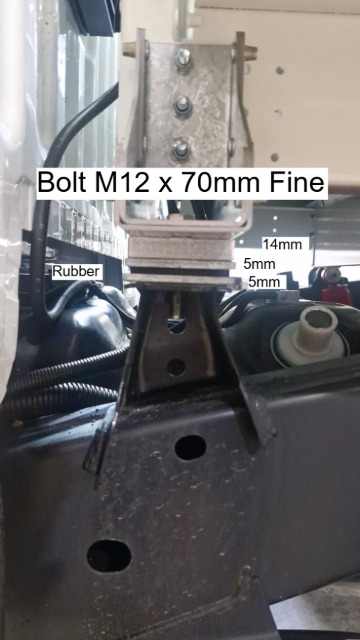

<p>TRITON EC FRONT</p><p>Distance from the front of the chassis: 49.9mm</p><p>Hole's position on the crossmember: Third hole from the outside</p>

TRITON EC FRONT

Distance from the front of the chassis: 49.9mm

Hole's position on the crossmember: Third hole from the outside

12
Step 12 of 14

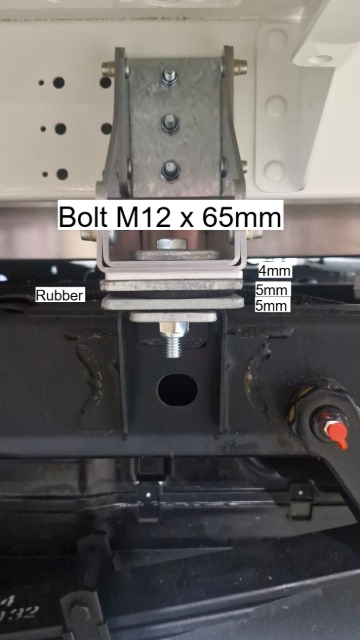

<p>TRITON EC MIDDLE</p><p>Distance from the front of the chassis: 11261.4mm</p><p>Hole's position on the crossmember: Second hole from the outside</p>

TRITON EC MIDDLE

Distance from the front of the chassis: 11261.4mm

Hole's position on the crossmember: Second hole from the outside

13
Step 13 of 14

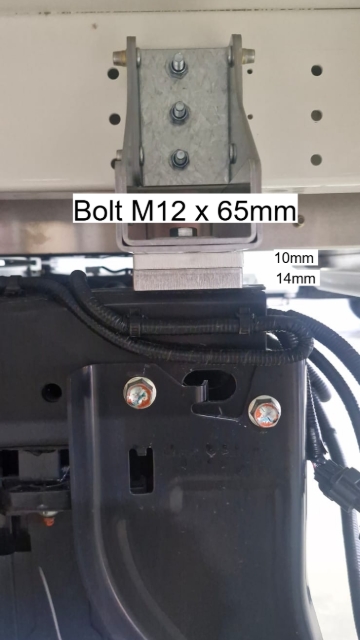

<p>TRITON EC REAR</p><p>Distance from the front of the chassis: 1626.4mm</p><p>Hole's position on the crossmember: Third hole from the outside</p>

TRITON EC REAR

Distance from the front of the chassis: 1626.4mm

Hole's position on the crossmember: Third hole from the outside

14
Step 14 of 14
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>If you have issues with instructions and need assistance, please contact.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:roman@camcoindustries.co.nz">roman@camcoindustries.co.nz</a></p><p>+64 21 349 001</p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>
