Fit Water Tank Outlet
1
Step 1 of 10

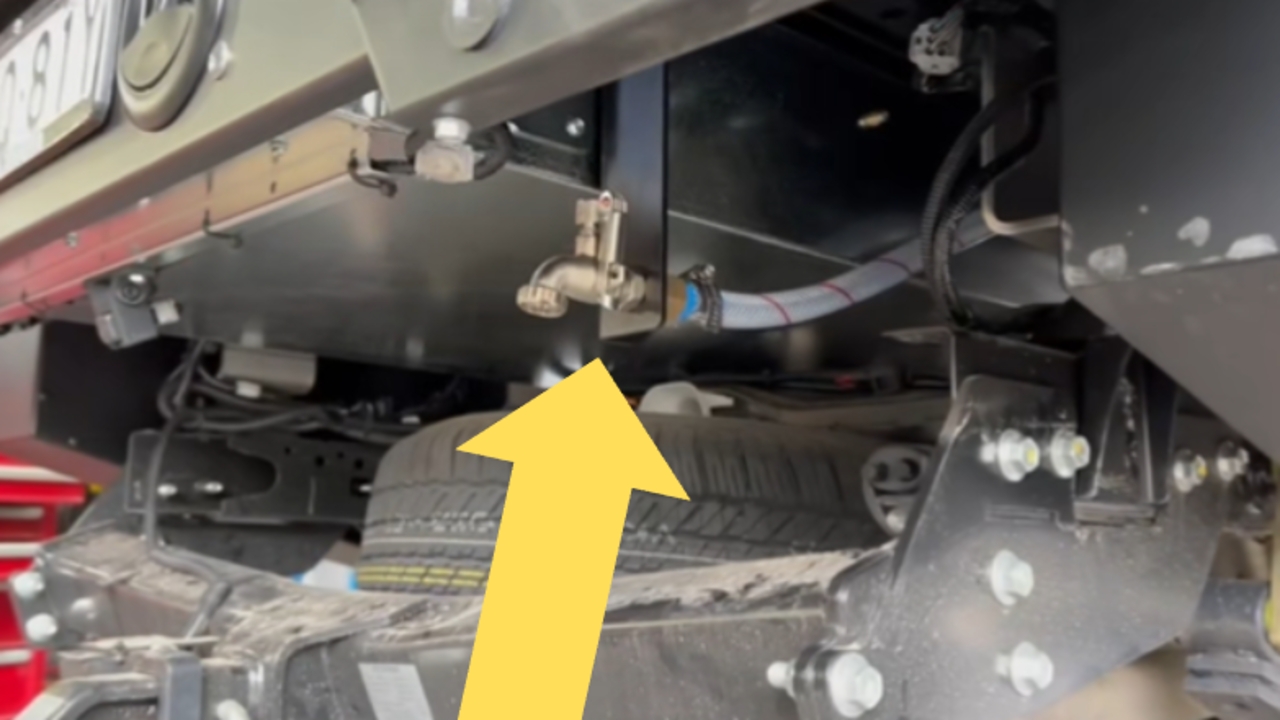

Will look like this when complete.

(may be on opposite side on some vehicles)

2
Step 2 of 10
<p><strong>Tools Required</strong></p> <ul> <li>Wire Cutters</li> <li>Sockets: 7mm, 13mm</li> </ul>

Tools Required

  • Wire Cutters
  • Sockets: 7mm, 13mm
3
Step 3 of 10

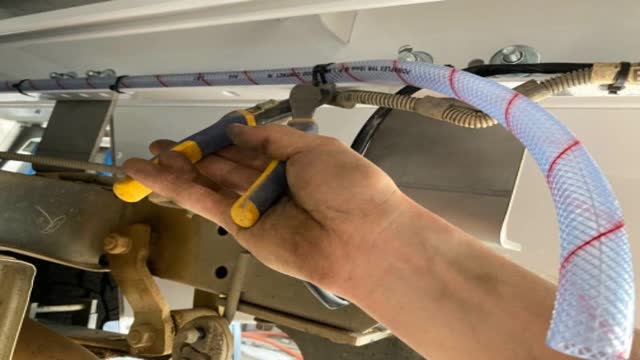

<p>If necessary, cut zip ties holding the water pipe, so outlet can be put in a nice location</p>

If necessary, cut zip ties holding the water pipe, so outlet can be put in a nice location

4
Step 4 of 10

Identify the supplied bracket

5
Step 5 of 10

Mount to rail. (same rail that a "Trundle Drawer" would usually mount to)

6
Step 6 of 10

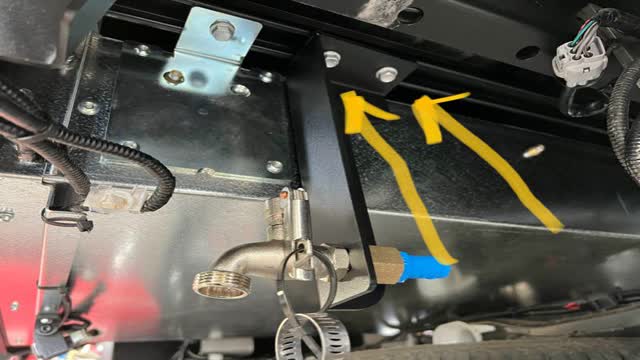

<p>Tighten using 13mm socket</p>

Tighten using 13mm socket

7
Step 7 of 10

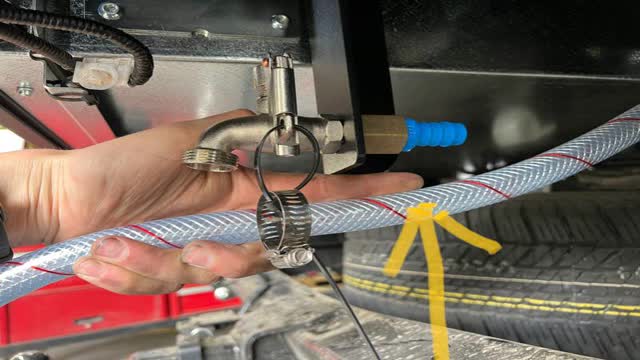

<p>Ensure hose runs a nice path, and trim hose to length</p>

Ensure hose runs a nice path, and trim hose to length

8
Step 8 of 10

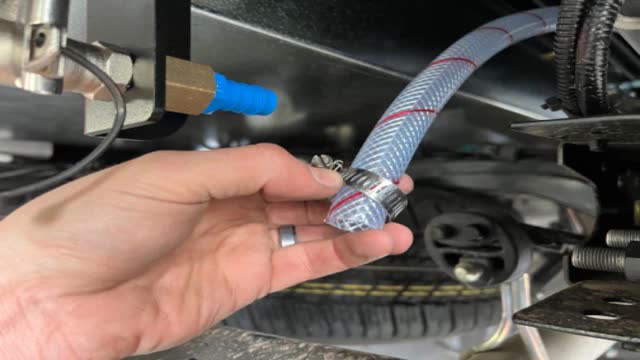

<p>Slide on the hose clamp</p>

Slide on the hose clamp

9
Step 9 of 10

TIP:  On a cold day, it is difficult to push the hose onto the tap fitting. Use boiling water or a heat gun to soften the hose 👌

10
Step 10 of 10

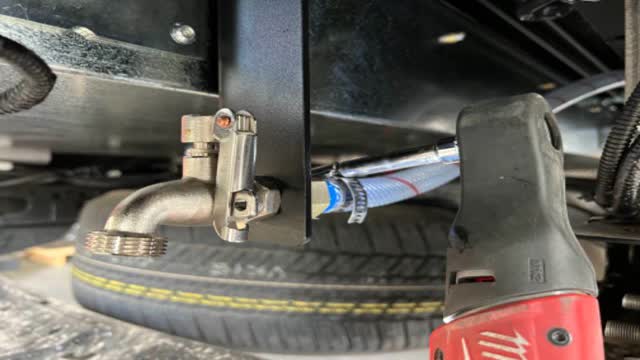

<p>Tighten clamp, 7mm</p>

Tighten clamp, 7mm
