TAIT Stage (Frame Panel Installation) (Jib)
How to install stage panels on stage frames using jib
How to install stage panels on stage frames using jib
1
Step 1 of 14

Setup

Requirements

  • 1 person on Forklift

  • 2 people on Floor

Equipment

  • Stage Frames (Assembled)

  • Stage Panels

  • Forklift

  • Panel Lifting Jib

PPE

  • Steel Cap Boots

  • Hi-Vis Vest

2
Step 2 of 14
<h1>Setup Workspace</h1><p></p><ul><li><p>Stage panels in the centre</p></li><li><p>Assembled frames on one side</p></li></ul><p></p>

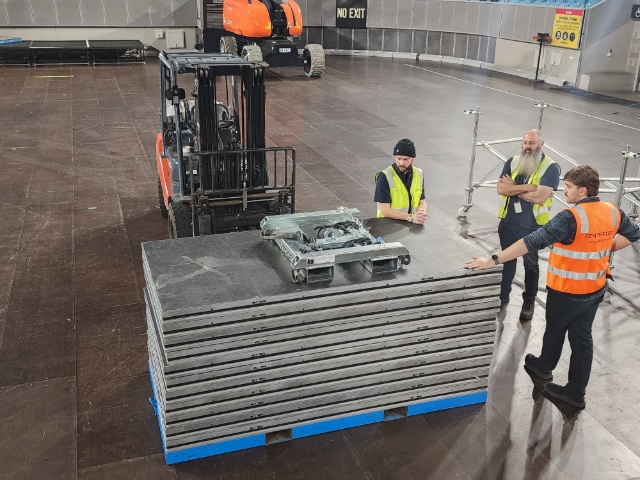

Setup Workspace

  • Stage panels in the centre

  • Assembled frames on one side

3
Step 3 of 14

Pick Up Jib

Pick up Jib and connect the chain.

4
Step 4 of 14

Insert Pins

Insert pins on second panel from top (unless it is the last stage frame in the row).

5
Step 5 of 14
<h1>Pro Tip: Insert Pins All The Way</h1><p></p><p>Ensure pins are inserted all the way</p><p></p>

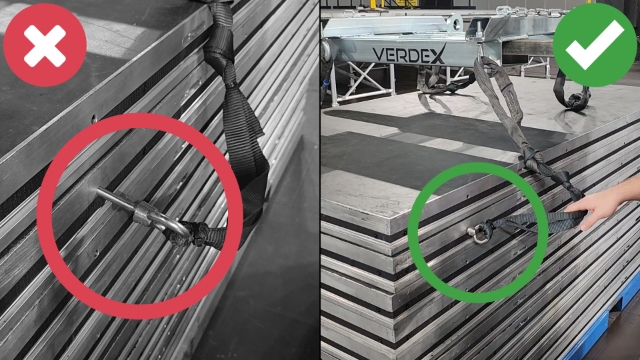

Pro Tip: Insert Pins All The Way

Ensure pins are inserted all the way

6
Step 6 of 14

Lift Panel(s)

Lift panel(s) and reverse forklift. Leave enough room that a stage frame can fit underneath.

7
Step 7 of 14

Position Frame

Position frame under panels and rotate corners so studs are facing outwards.

8
Step 8 of 14
<h1>Pro Tip: Hands Clear</h1><p></p><p>Keeps hands clear of the panel corners as it lowers to avoid pinching and crushing.</p>

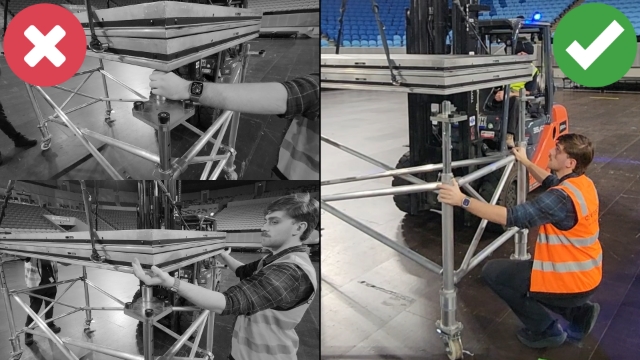

Pro Tip: Hands Clear

Keeps hands clear of the panel corners as it lowers to avoid pinching and crushing.

9
Step 9 of 14

Lower Panel(s)

Lower panels onto frame. Adjusting so that corner holes slot into studs.

10
Step 10 of 14

Pro Tip: Wing Nuts

If the panel is sitting up on the stud it could be due to the wingnut underneath.

Lift the panel and make sure the wing nuts under the panel in each corner are unfastened.

11
Step 11 of 14

Roll Out Frame

Pull out pins and roll frame to opposite side.

12
Step 12 of 14

Pro Tip: Do Not Walk Under Forklift

13
Step 13 of 14

Repeat

Repeat until all necessary panels are installed.

14
Step 14 of 14

Pro Tip: Last Frame in Row

Remember to only place one panel on the last frame in the row.

It does not require a bridge panel.
