WideTrac - How to use the Roll Over Cover

This Knowby will run you through step by step on how to use the WideTrac Roll Over Cover

This Knowby will run you through step by step on how to use the WideTrac Roll Over Cover

1

Step 1 of 11

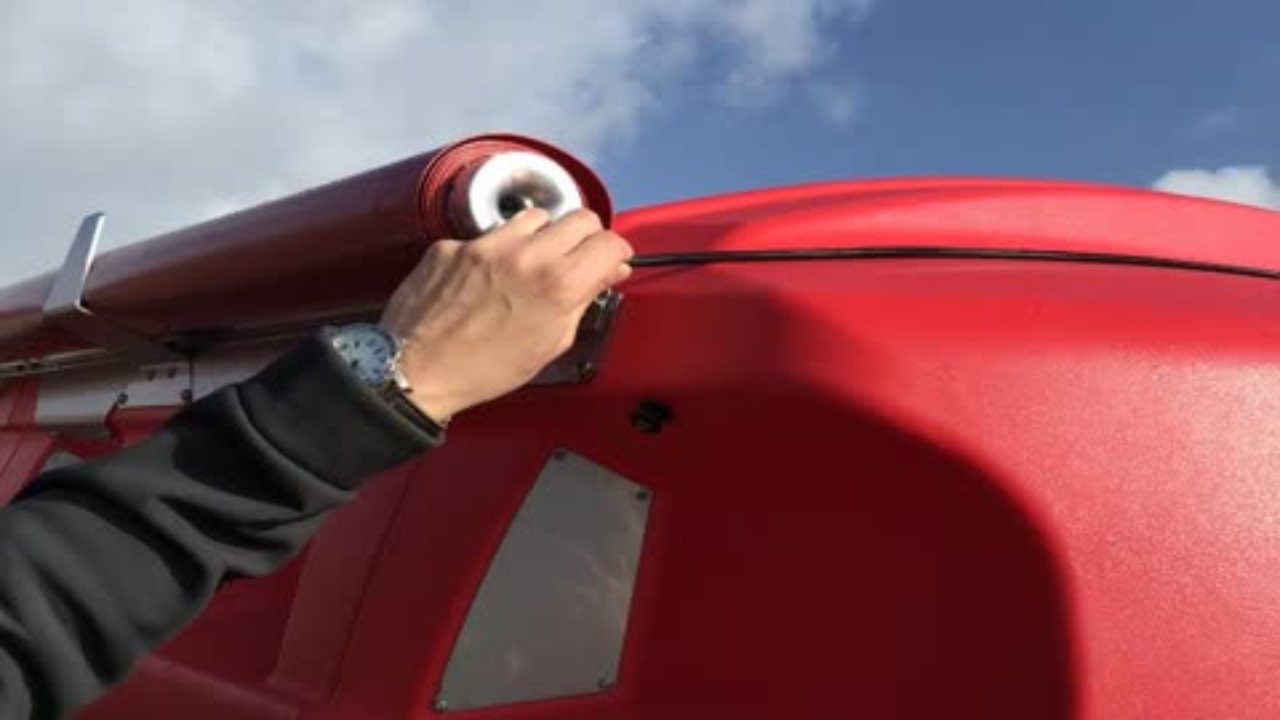

<p>At the front right of the spreader, release the bungee cord from the retaining lug.</p>

At the front right of the spreader, release the bungee cord from the retaining lug.

2

Step 2 of 11

At the rear, release the handle from its' stowage, and extend.

3

Step 3 of 11

Wind the cover out over the spreader.

4

Step 4 of 11

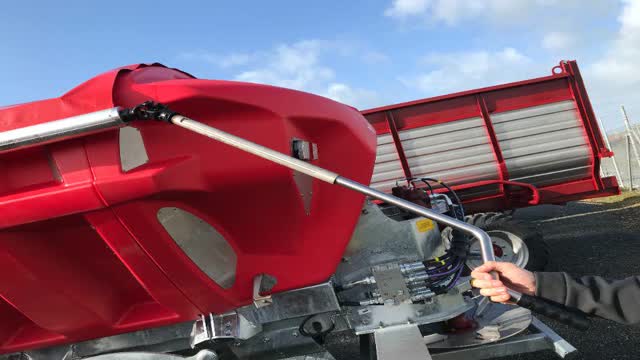

<p>Shorten the handle.</p>

Shorten the handle.

5

Step 5 of 11

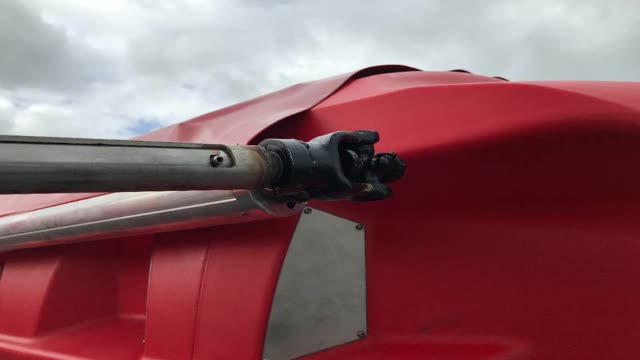

<p>Move the handle until the yoke looks as above.</p>

Move the handle until the yoke looks as above.

6

Step 6 of 11

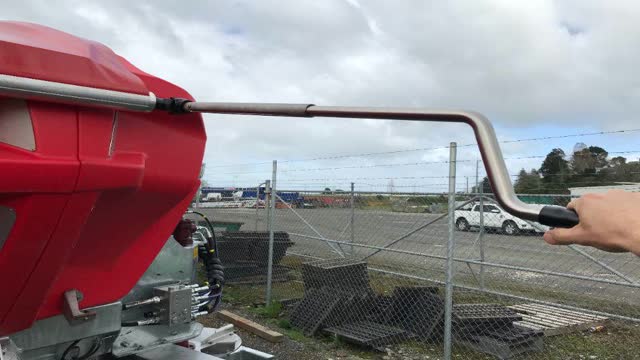

<p>The handle will be pointing out sideways.</p>

The handle will be pointing out sideways.

7

Step 7 of 11

Lever the handle down and inwards, tightening the cover.

8

Step 8 of 11

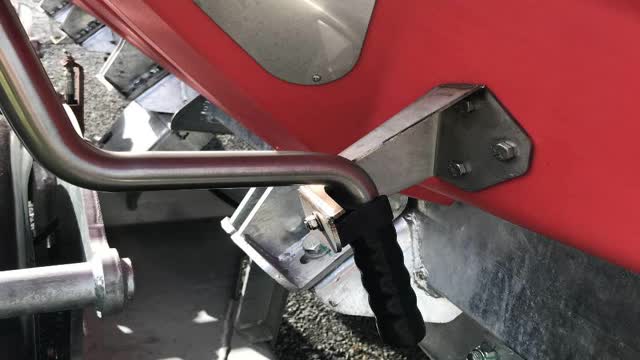

<p>Latch the handle into place.</p>

Latch the handle into place.

9

Step 9 of 11

At the front, hook the loose bungee cord around the catch.

10

Step 10 of 11

To un-cover, reverse the process

11

Step 11 of 11

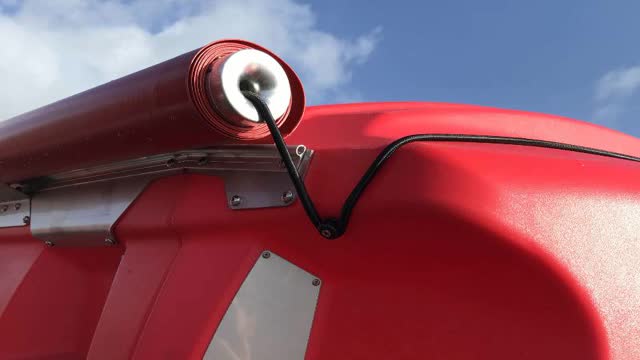

<p>The rolled up cover is held in place when open by hooking the bungee cord around the retaining lug.</p>

The rolled up cover is held in place when open by hooking the bungee cord around the retaining lug.
