CANOPY MOUNTING

Knowby

CANOPY MOUNTING

Canopy mounting on old style tray

Canopy mounting on old style tray

1

Step 1 of 10

Remove the Sideboards

2

Step 2 of 10

remove cargo tracks

3

Step 3 of 10

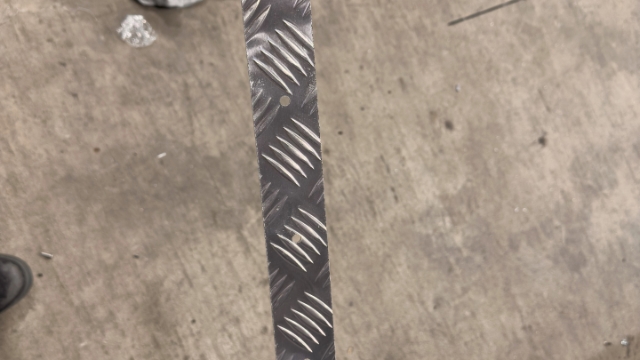

<p>if checkered floor tray fit the supplied filler pieces onto tray</p>

if checkered floor tray fit the supplied filler pieces onto tray

4

Step 4 of 10

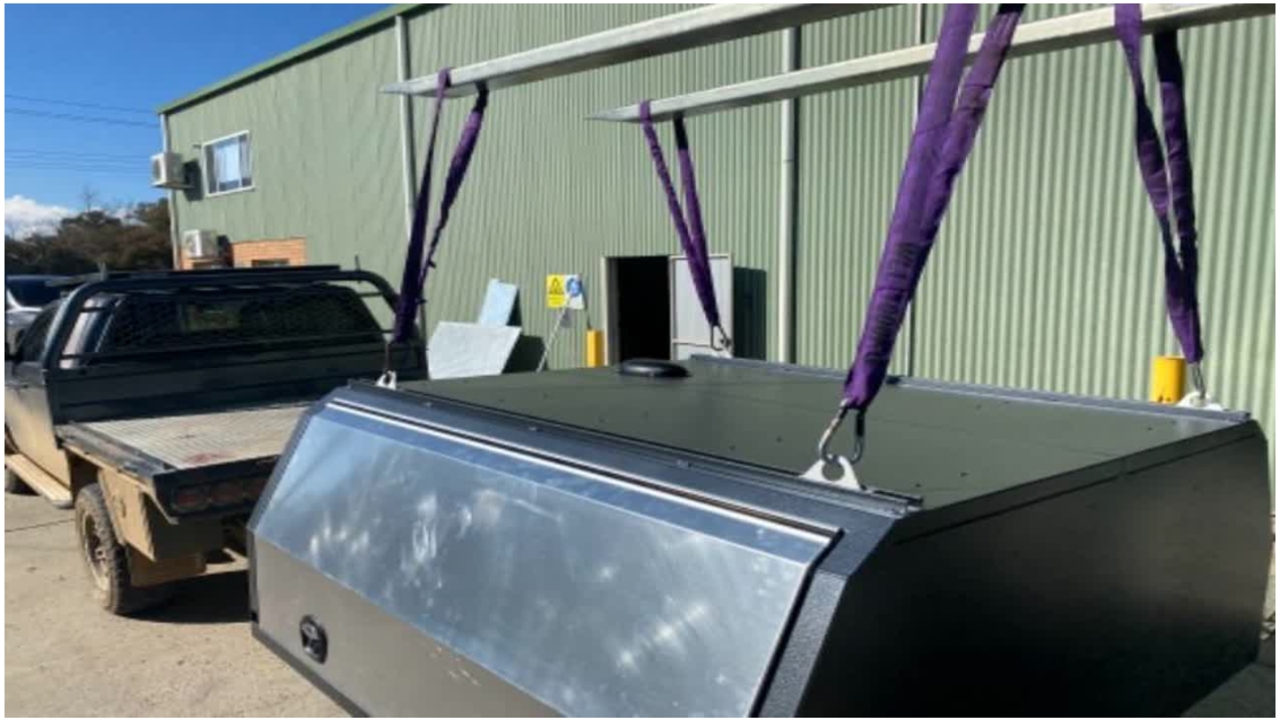

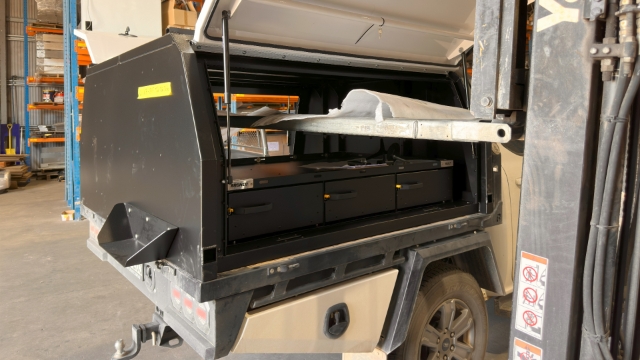

<p>use a suitable method to lift the canopy onto the tray</p>

use a suitable method to lift the canopy onto the tray

5

Step 5 of 10

align canopy squarely to tray and clamp tightly

6

Step 6 of 10

drill through the mounting holes on to tray from pre drilled holes on canopy ( use 13mm drill bit)

7

Step 7 of 10

clean of the metal shavings

8

Step 8 of 10

put the tray back on the tray and align the drilled holes and check canopy is square to tray

9

Step 9 of 10

insert the supplied fastneners and washers

10

Step 10 of 10

tighten them
