CANOPY, BYD SHARK 6
1
Step 1 of 72
2
Step 2 of 72

Contents (Click to view)

​STEP 4: Components List​

​STEP 11: Tools List​

​STEP 13: Torque Values​

​STEP 14: Battery​

​STEP 15: Fitting Kit Installation​

​STEP 48: Canopy Installation​

3
Step 3 of 72

Contents (Click to view)

​STEP 54: Cab to Canopy​

​STEP 66: Door Ajar Alarm/Central Locking​

​STEP 69: Fuse​

4
Step 4 of 72

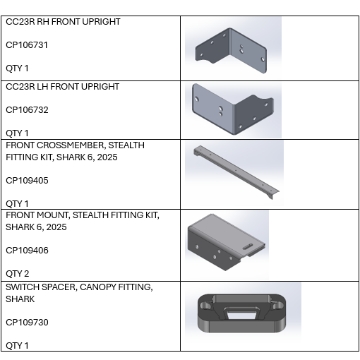

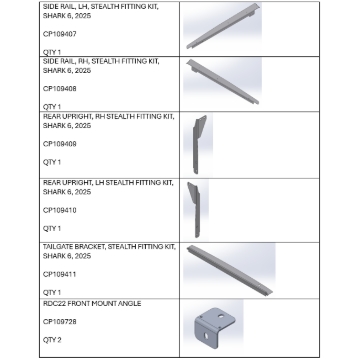

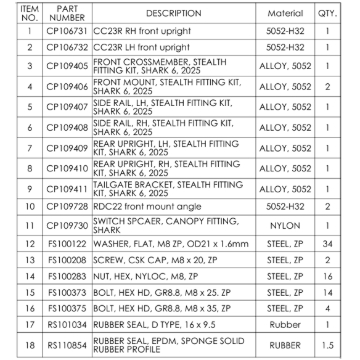

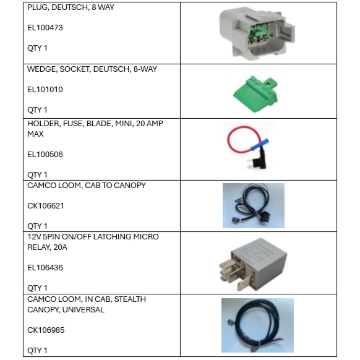

<p>Components List</p>

Components List

5
Step 5 of 72
6
Step 6 of 72
7
Step 7 of 72
<p></p>

8
Step 8 of 72
<p></p>

9
Step 9 of 72
10
Step 10 of 72
11
Step 11 of 72

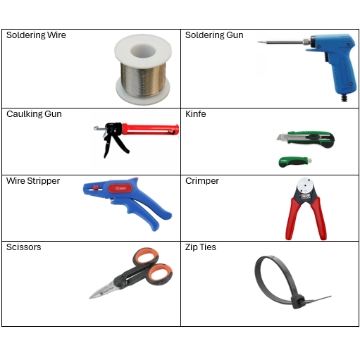

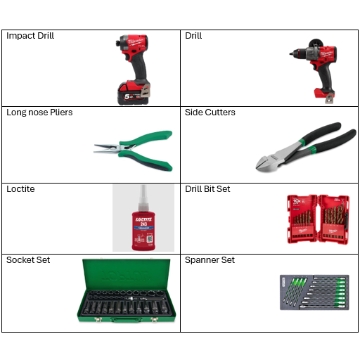

<p>Tool List</p>

Tool List

12
Step 12 of 72
13
Step 13 of 72

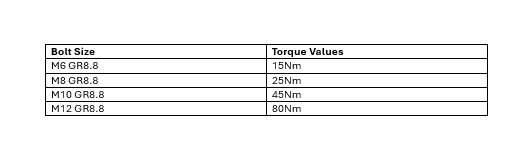

<p>Torque Values</p>

Torque Values

14
Step 14 of 72

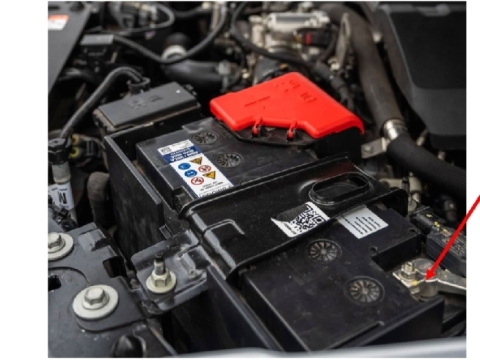

<p>Ensure to disconnect the negative terminal from the battery before starting.</p>

Ensure to disconnect the negative terminal from the battery before starting.

15
Step 15 of 72

Remove the original rail guards

16
Step 16 of 72

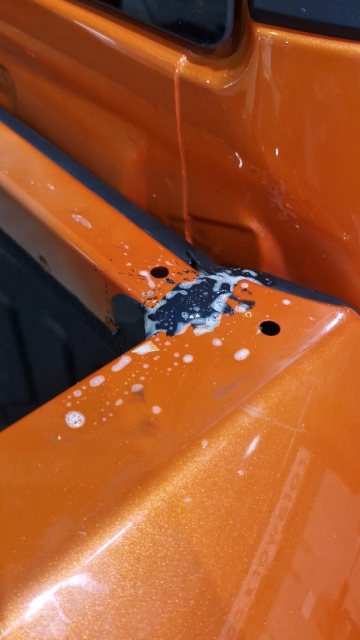

<p>Urethane the corners of the front of the wellside as shown. Ensuring it is tidy.</p>

Urethane the corners of the front of the wellside as shown. Ensuring it is tidy.

17
Step 17 of 72

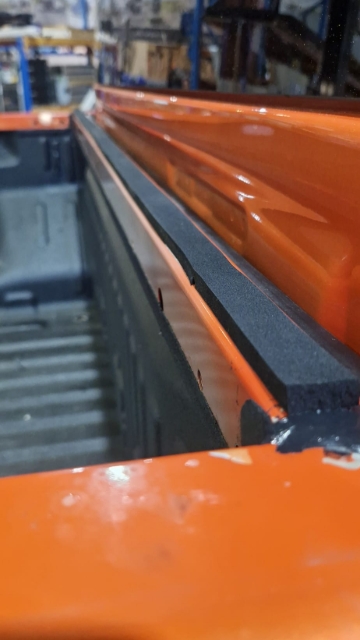

<p>Fit a strip of 19x9 foam tape along the front side of the wellside.</p><p>Ensure you use tape prep</p>

Fit a strip of 19x9 foam tape along the front side of the wellside.

Ensure you use tape prep

18
Step 18 of 72

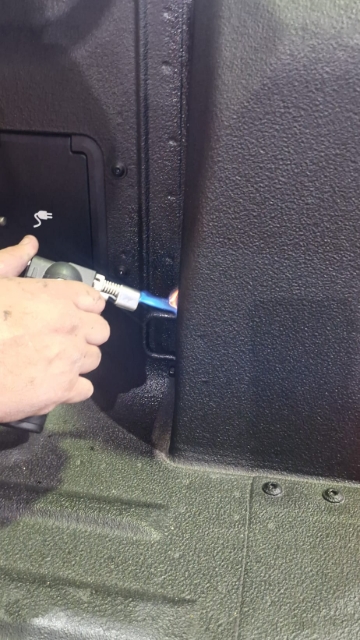

<p>Heat the rubber around  the tie-down points to remove them.</p>

Heat the rubber around the tie-down points to remove them.

19
Step 19 of 72

Remove the rear tie-down points.

20
Step 20 of 72

Attach the rear brackets (CP109409/10) to the tie-down point location. Reuse the tie-down points over top.

21
Step 21 of 72

Fit the front mounts (CP109728) to the front of the wellside as shown.

22
Step 22 of 72

Fit the front corner mounts (CP109406) to the front corner of the wellside.

23
Step 23 of 72

Fit the front cross member (CP109405) to the front of the wellside by placing it over the other mounts.

24
Step 24 of 72

Fit to front mounts using:

M8x25 CSK Bolts

M8 Washers

M8 Nylocs

25
Step 25 of 72

Use tape prep before applying the D-seal (RS101034), then place the D-seal tape as shown onto the side rails (CP109407/08).

26
Step 26 of 72

Place the side rails onto the wellside.

27
Step 27 of 72

Fit the side rail to the rear mount using:

M8x25 Bolts

M8 Washers

M8 Nylocs

28
Step 28 of 72

Fit the corner uprights (CP106731/32) as shown. Fit using:

X4 M8x35 Bolts

X8 M8x25 Bolts

M8 Washers

M8 Nylocs

29
Step 29 of 72

Tighten to join the fitting kits.

30
Step 30 of 72

Tighten the side rails to the rear upright mounts.

31
Step 31 of 72

Tighten the front crossmember to the front mounts as shown.

32
Step 32 of 72

Tighten the front mounts to the wellside as shown, ensure to use impact drill.

33
Step 33 of 72

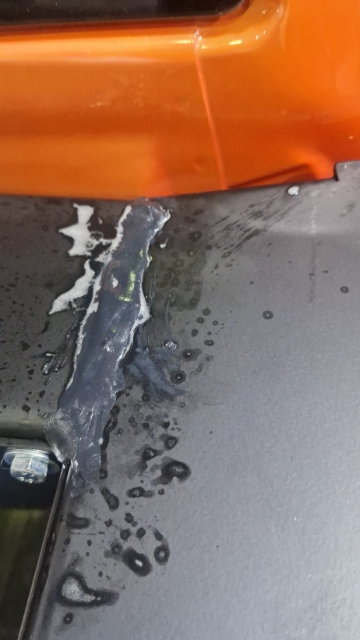

<p>Urethane the corners of the fitting kit.</p>

Urethane the corners of the fitting kit.

34
Step 34 of 72

Remove the tailgate guard as shown.

35
Step 35 of 72

Ensure you remove carefully to prevent damaging wiring.

36
Step 36 of 72

Remove the tail gate button from the guard.

37
Step 37 of 72

Fit the switch to the switch spacer (CP109730) as shown.

38
Step 38 of 72

Place double-sided tape on the sides of the switch spacer and urethane the other sides as shown.

Ensure to use tape prep

39
Step 39 of 72

Tape prep the tail gate rail (CP109411).

40
Step 40 of 72

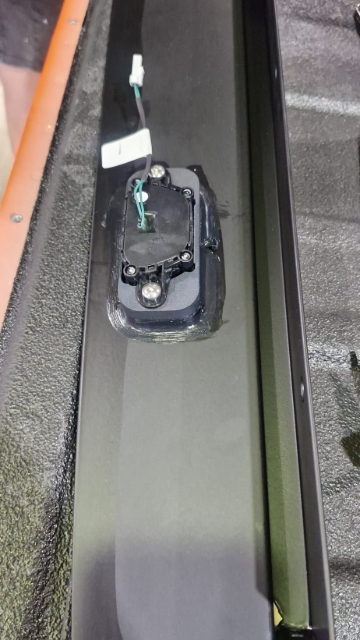

<p>Fit the switch to the tailgate rail and urethane around the edges to prevent leaking.</p>

Fit the switch to the tailgate rail and urethane around the edges to prevent leaking.

41
Step 41 of 72

Ensure the button is around the correct way as shown.

42
Step 42 of 72

Fit the D-seal rubber to the outer of the tailgate rail.

43
Step 43 of 72

Fit the tail gate bracket to the tailgate.

44
Step 44 of 72

Re-use the factory bolts.

45
Step 45 of 72

Secure to tailgate.

46
Step 46 of 72

Remove the tailgate screws on the panel shown.

47
Step 47 of 72

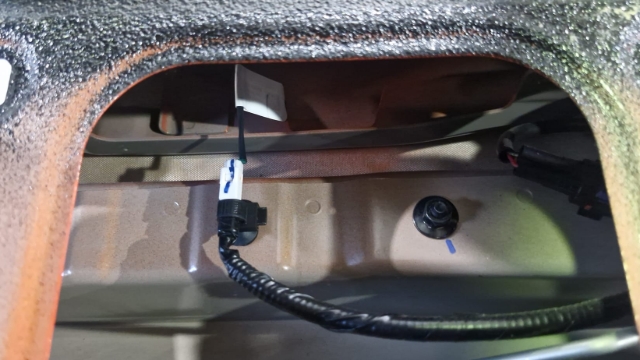

<p>Underneath the panel, reconnect the switch to the tailgate and reinstall the panel.</p>

Underneath the panel, reconnect the switch to the tailgate and reinstall the panel.

48
Step 48 of 72

Place 40 x 4.8mm foam tape around the bottom of the canopy.

Ensure to use tape prep

49
Step 49 of 72

With at least 4 guys, lift the canopy onto the wellside.

50
Step 50 of 72

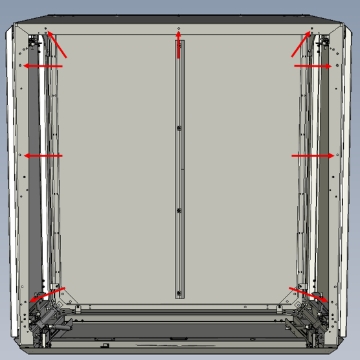

<p>Bolt Locations</p>

Bolt Locations

51
Step 51 of 72

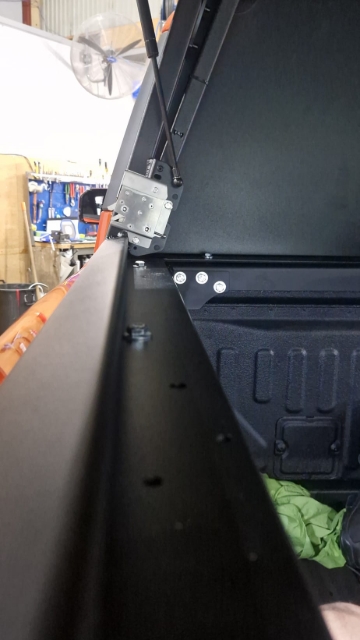

<p>Place all the bolts in the correct locations.</p>

Place all the bolts in the correct locations.

52
Step 52 of 72

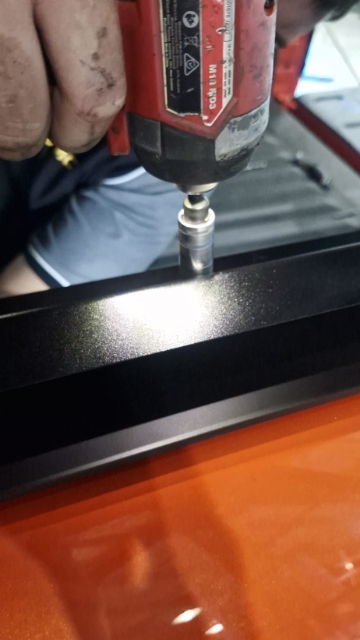

<p>Secure the canopy to the fitting kit.</p>

Secure the canopy to the fitting kit.

53
Step 53 of 72

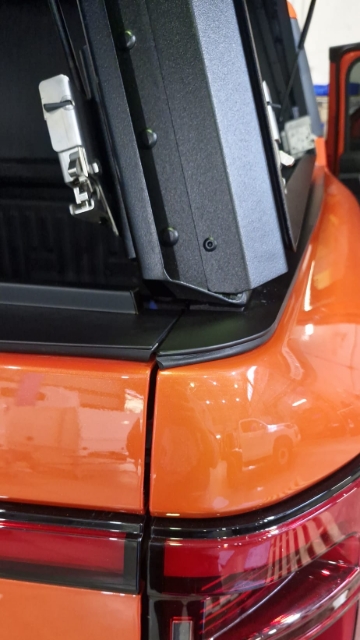

<p>Ensure the tailgate closes without hitting the canopy.</p>

Ensure the tailgate closes without hitting the canopy.

54
Step 54 of 72

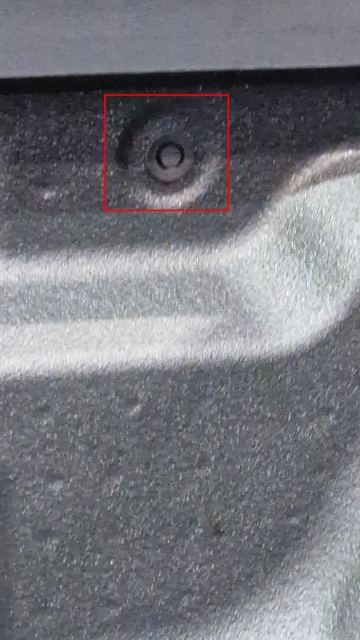

<p>Remove this grommet from the right-hand side of the wellside.</p>

Remove this grommet from the right-hand side of the wellside.

55
Step 55 of 72

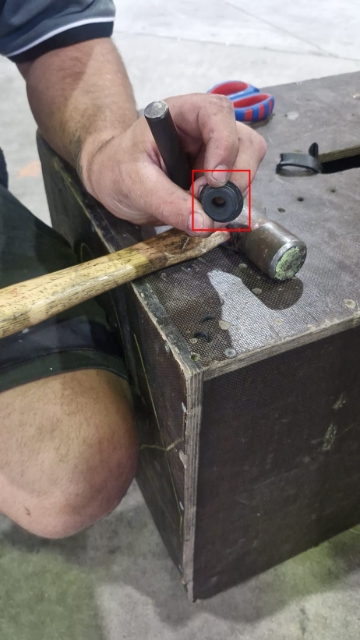

<p>Punch a hole through the grommet, big enough for the cab to canopy loom to pass through.</p>

Punch a hole through the grommet, big enough for the cab to canopy loom to pass through.

56
Step 56 of 72

Route the wiring through the hole where the grommet was.

57
Step 57 of 72

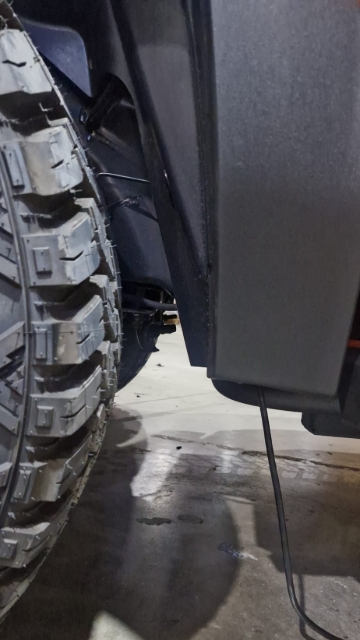

<p>Pull the loom out under the wheel arch.</p>

Pull the loom out under the wheel arch.

58
Step 58 of 72

Carefully undo the trim on the driver’s side of the vehicle to access the wiring.

59
Step 59 of 72

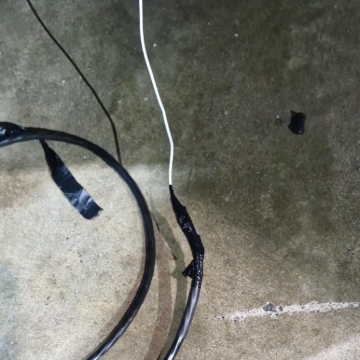

<p>To pull the loom through the backseat on the driver’s side, tie the coil wire to the loom to assist in pulling it through.</p>

To pull the loom through the backseat on the driver’s side, tie the coil wire to the loom to assist in pulling it through.

60
Step 60 of 72

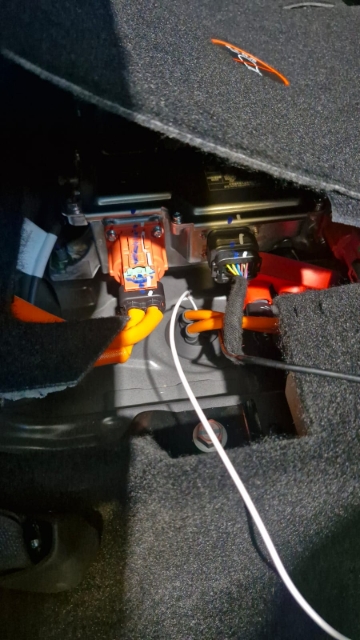

<p>Pull the wire out from under the back seat on the driver’s side.</p>

Pull the wire out from under the back seat on the driver’s side.

61
Step 61 of 72

Pull the loom all the way through.

62
Step 62 of 72

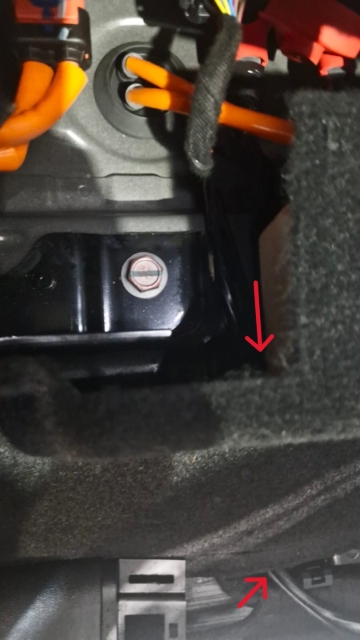

<p>Place the loom under the points indicated by the arrows and guide it down toward the driver’s seat.</p>

Place the loom under the points indicated by the arrows and guide it down toward the driver’s seat.

63
Step 63 of 72

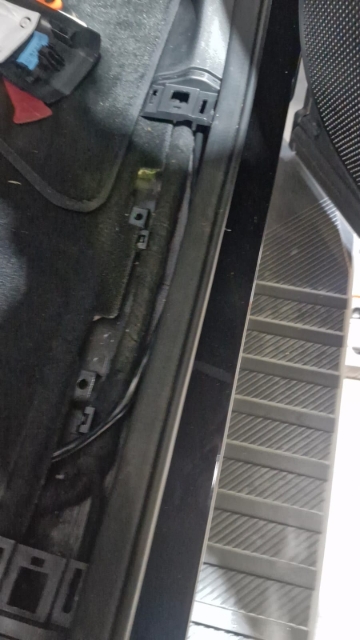

<p>Pull up the trim at the rear of the cab to route the wire underneath.</p>

Pull up the trim at the rear of the cab to route the wire underneath.

64
Step 64 of 72

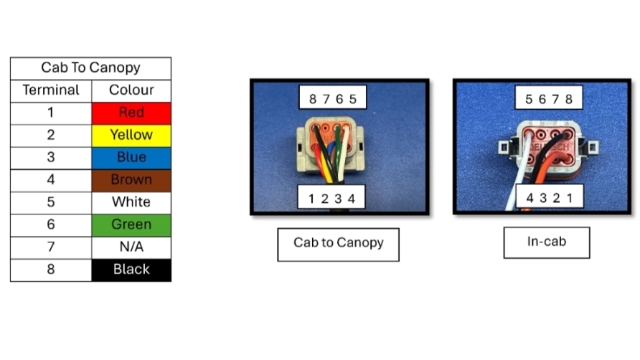

<p>Connect the loom to the Deutsch plug and connect the corresponding colours to the right number.</p>

Connect the loom to the Deutsch plug and connect the corresponding colours to the right number.

65
Step 65 of 72

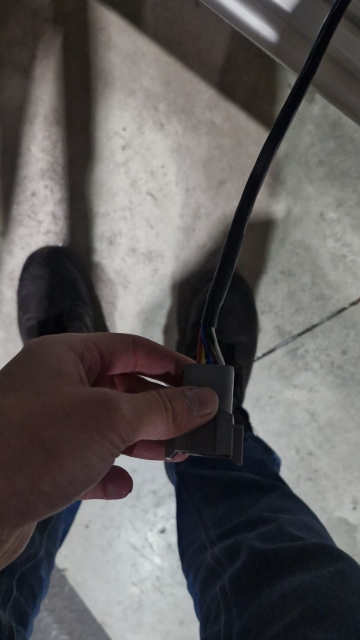

<p>Loom connected to the deutch plug.</p>

Loom connected to the deutch plug.

66
Step 66 of 72

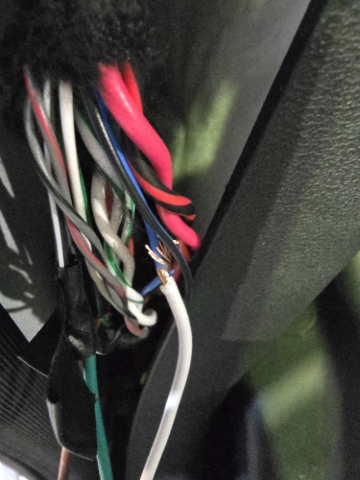

<p>Connect the white wire to the blue wire for the door alarm.</p>

Connect the white wire to the blue wire for the door alarm.

67
Step 67 of 72

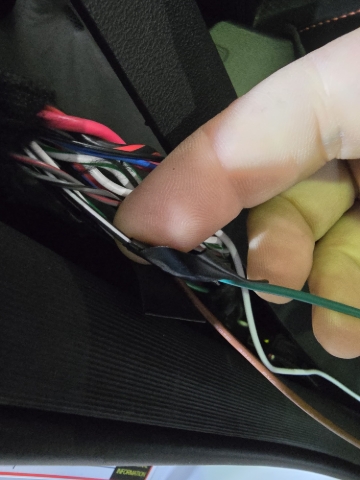

<p>Connect the green wire to the black wire with the white stripe.</p>

Connect the green wire to the black wire with the white stripe.

68
Step 68 of 72

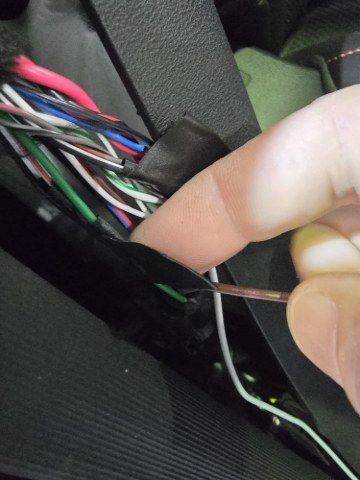

<p>Connect the brown wire to the green wire for the central locking.</p><p></p>

Connect the brown wire to the green wire for the central locking.

69
Step 69 of 72

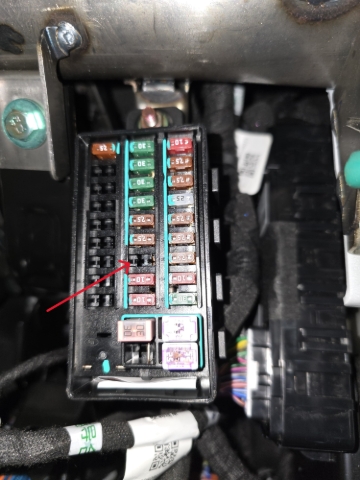

<p>The arrow indicates the location of the fuse.</p><p></p>

The arrow indicates the location of the fuse.

70
Step 70 of 72

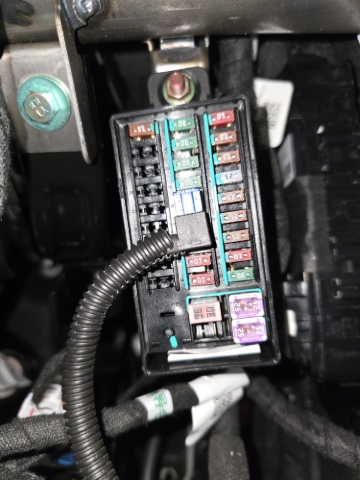

<p>Fuse is now fitted.</p>

Fuse is now fitted.

71
Step 71 of 72

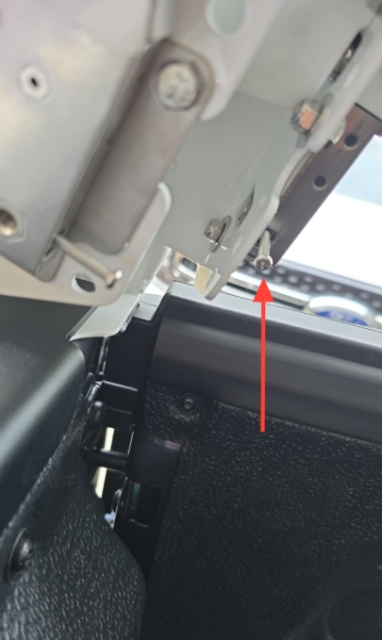

<p><span style="color: rgb(37, 37, 37); font-size: 22px; line-height: 1.4;">Remove this screw from each of the 6 latches</span></p>

Remove this screw from each of the 6 latches

72
Step 72 of 72
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
