Assemble the No. 1206 Stand by opening its legs and pushing down on the tray until legs are stiff. Ensure the stand is stable and not wobbling. Mount the RIDGID 300 Power Drive onto the stand using bolts and wing nuts. Make sure support bars are in the forward position and secure

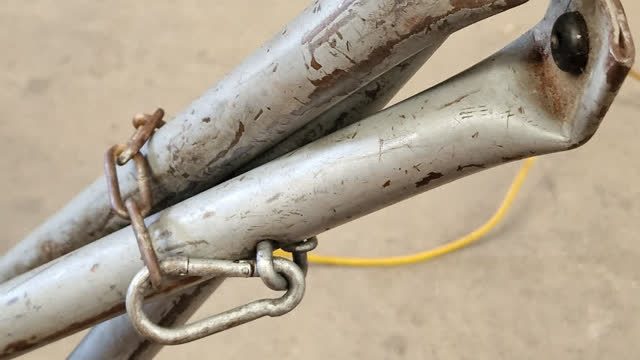

Ensure the chain is securely fastened and inspect the clip to confirm it's in proper working condition.

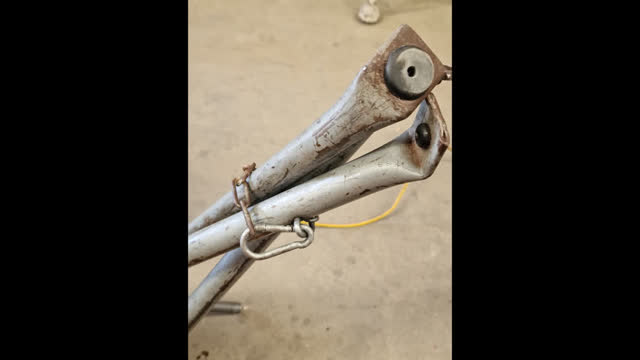

Verify that all three grommets are correctly fitted into their designated positions.

Conduct a thorough inspection to ensure that all bolts, wing nuts, screws, and other fasteners on the RIDGID 300 Power Drive and No. 1206 Stand are completely secured. Tighten any loose components.

Inspect the power cord of the RIDGID 300 Power Drive for any damage, fraying, or modifications.

Check that all cable clamps on the RIDGID 300 Power Drive are securely fastened and in good condition.

Examine the plug of the RIDGID 300 Power Drive to ensure it is safe for use. Confirm that it is not damaged, modified, or missing its grounding pin.

Perform a Portable Appliance Test (PAT) on the RIDGID 300 Power Drive to ensure its electrical components are functioning safely. Make sure the machine passes all safety checks and standards. Record the test results and date for compliance and tracking purposes.

Test the foot switch of the RIDGID 300 Power Drive to confirm it's fully functional. Make sure it provides ON/OFF control of the motor as designed. The switch should engage and disengage smoothly, without sticking or delays, ensuring safe and precise operation.

Validate the functionality of the Forward (clockwise) and Reverse (counterclockwise) gears on the RIDGID 300 Power Drive. Use the FOR/OFF/REV switch to toggle between modes. Confirm that rotation in both directions is smooth and without obstruction.

Inspect the front and rear spindle bearings of the RIDGID 300 Power Drive to ensure they are well-lubricated. Apply grease as needed.

Check the carriage rails on the RIDGID 300 Power Drive to confirm they are securely fastened and aligned.. Tighten any loose components to ensure accurate and safe performance.

Attach the 311A Carriage to the RIDGID 300 Power Drive, ensuring it slides smoothly along the carriage rails. Tighten the collar assembly thumb screw into the groove on the support bar for secure attachment.

Inspect the lever arm assembly attached to the 311A Carriage. Slide the lever arm through the eyebolt assembly and secure it to the collar assembly using the provided shoulder bolt. Ensure the entire assembly is tightly fastened and stable.

Test the carriage to confirm it is correctly aligned and moves freely along the carriage rails. Manually slide the carriage back and forth to check for any obstructions or friction.

Test the handle of the Pipe Cutter to ensure it moves freely without any obstructions or stiffness. The handle should rotate smoothly, providing easy control during the cutting operation.

Inspect the frame of the 360 Cutter to confirm it is free-moving and well-aligned. The frame should glide smoothly along its designated path without any obstructions or friction.

Examine the cutter wheel of the 360 Cutter for any signs of wear, damage, or cracks. An intact and sharp cutter wheel is crucial for achieving clean and precise cuts. Replace the wheel if it shows any signs of wear or damage to ensure optimal performance.

Verify the functionality of the Die Head configured for 1/2"-3/4" pipe sizes. Ensure that it mounts securely into its mating hole in the Carriage.

Confirm the functionality of the Die Head configured for 1"-2" pipe sizes. Make sure it securely fits into the designated hole in the Carriage.

Inspect all dies in the Die Heads for proper setting and sharpness. Ensure that they are correctly aligned and capable of creating clean, precise threads. Replace any dull or damaged dies.

Check the Reamer for central alignment and full functionality. Insert the reamer's arm into the slot provided in the Carriage and secure it with the drive pin. Test the reamer to ensure it rotates smoothly and removes burrs effectively from pipe edges.

Examine the front hammer chuck on the RIDGID 300 Power Drive to ensure it moves freely without excessive slack or play. The chuck should grip and release pipes securely without wobbling.

Test the chuck jaws on the RIDGID 300 Power Drive to confirm they close centrally and evenly. Proper alignment is crucial for gripping the workpiece securely during operations. Any misalignment could lead to slippage or damage to the material being worked on.

Clean the jaw inserts on the RIDGID 300 Power Drive using a wire brush to remove any debris or buildup. Inspect for excessive wear and replace them if needed.

Verify that the rear centering device on the RIDGID 300 Power Drive closes centrally and evenly.

Inspect the oil bucket and chip tray for functionality. The oil bucket should be free of leaks and capable of holding cutting oil. The chip tray should securely collect metal shavings and debris.

Test the oil pump gun to ensure it's fully functional. Confirm that it dispenses oil smoothly and consistently, without any leaks or blockages.

Confirm the presence of one drip tray and inspect it for any cracks, leaks, or damage.

Perform an operational test by running the RIDGID 300 Power Drive under load. Conduct a test thread, ream, and cut on a sample pipe. Ensure the motor runs smoothly throughout these operations without any hiccups or overheating.

Thoroughly clean the RIDGID 300 Power Drive, removing any oil, grease, or metal shavings from its components. Wipe down handles and controls to ensure a secure grip.

Verify that the THX branding is affixed in a visible and secure manner. Ensure that the branding is intact and not faded.

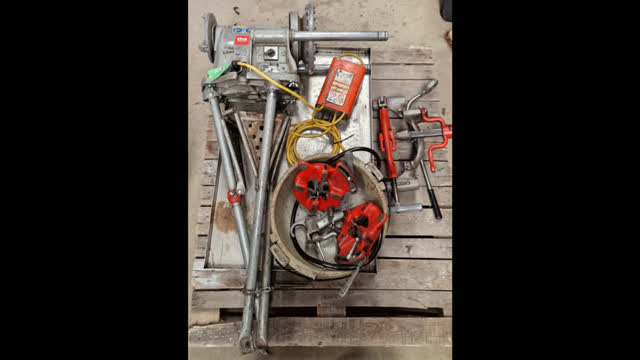

Arrange the RIDGID 300 Power Drive and all its accessories neatly on a pallet, ready for hire. Confirm that all items are present, accounted for, and organized in a manner consistent with the image for optimal client experience.
