Contents (Click to view)

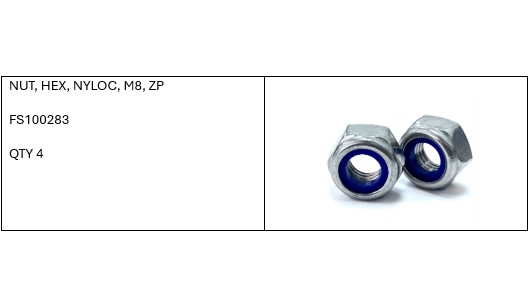

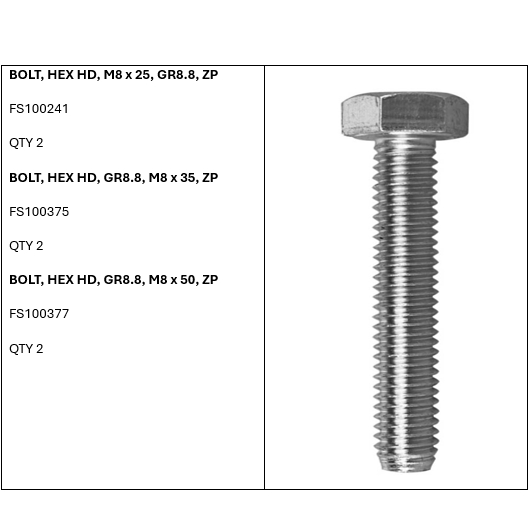

Components List

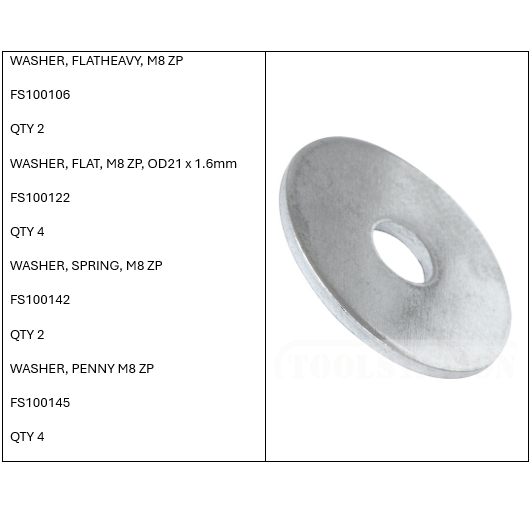

Components List
Components List

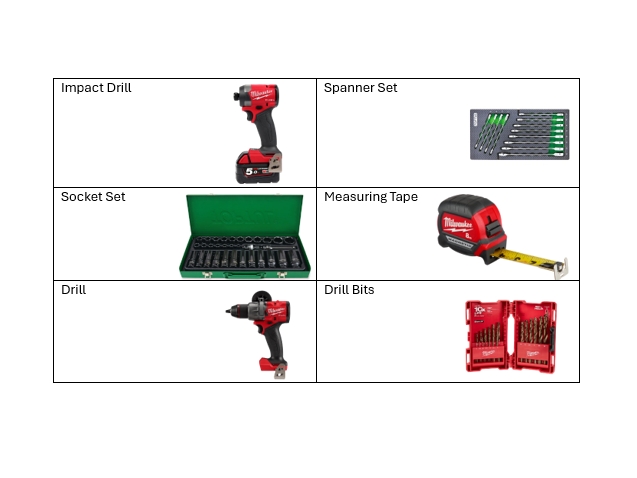

Tools List

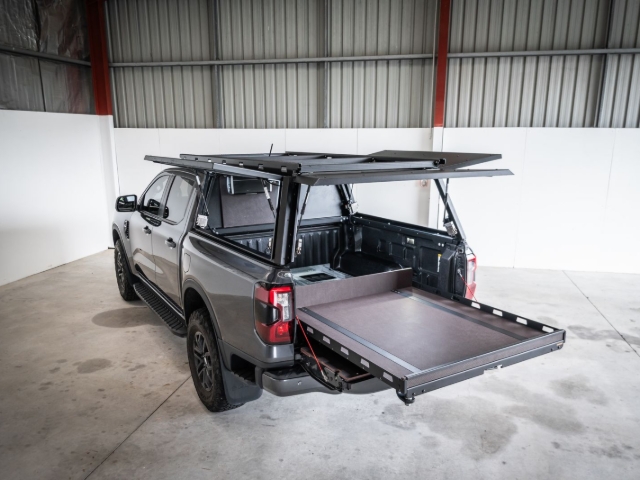

Lift the Roll-A-Table in to the wellside of the vehicle with atleast 4 guys carefully to prevent damage

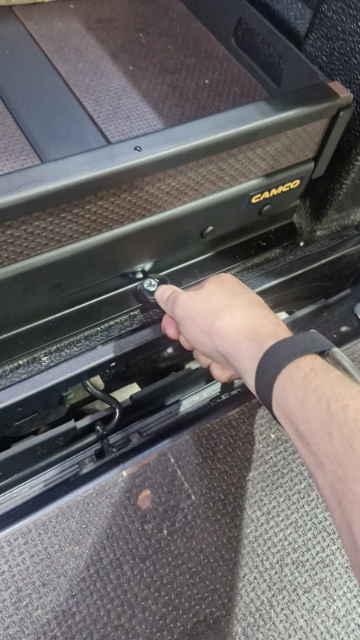

When mounting the Roll-A-Table to the rear of the wellside, make sure it is centred. Sit it 10-20mm from the rear of the wellside and drill through, ensuring nothing is below.
Mount to the wellside using:
x2 M8 x 35 Hex HD Bolts
x2 M8 Penny Washers
x2 Flat M8 Washer
x2 M8 Nylocs
2 man job to mount it to the wellside.
Before mounting the Roll-A-Table to the front of the wellside, ensure it is centred
Drill through the drawer and wellside as shown, ensuring nothing is below.
Mount to the wellside using:
x2 M8 x 50 Hex HD Bolts
x

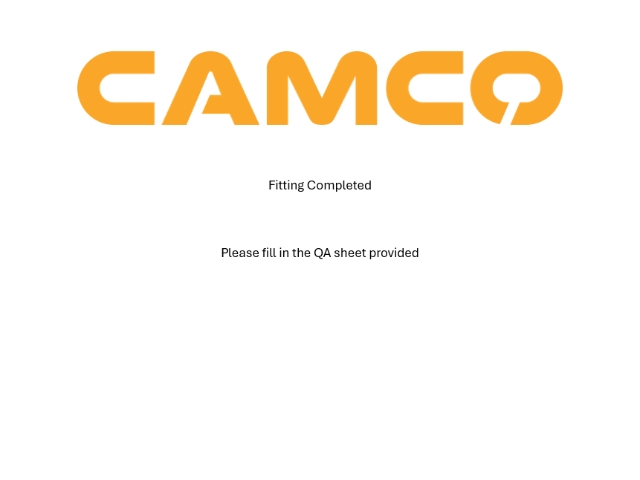

Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If the hard copy does not arrive, please contact us.
0800 663 500
