xFuel Filler, GMC Sierra

Knowby

xFuel Filler, GMC Sierra

1

Step 1 of 13

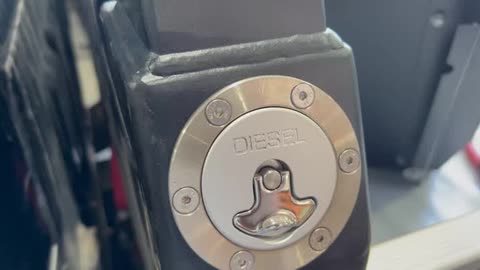

Looks like this when done

2

Step 2 of 13

Remove original filler

3

Step 3 of 13

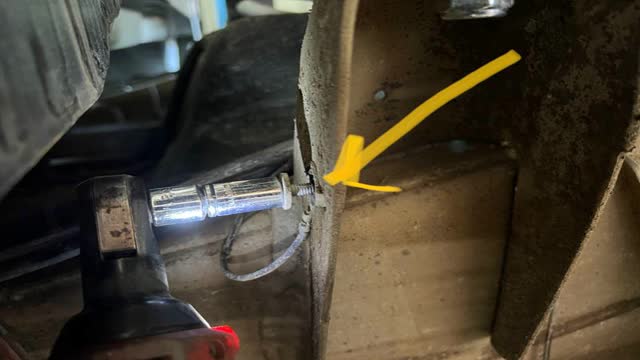

<p>Remove earth cable,10mm
It is not reused</p>

Remove earth cable,10mm It is not reused

4

Step 4 of 13

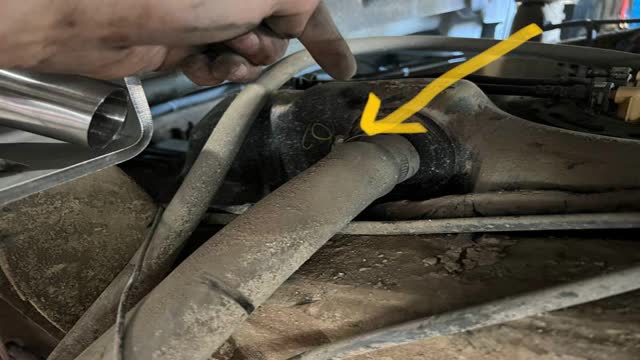

<p>Undo clamp on tank</p>

Undo clamp on tank

5

Step 5 of 13

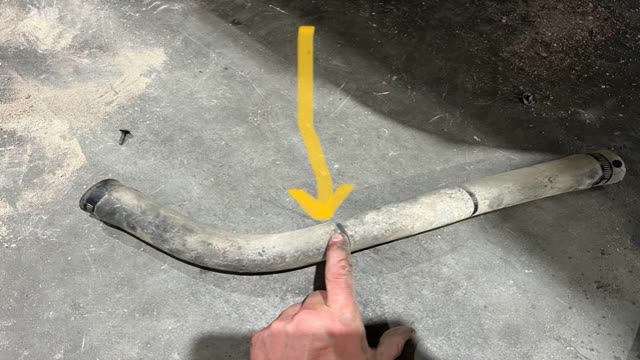

<p>Cut filler pipe here</p>

Cut filler pipe here

6

Step 6 of 13

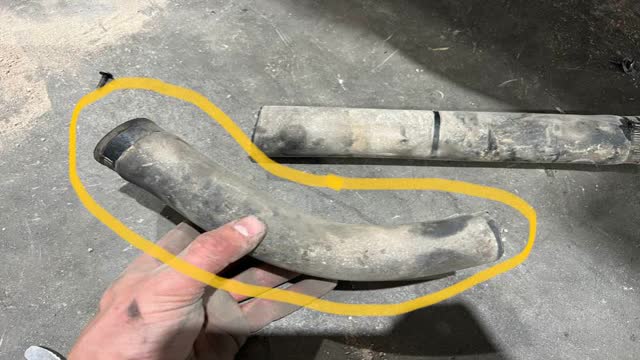

<p>Keep this part</p>

Keep this part

7

Step 7 of 13

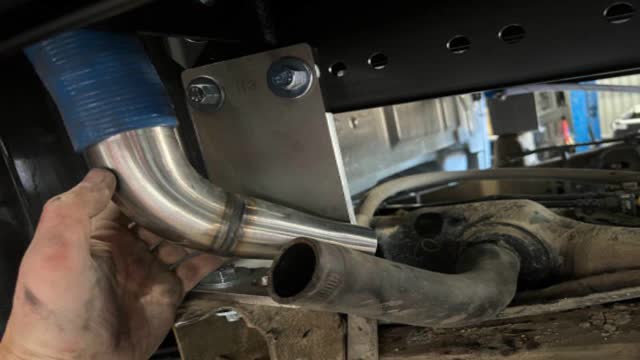

<p>Refit hose</p>

Refit hose

8

Step 8 of 13

Should look like this

9

Step 9 of 13

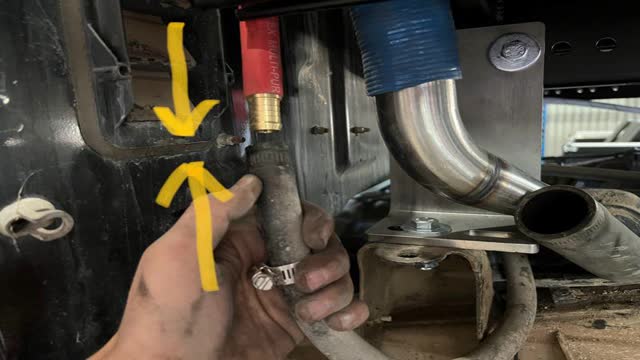

<p>Connect breather</p>

Connect breather

10

Step 10 of 13

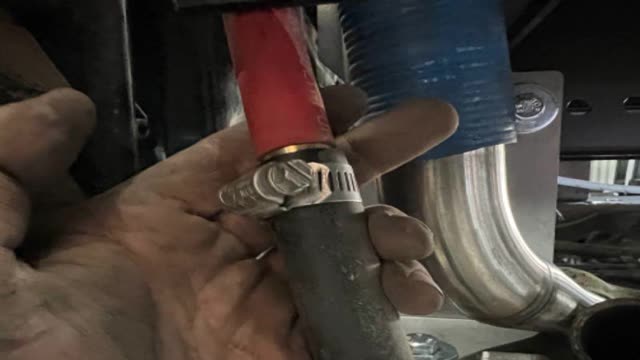

<p>Tighten clamp</p>

Tighten clamp

11

Step 11 of 13

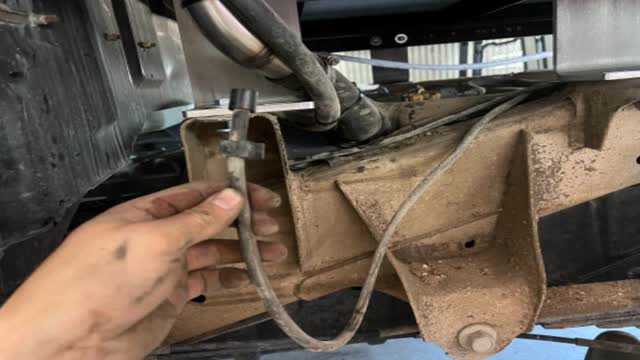

<p>Identify the diff breather</p>

Identify the diff breather

12

Step 12 of 13

Zip tie everything up neatly

13

Step 13 of 13

Should look like this when done
