Plant wash am

Knowby

Plant wash am

1

Step 1 of 31

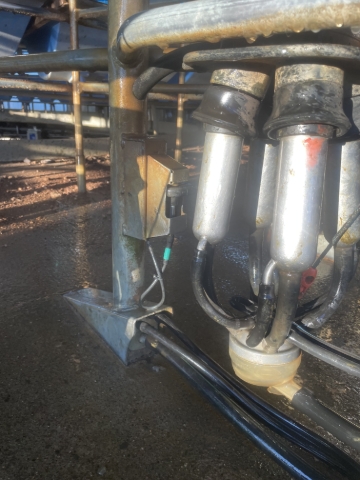

<p>After milking hang up cups-remember to lock down the latch</p>

After milking hang up cups-remember to lock down the latch

2

Step 2 of 31

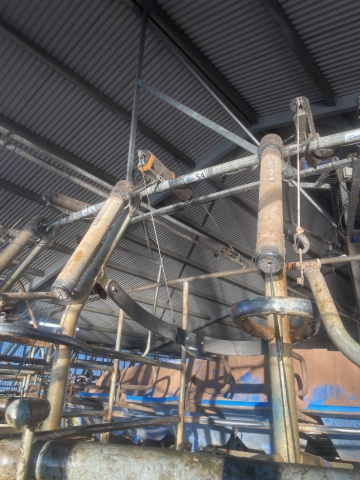

<p>Once all cups are on to the jetters and locked down stop the platform at bale 54 at cups on</p>

Once all cups are on to the jetters and locked down stop the platform at bale 54 at cups on

3

Step 3 of 31

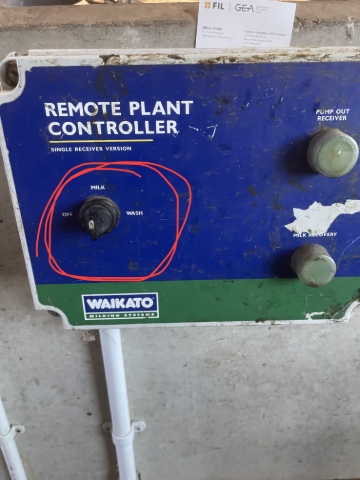

<p>Hold pump out receiver button Untill milk pump has pumped all milk</p><p></p><p>Then push Milk recovery</p><p></p><p>Then turn the button circled in red to wash</p>

Hold pump out receiver button Untill milk pump has pumped all milk

Then push Milk recovery

Then turn the button circled in red to wash

4

Step 4 of 31

Turn off cooler tap

5

Step 5 of 31

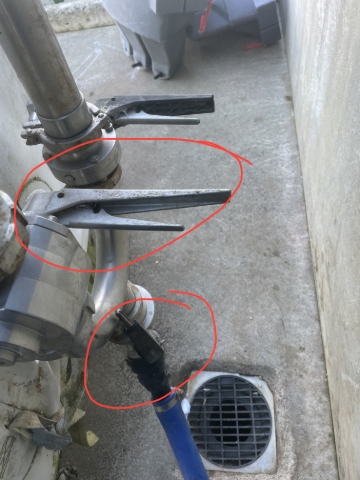

<p>Close the vat</p><p>Open the drain pipe </p>

Close the vat

Open the drain pipe

6

Step 6 of 31

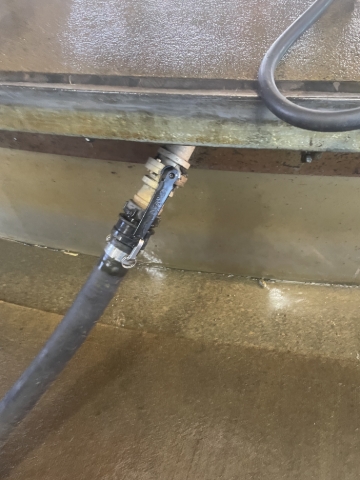

<p>Hook up wash line and open</p><p>cold water will start going to “rinse” the plant</p>

Hook up wash line and open

cold water will start going to “rinse” the plant

7

Step 7 of 31

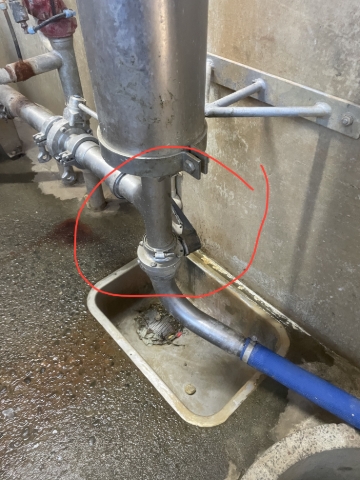

<p>Open this tap here under filter sock while cold water is going through </p>

Open this tap here under filter sock while cold water is going through

8

Step 8 of 31

<p>Once cold water has all gone through. Turn off this tap</p>

Once cold water has all gone through. Turn off this tap

9

Step 9 of 31

<p>Fill tub with hot water from “cups” cylinder </p>

Fill tub with hot water from “cups” cylinder

10

Step 10 of 31

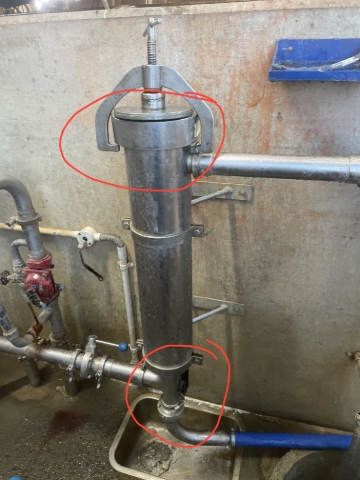

<p>Take out filter sock and put on a new one - old one into bin</p><p>then put back together and close the bottom tap</p>

Take out filter sock and put on a new one - old one into bin

then put back together and close the bottom tap

11

Step 11 of 31

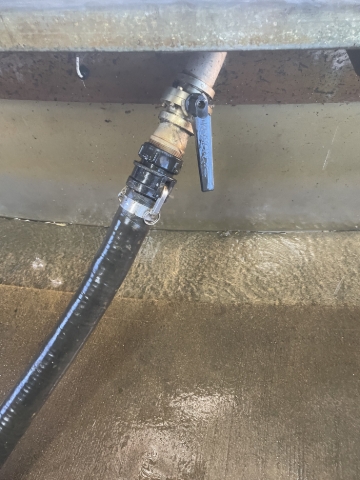

<p>Open this tap about half way to suck hot water into plant</p>

Open this tap about half way to suck hot water into plant

12

Step 12 of 31

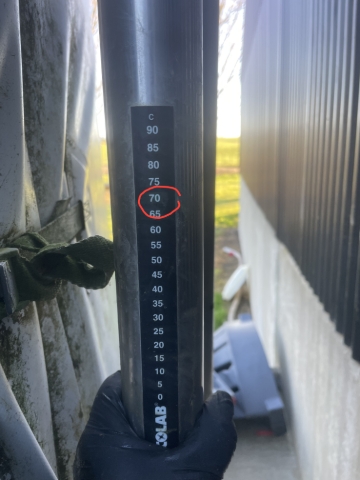

<p>Out by the vat where you close and open it there is a heat sticker - wait for this to get to 70 degrees </p>

Out by the vat where you close and open it there is a heat sticker - wait for this to get to 70 degrees

13

Step 13 of 31

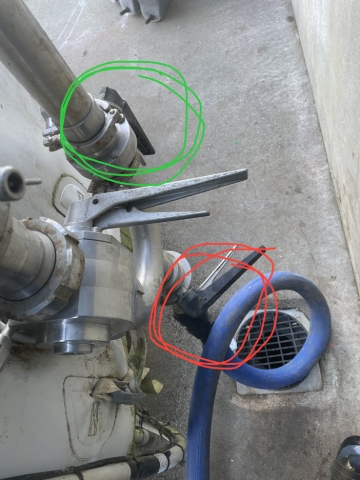

<p>Once at 70 degrees </p><p>Open the recycle tap - green</p><p>Close the drain tap - red</p><p>this makes hot water go back around and enter the wash tub</p><p>We want the hot water to circulate around the cups for around 5mins </p>

Once at 70 degrees

Open the recycle tap - green

Close the drain tap - red

this makes hot water go back around and enter the wash tub

We want the hot water to circulate around the cups for around 5mins

14

Step 14 of 31

<p>You can now open this tap wide open </p>

You can now open this tap wide open

15

Step 15 of 31

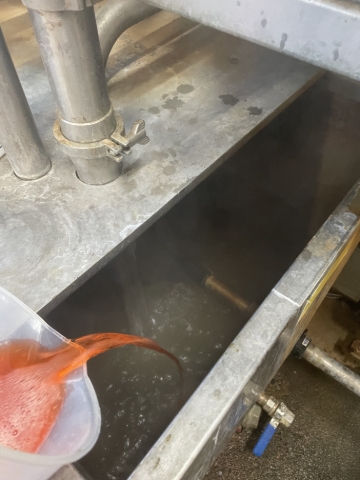

<p>Add your chemical to the hot water</p>

Add your chemical to the hot water

16

Step 16 of 31

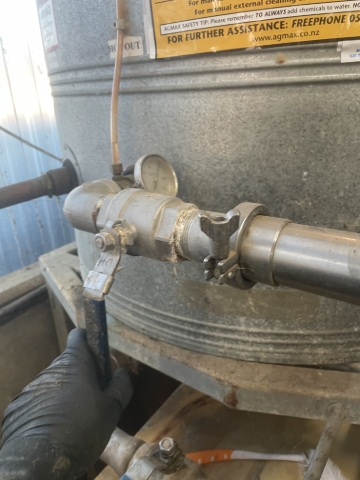

<p>Make sure the hot water cylinder is closed so that it can fill back up</p>

Make sure the hot water cylinder is closed so that it can fill back up

17

Step 17 of 31

Let the hot wash recycle for 5mins

18

Step 18 of 31

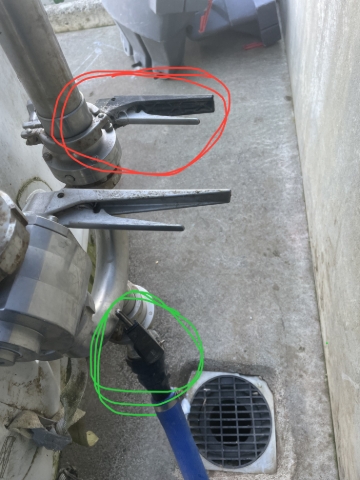

<p>Now we will “dump” the hot water by closing the recycle- red </p><p>And open the drain - green</p>

Now we will “dump” the hot water by closing the recycle- red

And open the drain - green

19

Step 19 of 31

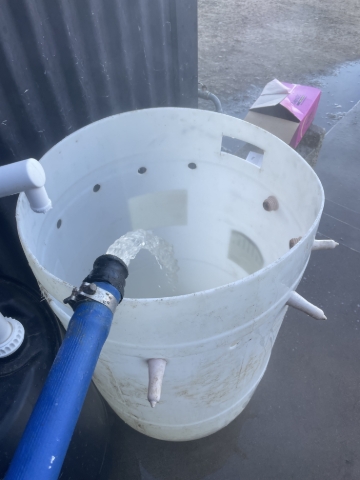

<p>You can save this hot water for cleaning calf gear - just be careful it will still be very hot</p>

You can save this hot water for cleaning calf gear - just be careful it will still be very hot

20

Step 20 of 31

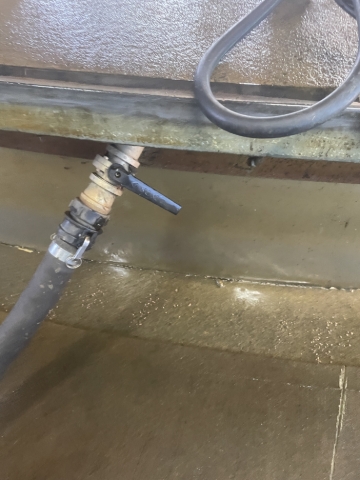

<p>Once all the hot water has gone out of plant you can turn off this tap</p>

Once all the hot water has gone out of plant you can turn off this tap

21

Step 21 of 31

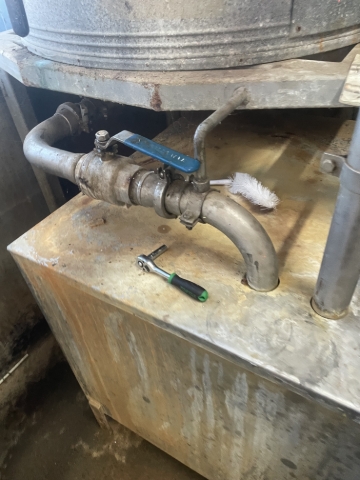

<p>Fill tub with cold water for a rinse - once fill turn off</p>

Fill tub with cold water for a rinse - once fill turn off

22

Step 22 of 31

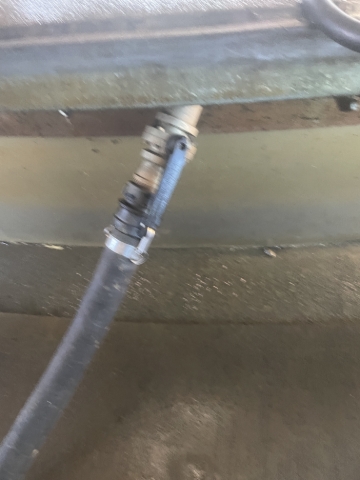

<p>Run a tub of cold water through the plant</p>

Run a tub of cold water through the plant

23

Step 23 of 31

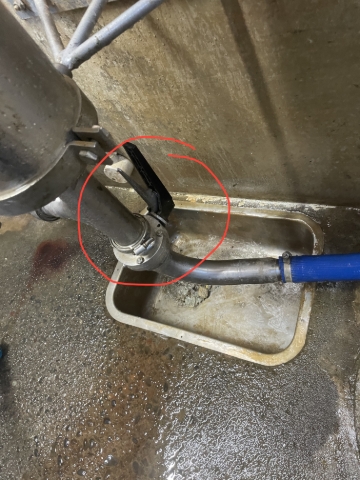

<p>Open tap below filter sock</p>

Open tap below filter sock

24

Step 24 of 31

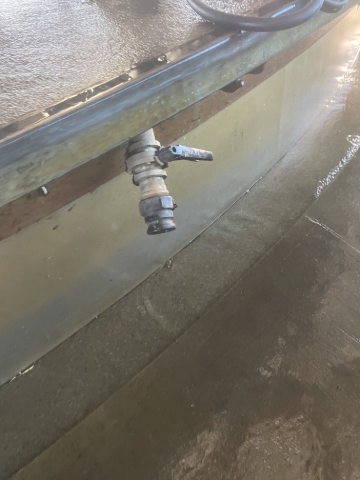

<p>Once cold water has gone through turn off and disconnect </p>

Once cold water has gone through turn off and disconnect

25

Step 25 of 31

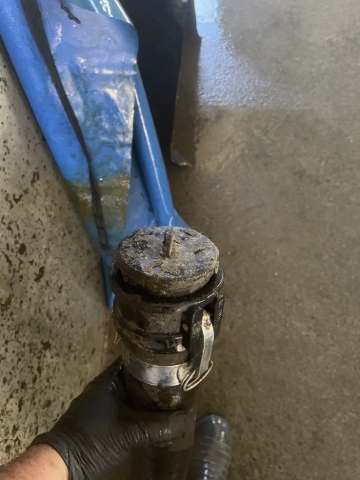

<p>Put bung back in</p>

Put bung back in

26

Step 26 of 31

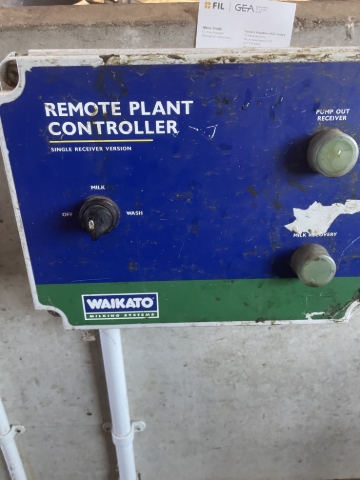

<p>Pump out receiver</p><p>Then flick switch back to “milk” </p>

Pump out receiver

Then flick switch back to “milk”

27

Step 27 of 31

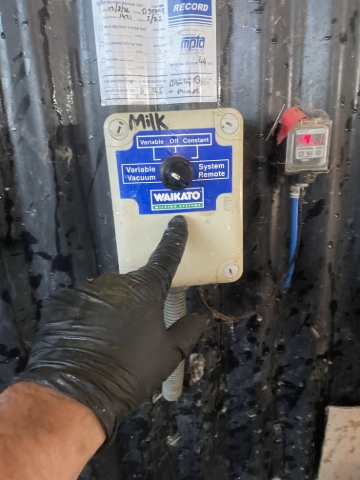

<p>Turn to “off” to turn off cowshed</p>

Turn to “off” to turn off cowshed

28

Step 28 of 31

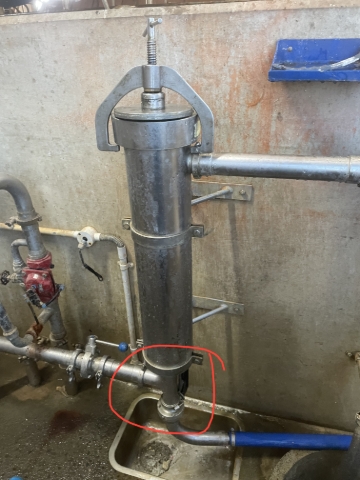

<p>Open tap at bottom of filter to let water drain out</p>

Open tap at bottom of filter to let water drain out

29

Step 29 of 31

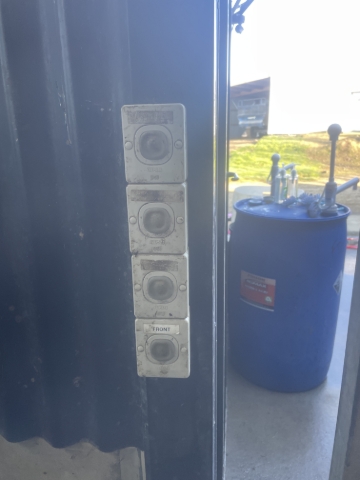

<p>If tanker is due that day you will need to leave the tub full of cold water so they can do a rinse of vat on pick up</p><p>Turn off lights</p>

If tanker is due that day you will need to leave the tub full of cold water so they can do a rinse of vat on pick up

Turn off lights

30

Step 30 of 31

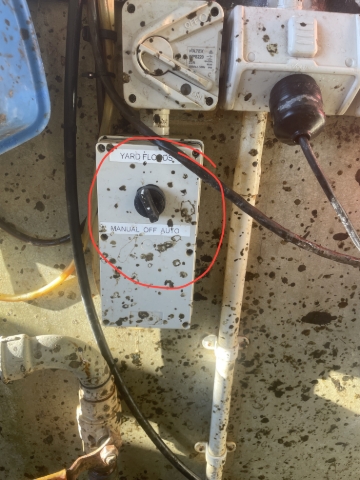

<p>Turn off yard flood lights </p>

Turn off yard flood lights

31

Step 31 of 31

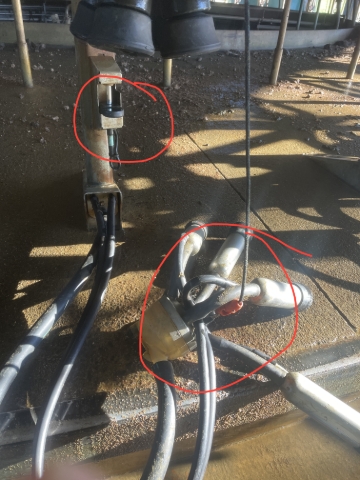

<p>Take down cups and flick switch down</p>

Take down cups and flick switch down
