Leaking water trough
1
Step 1 of 8
<p>Check water trough when getting cows out of paddock</p>

Check water trough when getting cows out of paddock

2
Step 2 of 8
<p>If there’s heaps of water around trough report it AND go to trough</p>

If there’s heaps of water around trough report it AND go to trough

3
Step 3 of 8

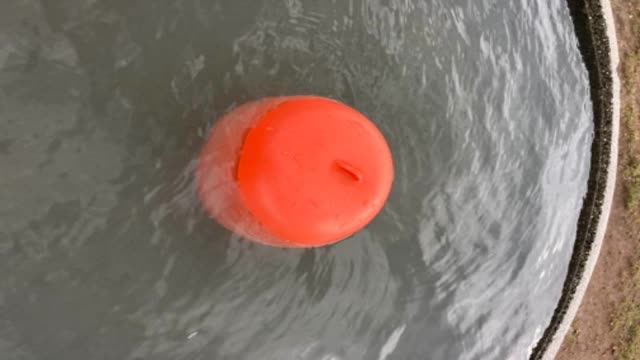

<p>Check that the float (orange ball) is still attached to valve.</p>

Check that the float (orange ball) is still attached to valve.

4
Step 4 of 8

Look down to the valve where water goes into trough. Put your hand down to valve and make sure the valve (water direction) is pointing DOWN to the bottom of trough

5
Step 5 of 8

If the water isn’t flowing downwards and is flowing either left or right you’ll need to turn the valve so it’s pointing downwards

6
Step 6 of 8

If it’s still leaking pull up on the float and see if this stops the flow of water - you should be able to hear it flowing

7
Step 7 of 8

If you lifting the float up stops the flow of water it means that the rope between float valve and float is too long - you need to shorten it

8
Step 8 of 8

Either do this by untying the existing rope and tightening it up. Or cut off the existing one and put a new rope on. Make sure it’s tight and we’ll tied off.
