C - Branding Plate Gluing

Step 1 of 5

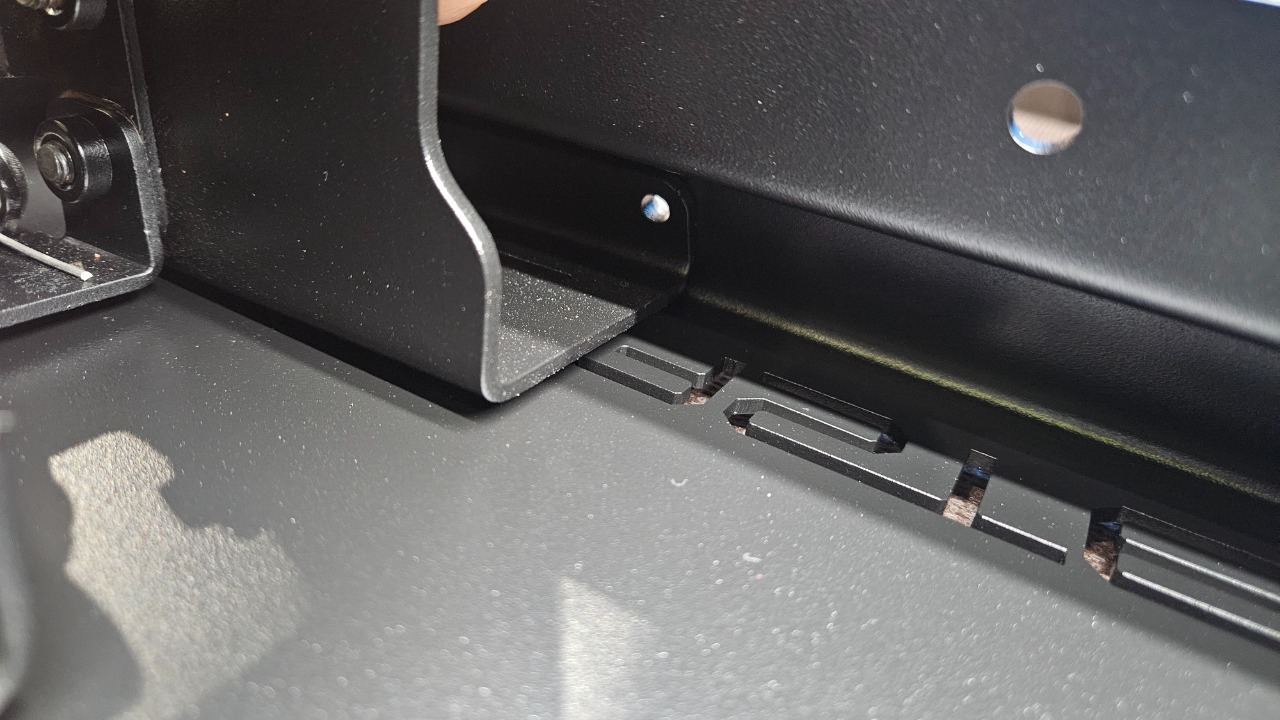

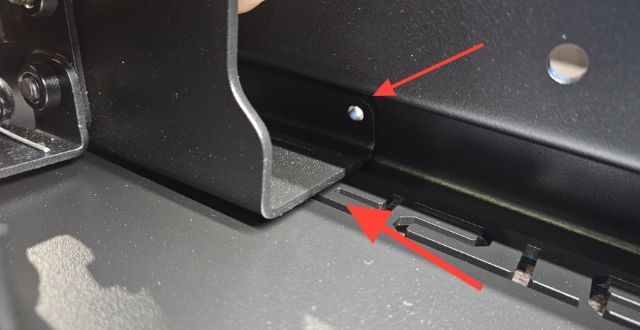

<p>Verify fitment of bracket. Inspect rivet holes in bottom flange. The alignment provides ~2mm of gap between the inside door face and the back of the bracket.</p>

Verify fitment of bracket. Inspect rivet holes in bottom flange. The alignment provides ~2mm of gap between the inside door face and the back of the bracket.

Step 2 of 5

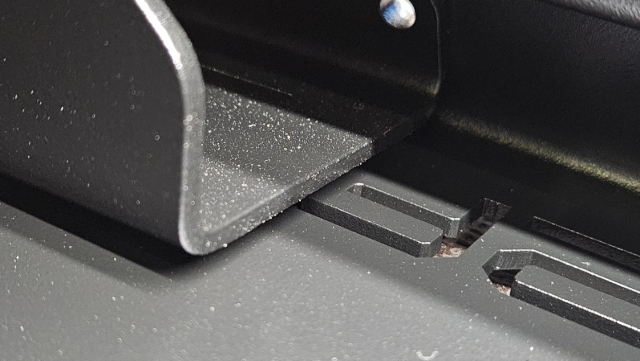

Showing gap between inside door face and bracket, enough roof for branding plate to be placed underneath

Step 3 of 5

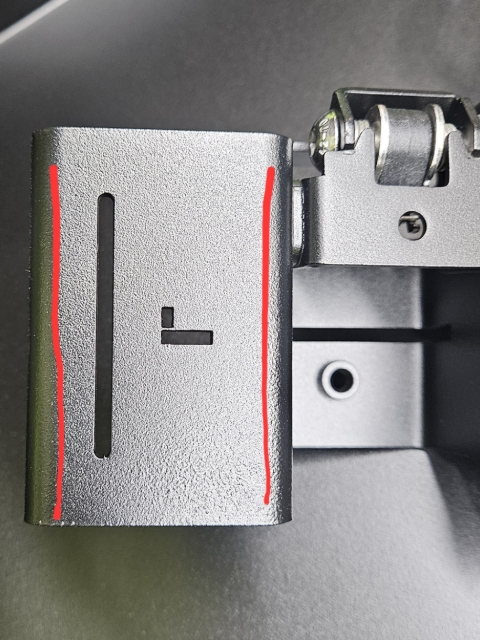

Red lines show where to apply sealant. Avoid applying between lines as this will bend the centre of the branding plate.

Step 4 of 5

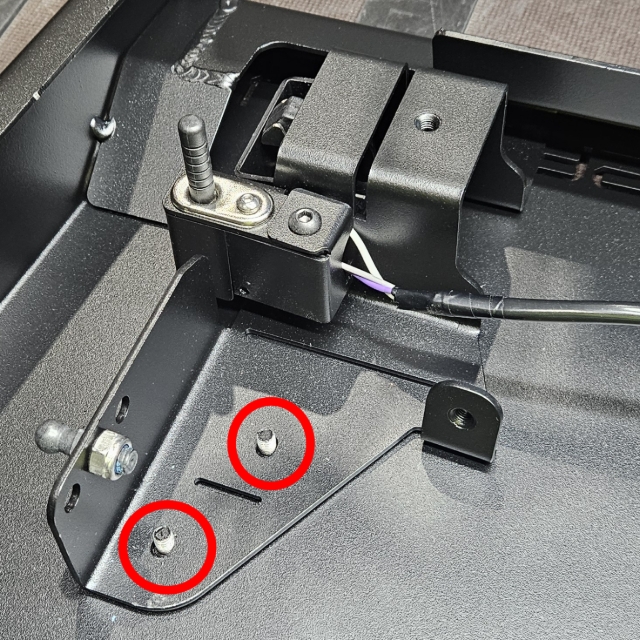

Place branding plate in and place bracket on top

Re-tighten nuts until snug as per other brackets

Step 5 of 5

Inspect branding place for any warpage on other face
