Place the lid of the dog box on to the wellside.

Ensure there is enough space between the lid and the rear of the cab.

Place the divider underneath the lid like so and fasten to the lid using m6 x 20 button tops and loctite.

Fasten the bottom of the lid to the divider using M6 x 20 button tops and loctite.

Place the fascia underneath the lid like so.

Bolt the lid to the fascia using M6 x 20 button heads and loctite.

Continue fastening the fascia to the divider using M6 x 20 button tops and loctite.

Take the clamps provided and fasten them to the dog box and wellside like so with 2 on each side.

Ensure the dog box is sitting square in the wellside before drilling.

Drill an 8mm hole down through the fascia and the wellside.

Drill down through the divider and wellside too.

Place M8x25 button heads through the holes you have just drilled.

Fasten M8 flanged nylocs on the bolts underneath the wellside.

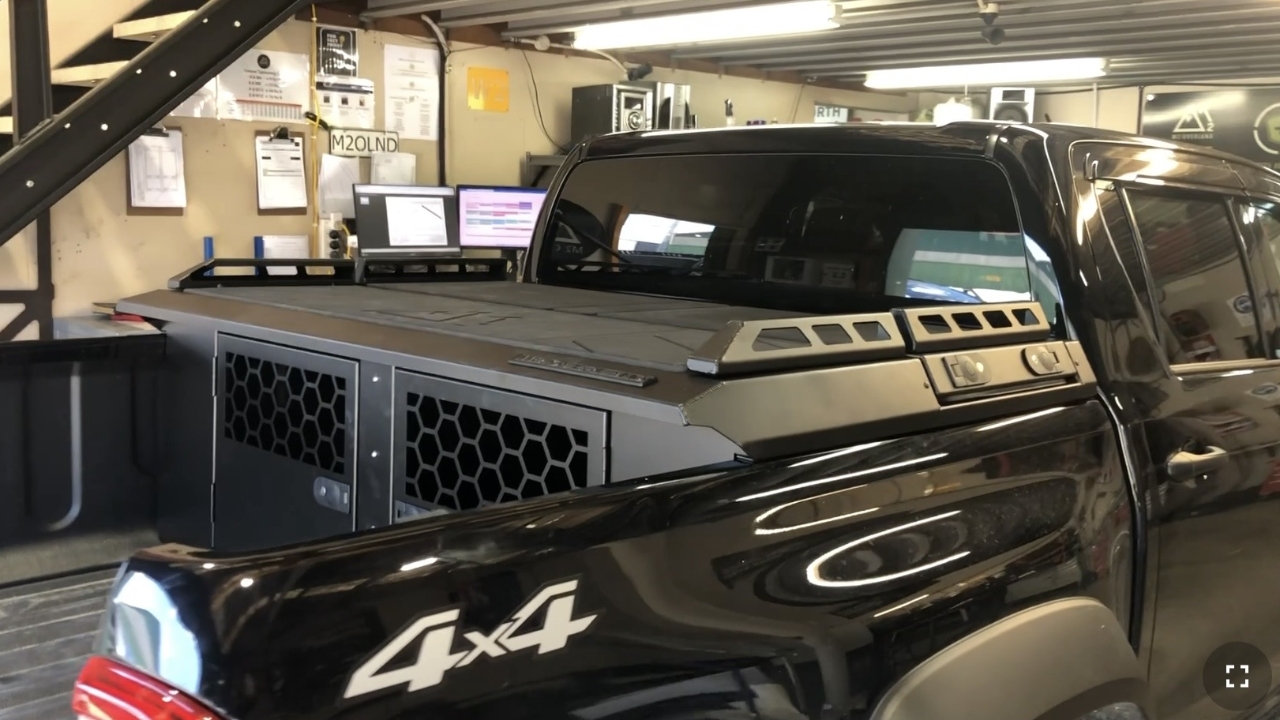

Your dog box installation is now complete
