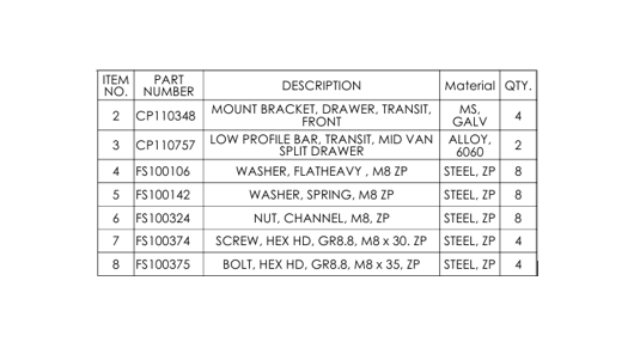

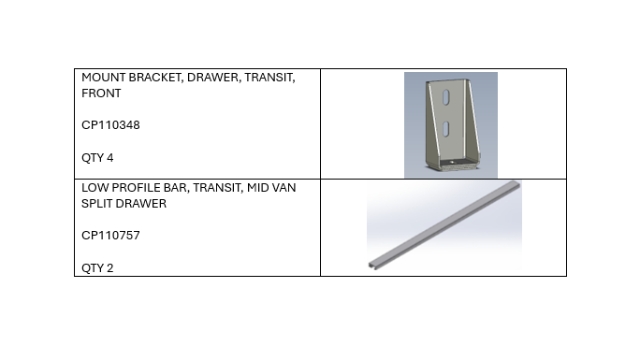

Components List

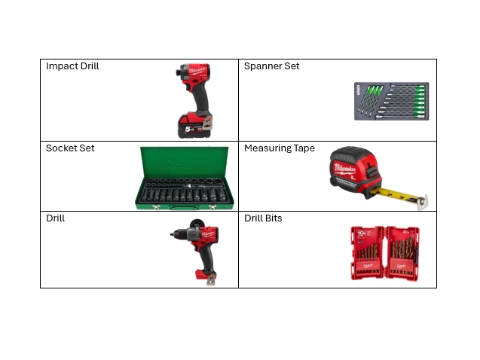

Tools List

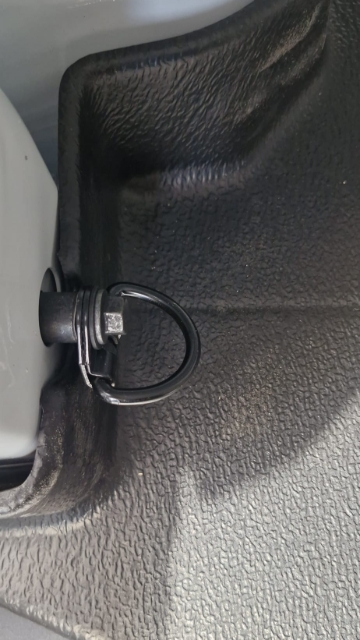

Begin the installation by removing the factory tie-down points located in the middle of the van, beside the door, and at the front.
Remove the Rubber spacer from the tie-down point, as this will be used to go behind the bracket that will be attached.

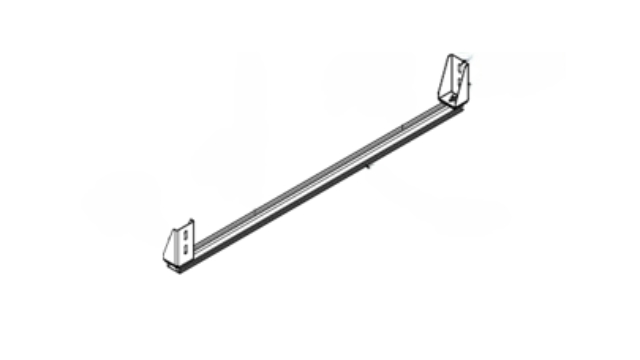

Fit 2 brackets (CP110348) to the end of the low-profile bar (CP110757), which can be adjusted if needed.
To fit the brackets to the low-profile bar, use:
M8 x 25mm Bolt
M8 Washer Flatheavy
M8 Channel Nut

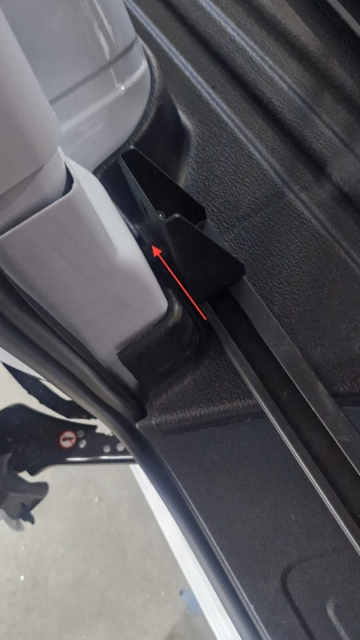

Fit the bracket and low pro bar to the original tie-down points. Ensuring the spacer is behind the bracket

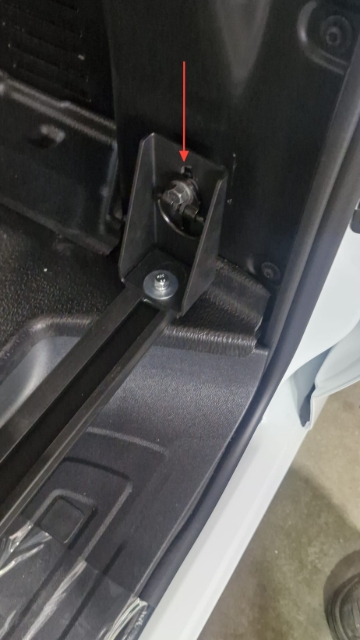

Fit the bracket and low-pro bar to the original tie-down points.
Remove the drawers from the drawer carcase to allow to lift into the van.
Lift the drawer into the van, sitting ontop of the low-profile bar

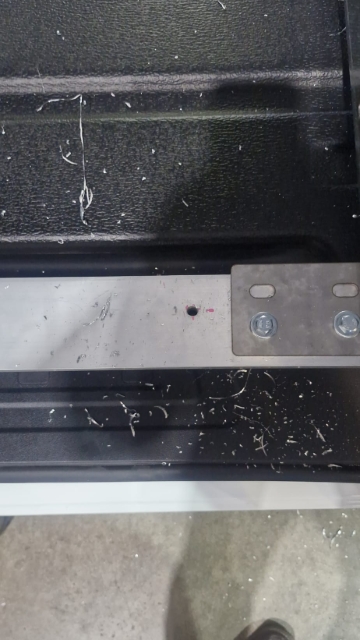

Hole Drilled

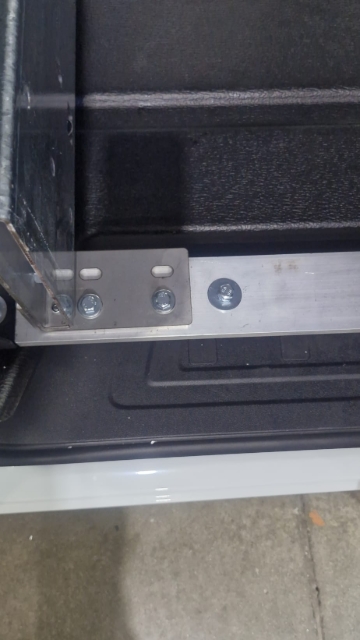

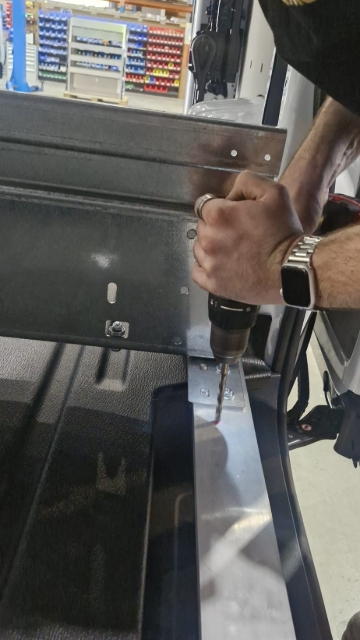

Fit the drawer to the Low - Profile bar using:
M8 x 25mm bolt
M8 Washer
M8 Channel Nut

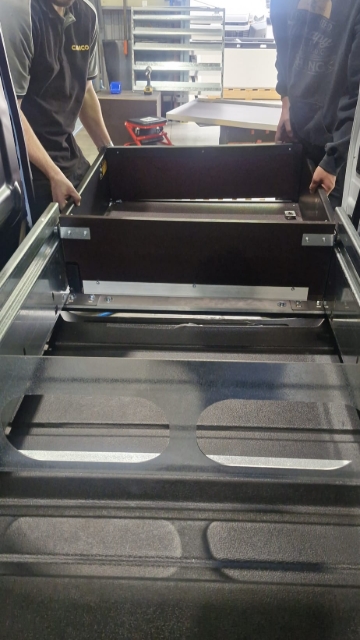

Lift the drawers back into the carcass.
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If the hard copy does not arrive, please contact us.
0800 663 500
