Fuel Filler, Silverado 2500 (2018-2022)

Knowby

Fuel Filler, Silverado 2500 (2018-2022)

1

Step 1 of 16

Follow these instructions to fit the fuel filler hoses on a Chevrolet Silverado 2500

2

Step 2 of 16

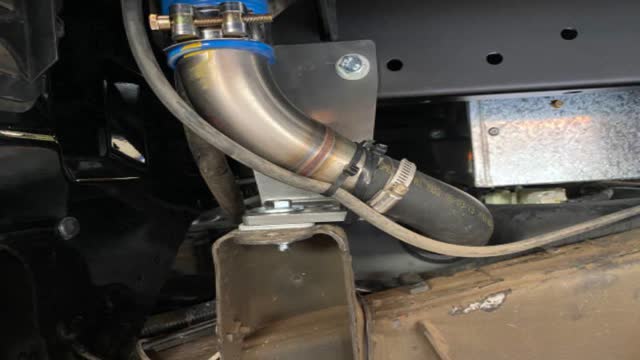

<p>Looks like this when completed</p>

Looks like this when completed

3

Step 3 of 16

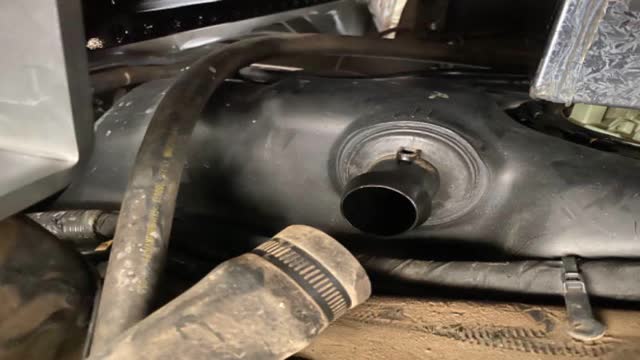

<p>Remove original hose from vehicle tank</p>

Remove original hose from vehicle tank

4

Step 4 of 16

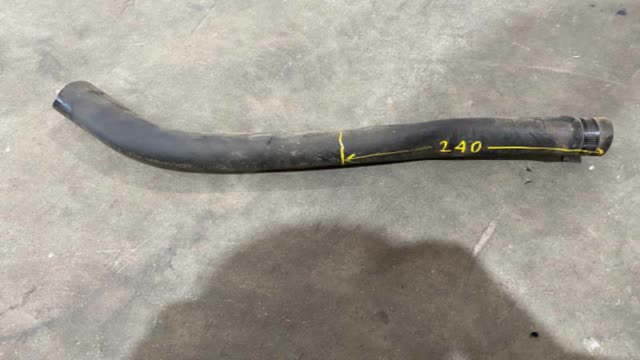

<p>Trim original hose.</p>
<p>Cut off (and discard) 240mm from the tank end</p>

Trim original hose.

Cut off (and discard) 240mm from the tank end

5

Step 5 of 16

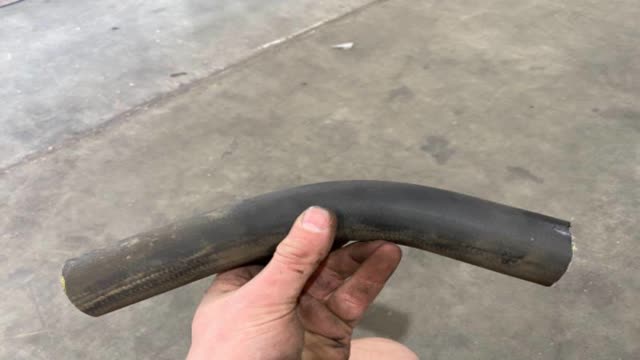

<p>Will look like this- this will be reused</p>

Will look like this- this will be reused

6

Step 6 of 16

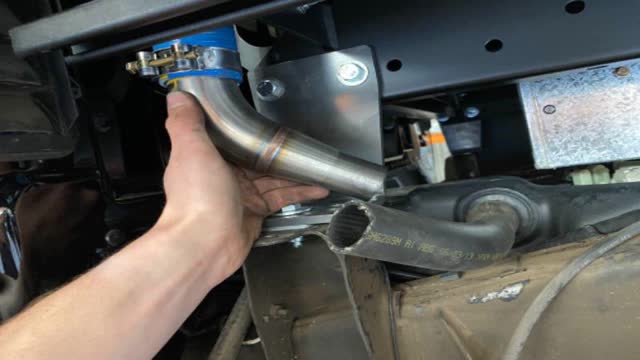

<p>Connect to tank, and to hoses supplied dirt to Bronco Tray</p>
<p>Make sure all clamps are done up tightly</p>

Connect to tank, and to hoses supplied dirt to Bronco Tray

Make sure all clamps are done up tightly

7

Step 7 of 16

If required, rotate the stainless elbow so that it works well. The idea it that fuel will flow smoothly without kinks

8

Step 8 of 16

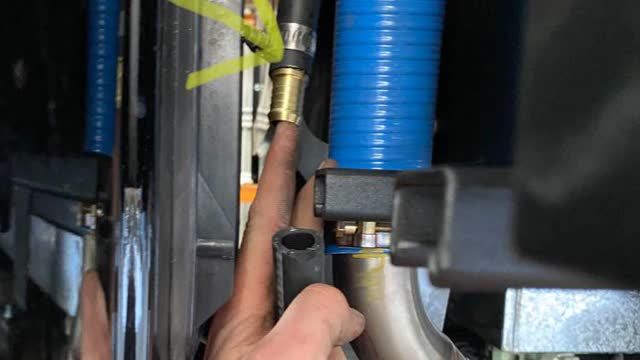

<p>Identify pre-fitted breather hose on Tray</p>

Identify pre-fitted breather hose on Tray

9

Step 9 of 16

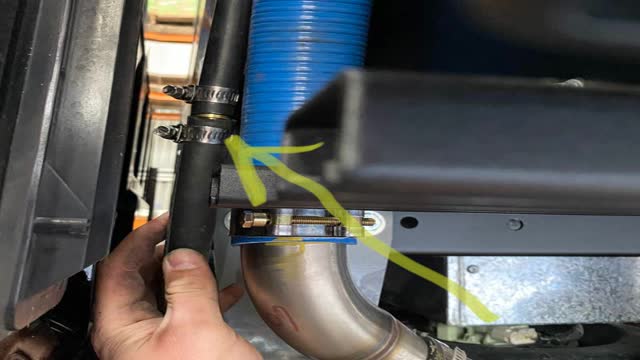

<p>Connect vehicle breather and tighten clamp</p>

Connect vehicle breather and tighten clamp

10

Step 10 of 16

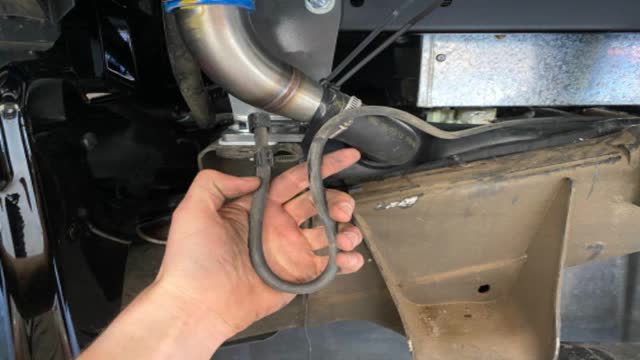

<p>Identify the diff breather on vehicle</p>

Identify the diff breather on vehicle

11

Step 11 of 16

<p>Secure it to fuel hose with zip ties</p>

Secure it to fuel hose with zip ties

12

Step 12 of 16

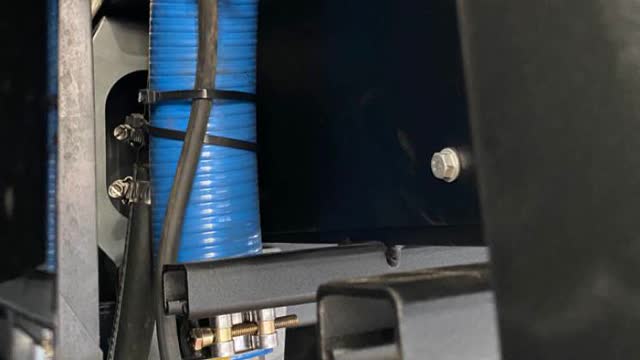

<p>It should be secured as high as possible</p>

It should be secured as high as possible

13

Step 13 of 16

Secure the filler to the Tray mount with zip ties.

The fuel path should be smooth (no kinks) to the tank

14

Step 14 of 16

Finished path looks like this

15

Step 15 of 16

<p>Neatly trim all zip ties</p>

Neatly trim all zip ties

16

Step 16 of 16

Done!
