TC - Installing FRC2 Radars
How to install FRC2 blindspot sensors..
How to install FRC2 blindspot sensors..
1
Step 1 of 9
<p>Identify the left and right sensor after tub removal.</p><blockquote><p><strong>CQC:</strong> Do not drop these as they are very sensitive.</p></blockquote><p></p>

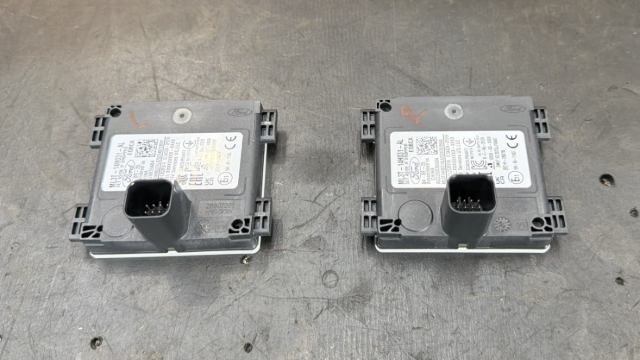

Identify the left and right sensor after tub removal.

CQC: Do not drop these as they are very sensitive.

2
Step 2 of 9
<p>Identify the RH FRC2 sensor bracket.</p>

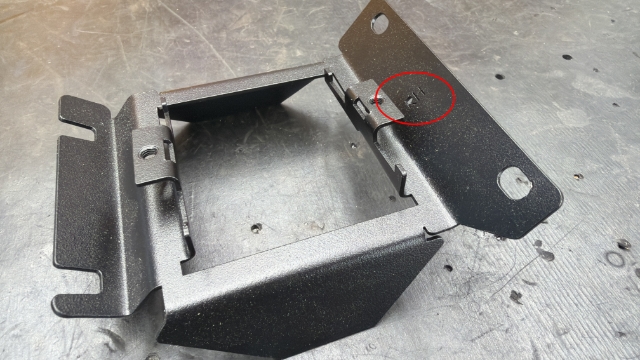

Identify the RH FRC2 sensor bracket.

3
Step 3 of 9

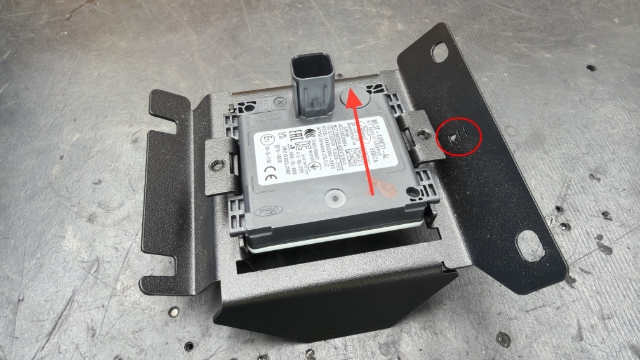

<p>Place the sensor facing face down inside the RH bracket. Ensure the plug is on the top of the bracket.</p>

Place the sensor facing face down inside the RH bracket. Ensure the plug is on the top of the bracket.

4
Step 4 of 9

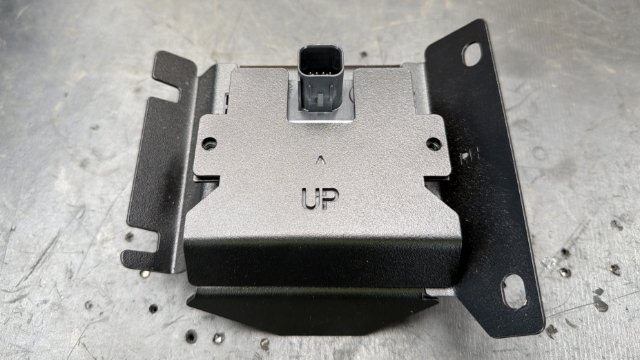

<p>Place the backing plate over the sensor.</p>

Place the backing plate over the sensor.

5
Step 5 of 9
<p>Fix the backing plate to the sensor bracket using 2 loctited M5x12 capscrews.</p>

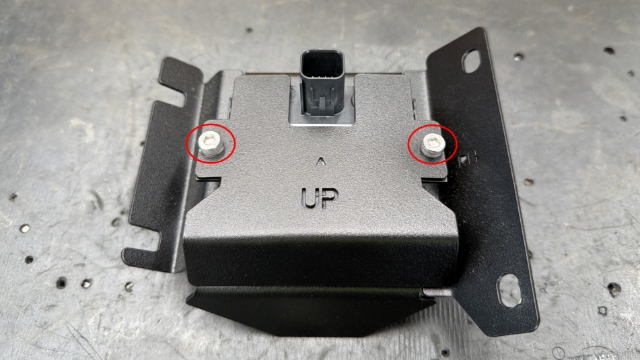

Fix the backing plate to the sensor bracket using 2 loctited M5x12 capscrews.

6
Step 6 of 9
<p>Place a RH injection moulded housing inside the RH bumper.</p>

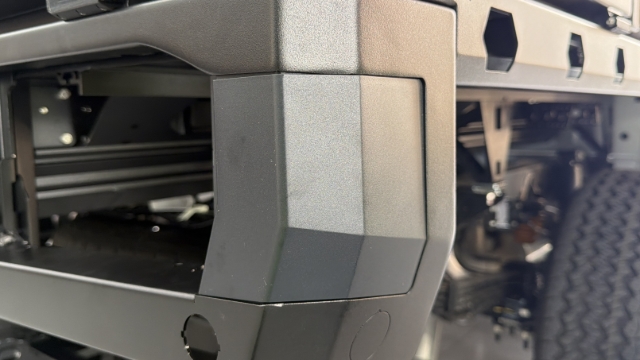

Place a RH injection moulded housing inside the RH bumper.

7
Step 7 of 9
<p>Loosen install 3 M6 flange nuts to the studs on the bumper.</p>

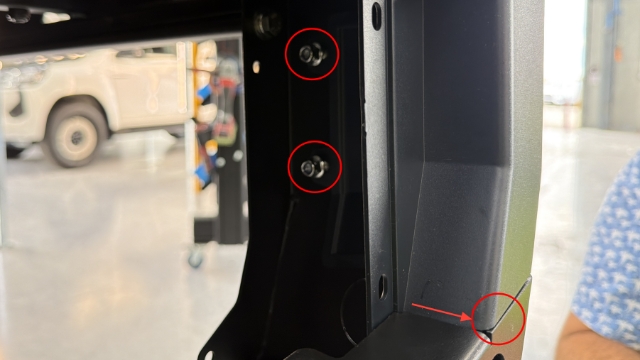

Loosen install 3 M6 flange nuts to the studs on the bumper.

8
Step 8 of 9

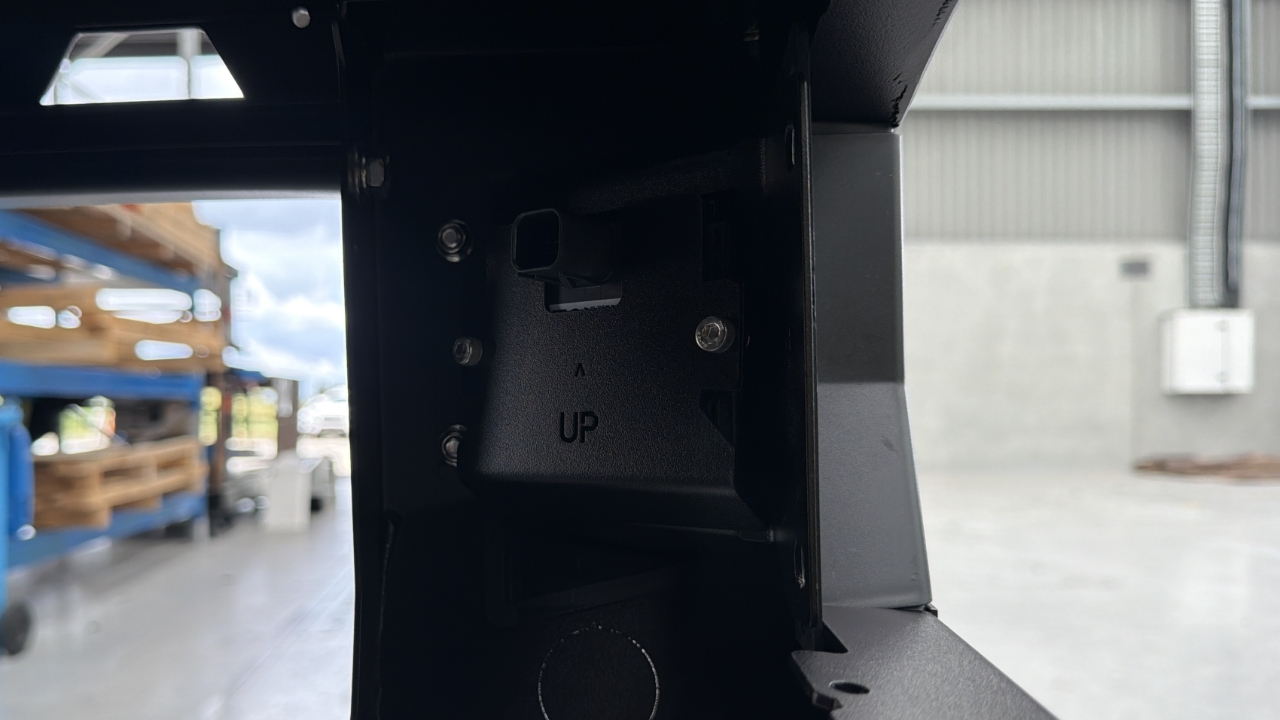

<p>Hold the sensor housing in place, then tighten the 3 M6 flange nuts using a 10mm socket.</p><blockquote><p><strong>CQC:</strong> Do not over tighten as this will snap the studs off the bumper.</p></blockquote><p></p>

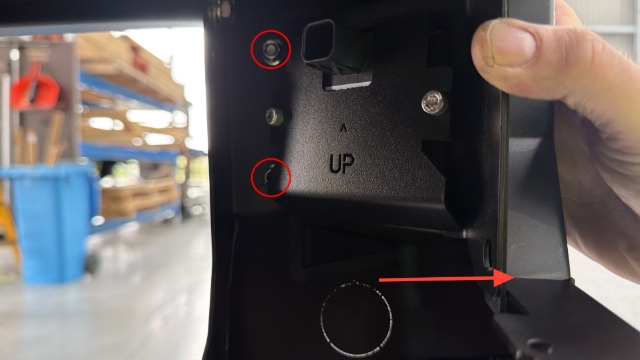

Hold the sensor housing in place, then tighten the 3 M6 flange nuts using a 10mm socket.

CQC: Do not over tighten as this will snap the studs off the bumper.

9
Step 9 of 9
<p>Repeat steps 1-8 with the LH sensor housing.</p>

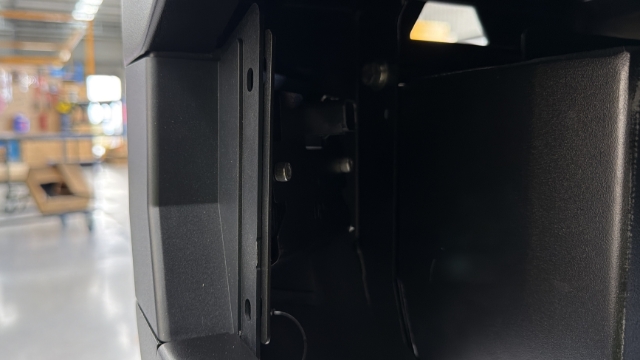

Repeat steps 1-8 with the LH sensor housing.
