Gala water at tanks

Gala water at tanks

Step 1 of 6

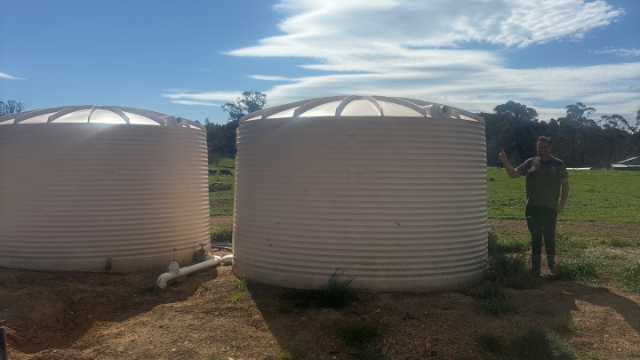

Go behind the tanks at the dairy.

Step 2 of 6

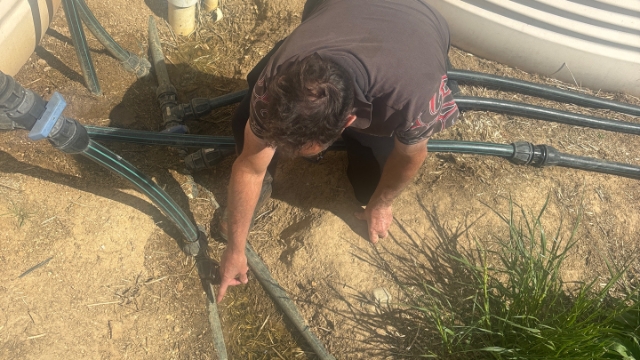

This is the line that comes from the vote

Step 3 of 6

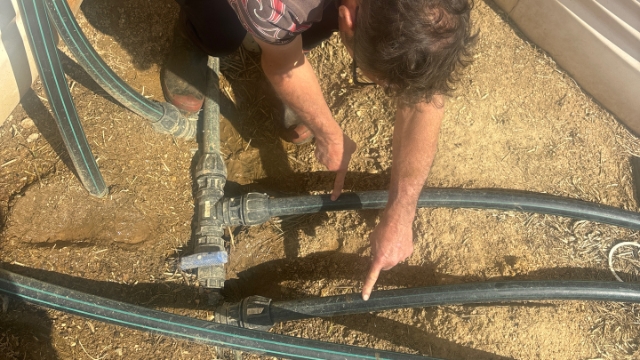

<p>These two lines go to the tank closest to Deloraine and provide portable water to dairy. The front line is inflow to tank the line closest to Grant is the line from the tank to dairy. The valve in the middle is the emergency line so if there’s a failure you can run bore water direct to dairy</p>

These two lines go to the tank closest to Deloraine and provide portable water to dairy. The front line is inflow to tank the line closest to Grant is the line from the tank to dairy. The valve in the middle is the emergency line so if there’s a failure you can run bore water direct to dairy

Step 4 of 6

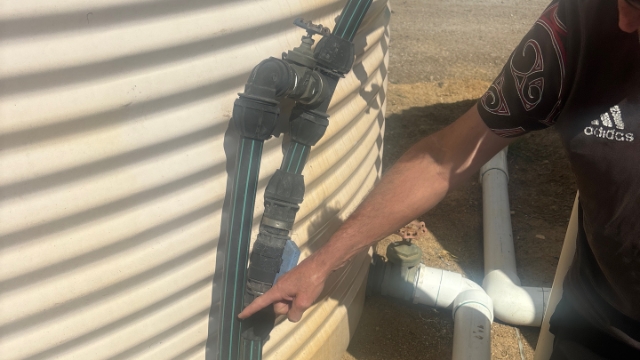

<p>The line pointed to is the specific dam tank fill line that comes from DAB pump around flood wash and to dairy. The valve behind it (see step below) flows to dairy ring main</p>

The line pointed to is the specific dam tank fill line that comes from DAB pump around flood wash and to dairy. The valve behind it (see step below) flows to dairy ring main

Step 5 of 6

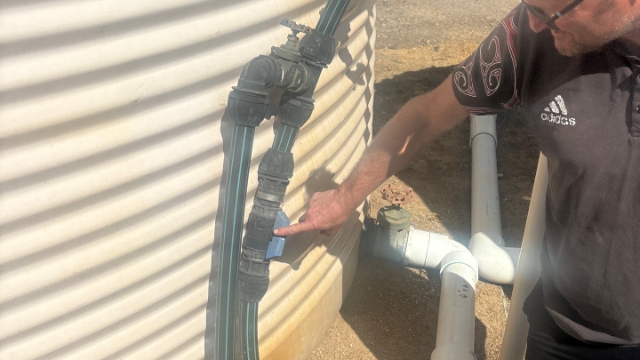

If this valve is shut it doesn’t go from the DAB dam pump to the tank fill and out to the ring main

Step 6 of 6

<p>This blue gate valve is in the open position and is the ring main valve. If you want to shut off water to B/C shut this valve and the one over other side of dairy in the PVC encased dropp</p>

This blue gate valve is in the open position and is the ring main valve. If you want to shut off water to B/C shut this valve and the one over other side of dairy in the PVC encased dropp
