xFuel Filler, GMC Denali, "Fixed Canopy", Diesel
1
Step 1 of 13

These instructions are provided to show how to fit the Fuel Hoses on a GMC Denali, with a "Fixed" Canopy

2
Step 2 of 13

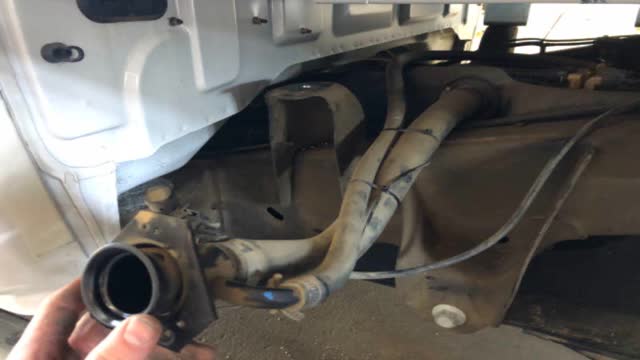

<p>Original vehicle filler will look like this</p>

Original vehicle filler will look like this

3
Step 3 of 13

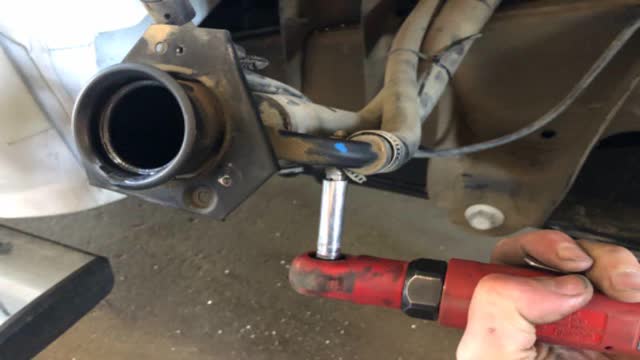

<p>8mm to remove breather hose</p>

8mm to remove breather hose

4
Step 4 of 13

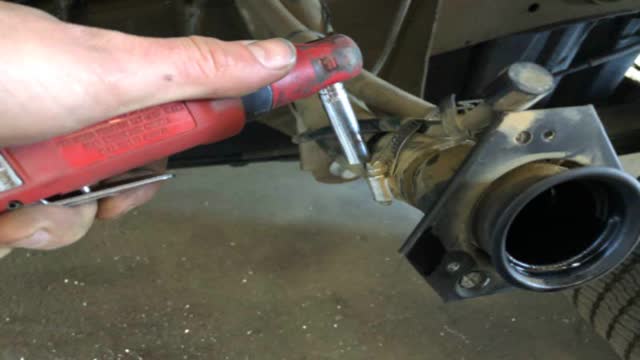

<p>Remove clamp for filler</p>

Remove clamp for filler

5
Step 5 of 13

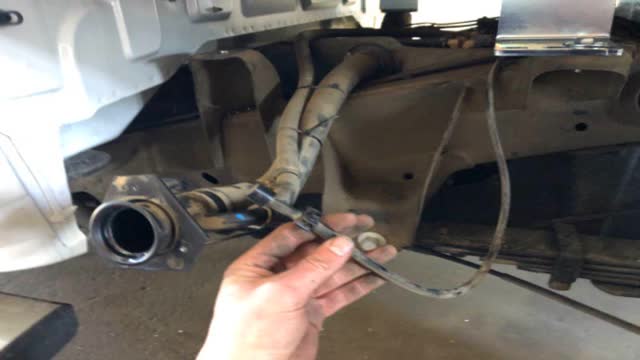

<p>This is the Differential breather. It will be remounted later. Just leave it out of the way for now.</p>

This is the Differential breather. It will be remounted later. Just leave it out of the way for now.

6
Step 6 of 13

Remove main filler hose from tank

7
Step 7 of 13

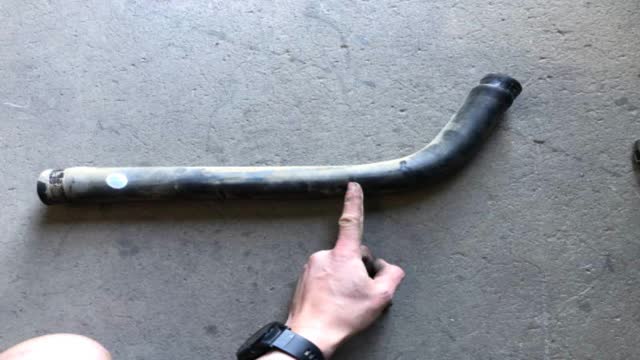

<p>Original hose Needs to be modified</p>

Original hose Needs to be modified

8
Step 8 of 13

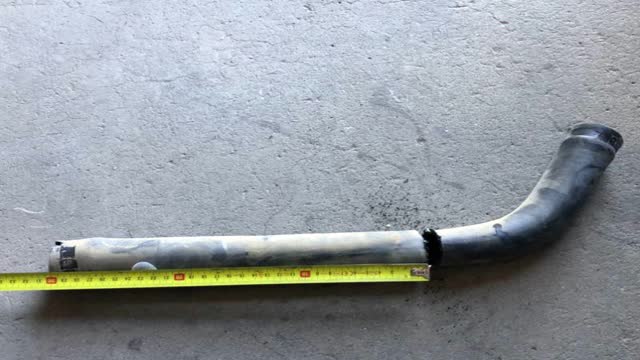

<p>Measure 400 from long end.</p> <p>• Chop hose</p> <p>• Discard the straight section.</p>

Measure 400 from long end.

• Chop hose

• Discard the straight section.

9
Step 9 of 13

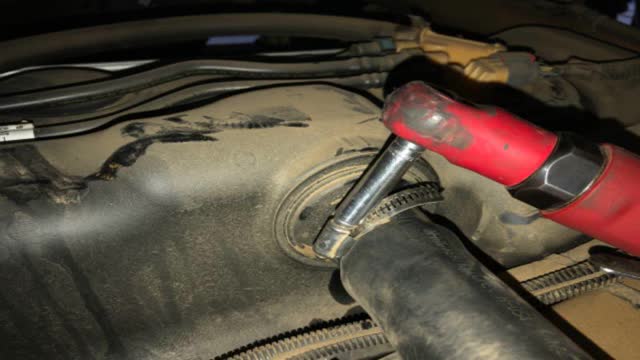

<p>Refit trimmed fuel hose to tank, tighten clamp.</p> <p>The “chopped” end faces out. (Not against the tank)</p>

Refit trimmed fuel hose to tank, tighten clamp.

The “chopped” end faces out. (Not against the tank)

10
Step 10 of 13

Connect main fuel line and tighten

Important that it has no kinks, so that the fuel flows smoothly.

Note: You may have noticed the front mount is not shown in this vehicle! We had it off temporarily while making this video.

11
Step 11 of 13

Remove the original earth from vehicle chassis. 10mm.

12
Step 12 of 13

This is the Differential breather. It should be mounted as high as possible.

Zip tie it to the fuel hoses, neatly trim the zip ties.

13
Step 13 of 13

Connect the breather hose

Breather hose is supplied extra long. You will need to trim to suit.

Connect breather and tighten.

Done!
