Knowby Kimber Farms
Knowby
Using the Platform
Forward Reverse Stop
Forward Reverse Stop
1
Step 1 of 11

To go Forward push

2
Step 2 of 11

To go Reverse pull towards you and hold the red button in

  • Red button won’t work alone
3
Step 3 of 11

Emergency stop- push button in

Twist to release once starting up again

4
Step 4 of 11

Stopping the platform

5
Step 5 of 11
<p><span>To reset platform rotation press the blue button in the middle of the box to the left of cups on</span><br></p>

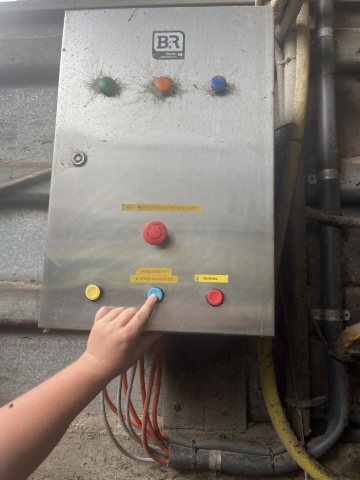

To reset platform rotation press the blue button in the middle of the box to the left of cups on

6
Step 6 of 11

If platform still is not moving after resetting - check the white chord is pushed in

7
Step 7 of 11
<p>If platform has stopped check the plate cooler/ tank refill button is fully switched on</p>

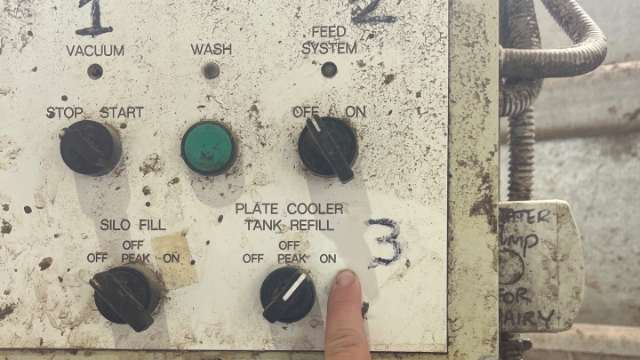

If platform has stopped check the plate cooler/ tank refill button is fully switched on

8
Step 8 of 11

Check there is power to the box by looking for yellow and green lights on

9
Step 9 of 11
<p>Check the springs are correct positions</p> <p>Positions for forwards</p> <ul> <li>Top spring behind the bar</li> <li>Bottom spring in front</li> <li>Bar pushed against top spring</li> </ul>

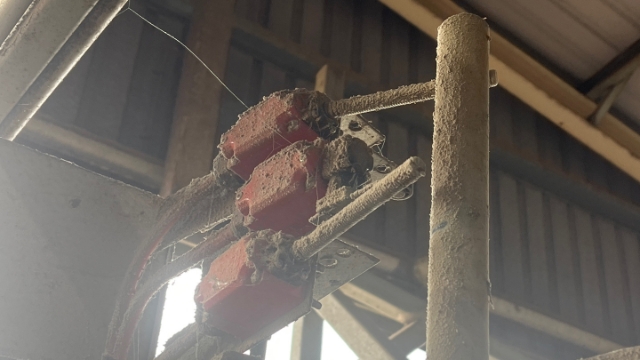

Check the springs are correct positions

Positions for forwards

  • Top spring behind the bar
  • Bottom spring in front
  • Bar pushed against top spring
10
Step 10 of 11
<p>Reverse spring location</p> <ul> <li>Bar pushed against bottom spring</li> </ul>

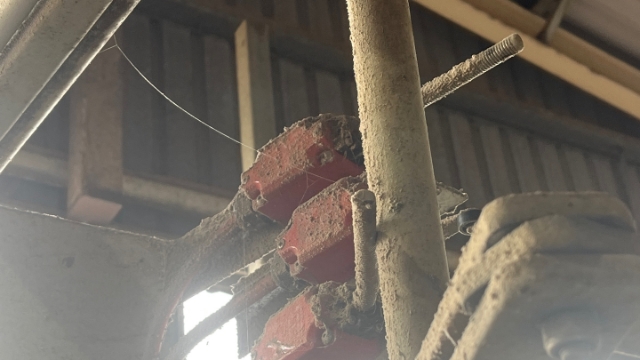

Reverse spring location

  • Bar pushed against bottom spring
11
Step 11 of 11

Check milk hose is on the spring.
