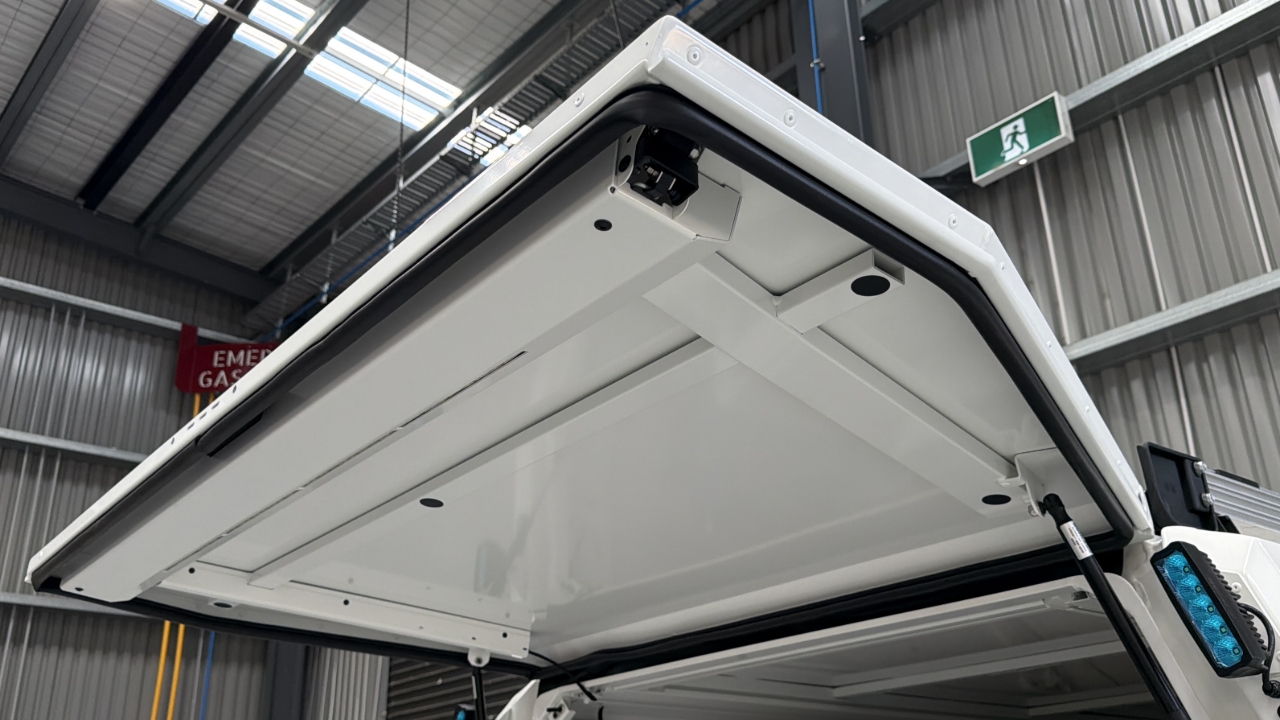

TC - Rear Door Windlace Replacement
How to replace the windlace on a TC rear door.
How to replace the windlace on a TC rear door.
1
Step 1 of 6

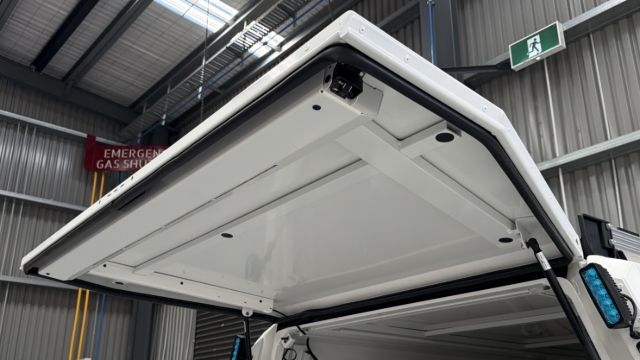

Remove the existing windlace from the rear door.
2
Step 2 of 6

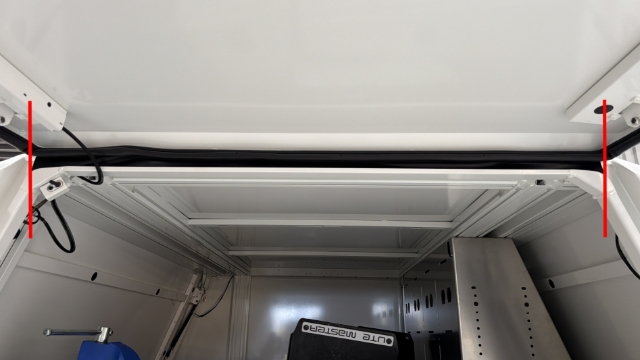

Line up the weather flap of the new windlace with the top of the rear door. Press firmly into place.
3
Step 3 of 6

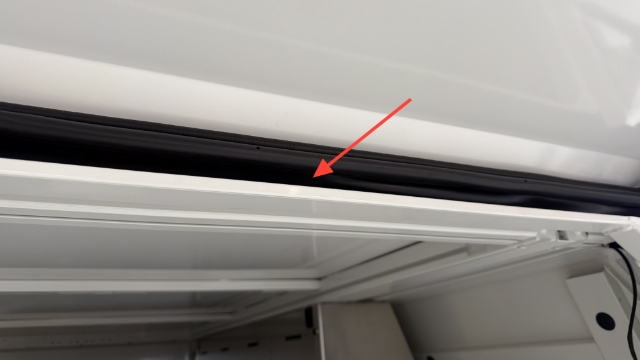

Ensure the weather flap is behind the top sill of the service body.
4
Step 4 of 6

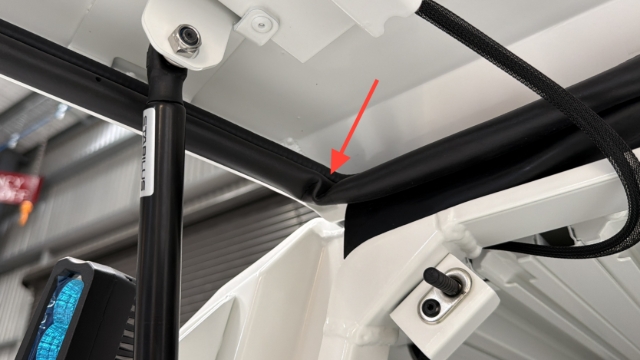

Press the top corners firmly into place.
Note: The windlace should fold as shown.
5
Step 5 of 6

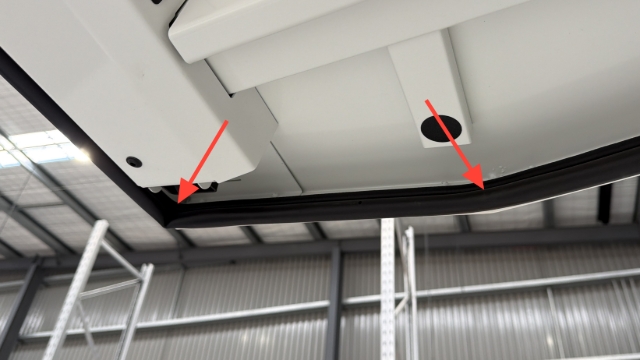

Continue to install the windlace around both sides of the door, pressing firmly into all corners.
6
Step 6 of 6

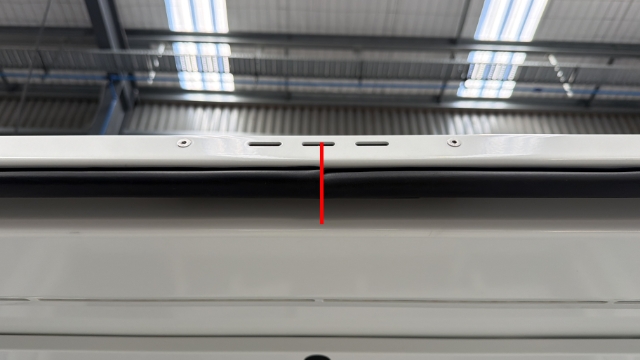

The windlace should meet in the middle of the door below the handle.
Note: If there is any excess windlace, trim accordingly.
