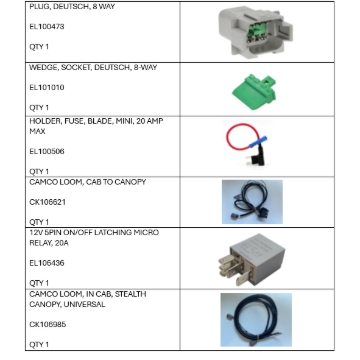

Components List

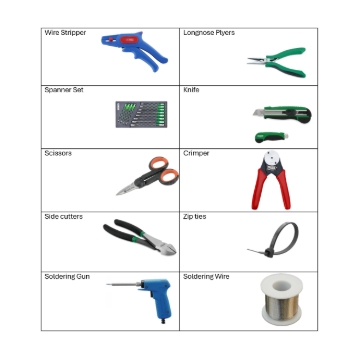

Tool List

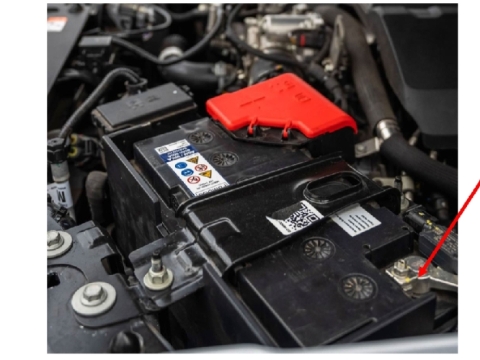

Ensure to disconnect the negative terminal from the battery before starting.
Feed the cab-to-canopy wiring loom through the passenger side of the wellside.
Connect the cab-to-canopy loom to the canopy using the 3-pin Deutsch plug. Ensure the connector clicks into place.
Pull the loom down from the wellside and route it underneath the ute.
Thread the cab-to-canopy loom between the wellside and chassis, then run it along the chassis to the front of the vehicle.
Remove the plastic trim on the passenger side that covers the step and A-pillar. Take care not to damage the D-seal.
Pull canopy to cab wire through the rubber grommet located underneath the Ute.
Locate and disconnect the plug behind the passenger-side A-pillar.
Strip 10mm from the black and white wires.

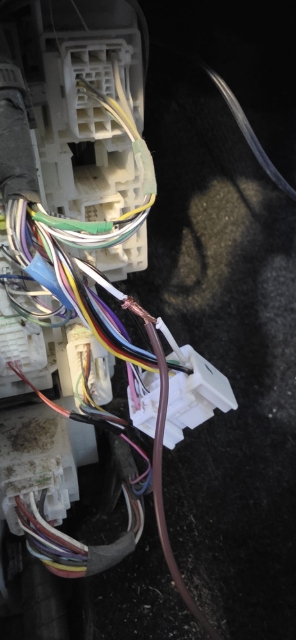

Connect Brown from the incab loom to the white with black factory wire.
Splice the brown wire into the clip and connect it to the white wire on the in-cab loom (Door Ajar alarm).
2nd Gen N80
(2018-2025)

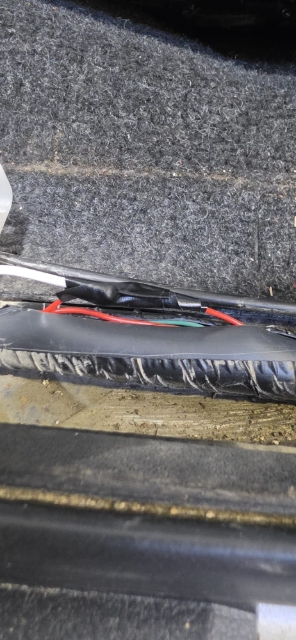

For the 1st Gen N80, the door ajar alarm wire colour is red
Years
(2015-2018)
Crimp a fuse blade holder onto the red wire and connect it to a spare constant power slot on the fuse stack. Insert two 5A fuses into the holder.

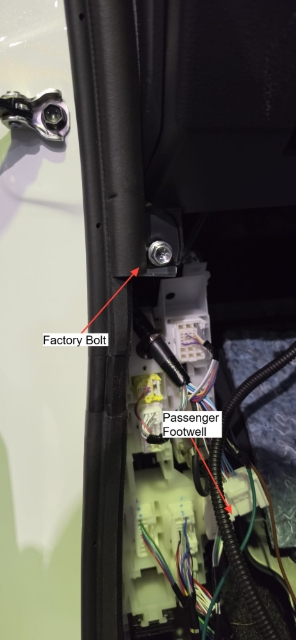

Remove the factory bolt from the passenger side above the wiring block.

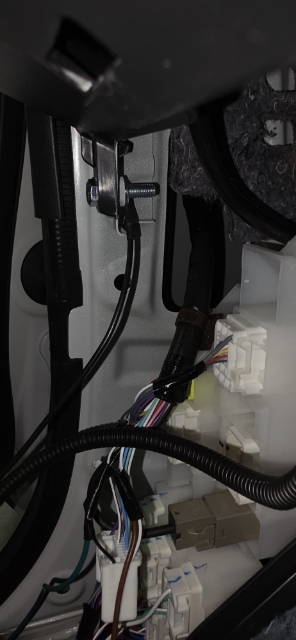

Once the factory bolt has been removed, sand the rear to remove paint.
Using an M6 x 20 bolt with an M6 Flat 12,5 OD Washer, fit it where the original factory bolt was and place the earth on as shown.

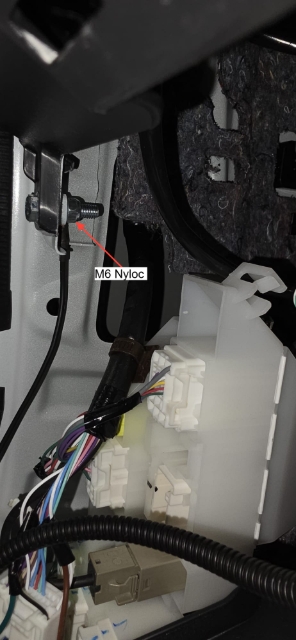

Fit an M6 Nyloc nut to the M6 x 20 bolt and tighten.

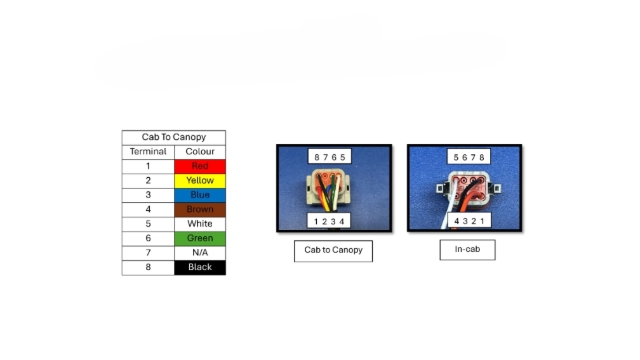

Connect the in-cab loom wires to the 8-pin Deutsch plug as shown in the diagram.
Plug the cab-to-canopy loom into the in-cab loom, then connect the canopy loom to the cab-to-canopy loom. Insert the 12V spin on/off latching micro relay into the open slot on the in-cab loom.
Tidy up the wiring inside the passenger side of the vehicle.
Please fill out the hard copy QA sheet included with the product you got.
Once filled out, please send it back to
If the hard copy does not arrive, please contact us.
