Fit Spare Tyre to Canopy
1
Step 1 of 8

Spare tyre centre bracket does not come pre-fitted to canopy. It is fit when Tray/Canopy is fit to vehicle.

At this stage it can be positioned correctly to suit the specific tyre size.

2
Step 2 of 8

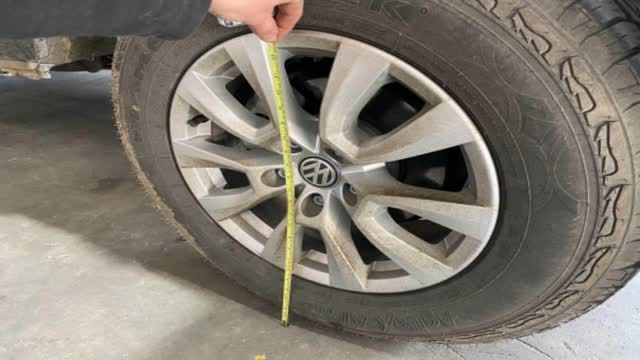

<p>Measure the tyre to be used.</p> <p>Determine the radius (distance from outside to centre)</p>

Measure the tyre to be used.

Determine the radius (distance from outside to centre)

3
Step 3 of 8

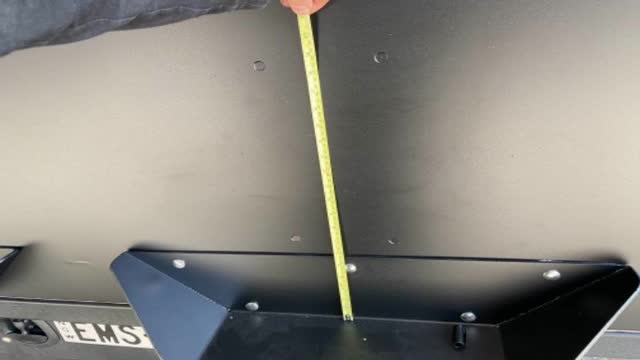

<p>Transfer the radius measurement to the canopy</p>

Transfer the radius measurement to the canopy

4
Step 4 of 8

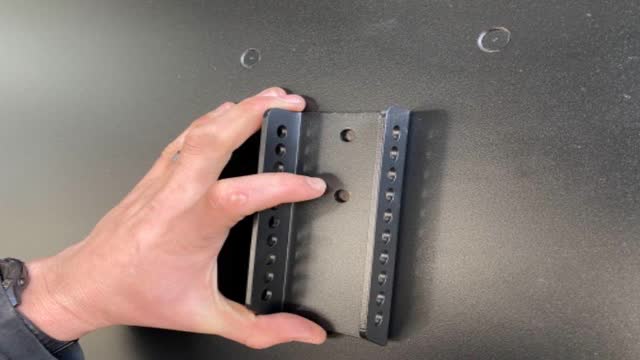

<p>Position the bracket, and mark the holes to be drilled</p>

Position the bracket, and mark the holes to be drilled

5
Step 5 of 8

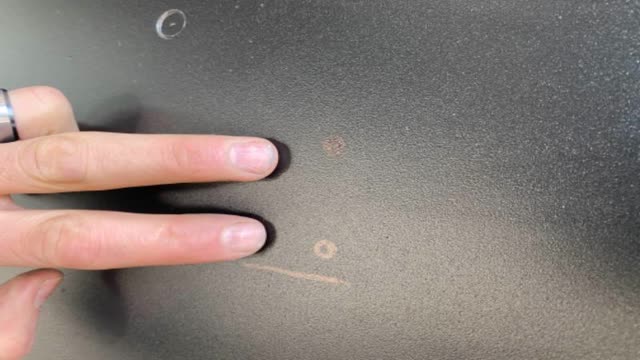

<p>Mark the holes with a pen</p>

Mark the holes with a pen

6
Step 6 of 8

Drill Holes,

Apply silicone/sealant to holes

Mount bracket

7
Step 7 of 8

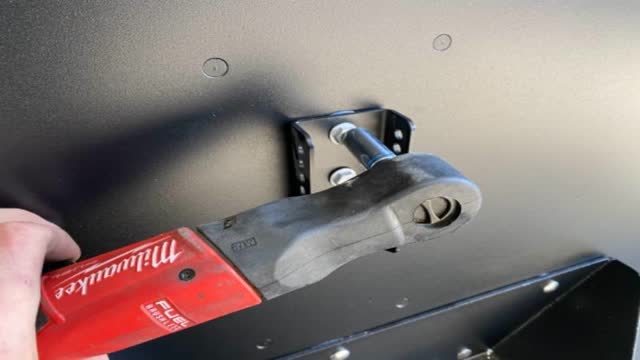

<p>Tighten, 13mm</p>

Tighten, 13mm

8
Step 8 of 8

Fit tyre

It may be necessary to trim the threaded rod, to suit the tyre.
