CHASSIS MOUNTS, LAND CRUSIER DC OLD MAN EMU SETUP
1
Step 1 of 12
2
Step 2 of 12

Contents (Click to view)

​STEP 3: Components List​

​STEP 6: Tools List​

​STEP 7: Torque Values​

​STEP 8: Hole Diagram​

​STEP 9: Chassis Mounts​

​STEP 12: QA Sheet​

3
Step 3 of 12

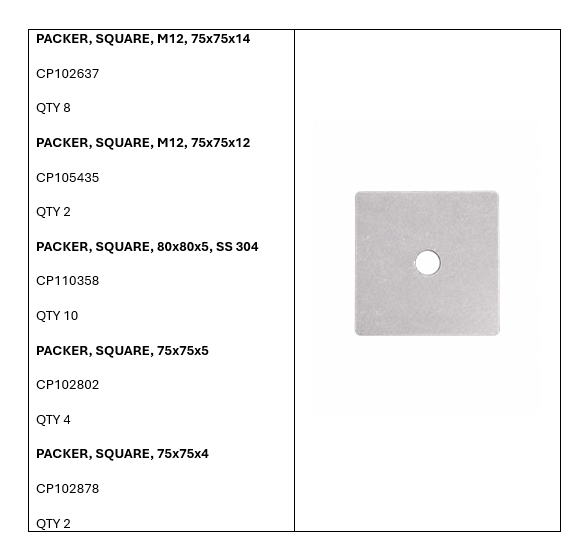

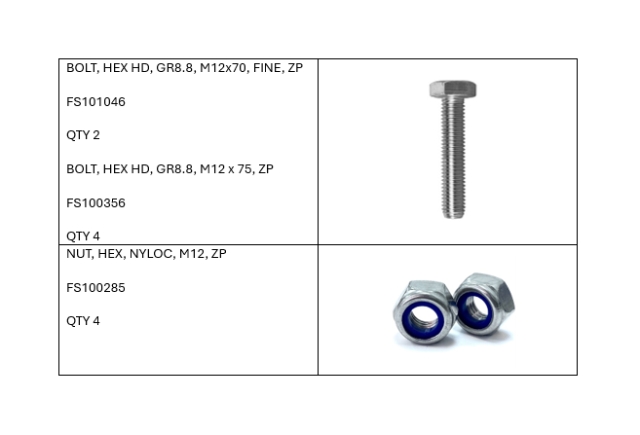

<p>Components List</p>

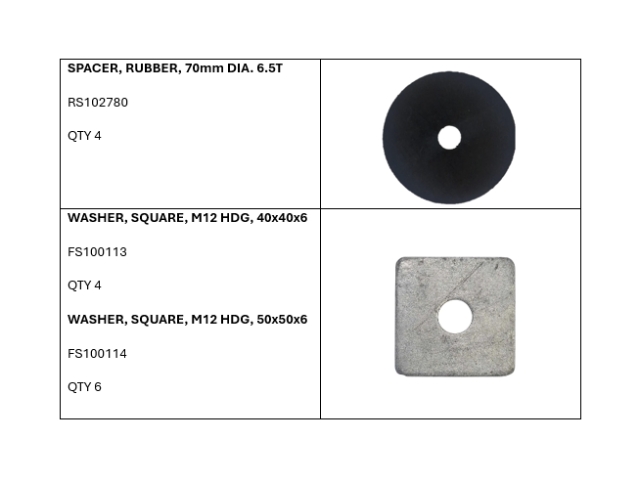

Components List

4
Step 4 of 12
5
Step 5 of 12
6
Step 6 of 12

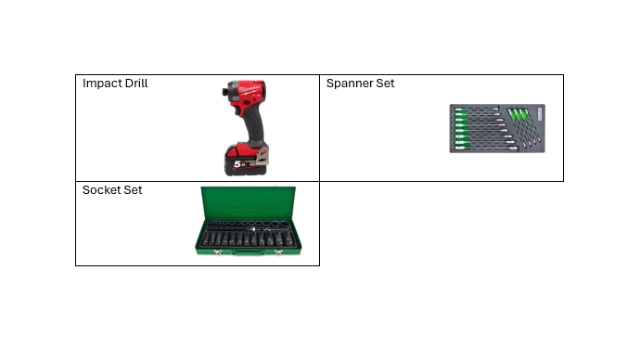

<p>Tools List</p>

Tools List

7
Step 7 of 12
<p>Torque Values</p>

Torque Values

8
Step 8 of 12
<p>Holes Diagram</p>

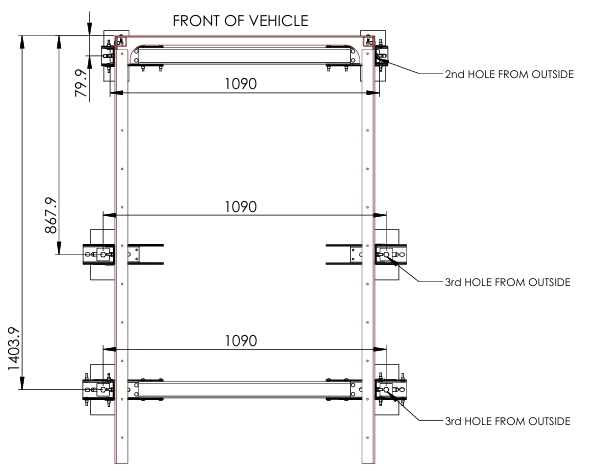

Holes Diagram

9
Step 9 of 12

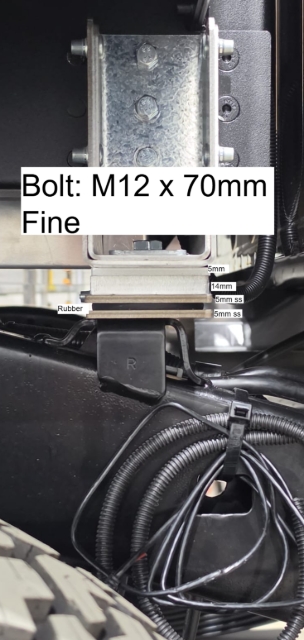

<p>Distance from front: 79.9mm</p><p>2nd hole from outside</p><p></p>

Distance from front: 79.9mm

2nd hole from outside

10
Step 10 of 12

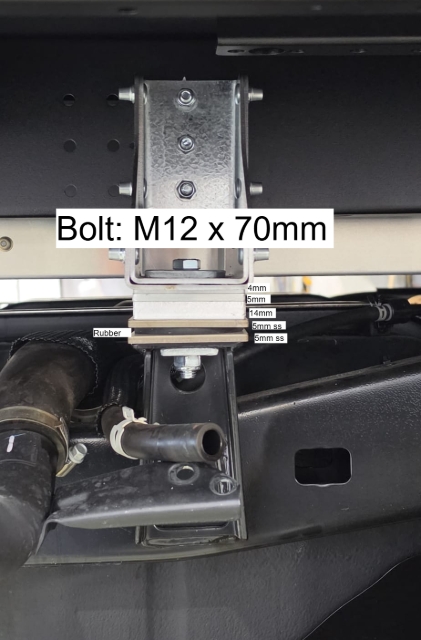

<p>Distance From Front: 867.9mm</p><p>3rd hole from outside</p>

Distance From Front: 867.9mm

3rd hole from outside

11
Step 11 of 12

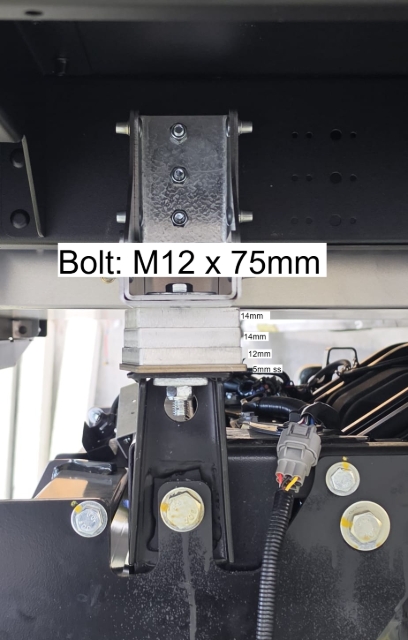

<p>Distance from front: 1403.9mm</p><p>3rd hole from outside</p>

Distance from front: 1403.9mm

3rd hole from outside

12
Step 12 of 12
<p>QA Sheet</p>

QA Sheet
