Mounts, Correct Positions: RAM 1500, "DS", 6'4" Tub
1
Step 1 of 4
<p>We use only 4 x Mounts on this vehicle, not the normal 6.</p>

We use only 4 x Mounts on this vehicle, not the normal 6.

2
Step 2 of 4
<p>&quot;R4&quot;</p> <p>Front Mount, Both Sides</p> <p>Note the chassis bolt is through the back hole in mount - this is important. If it is put in the front hole, Tray will be spaced too far away from cabin.</p>

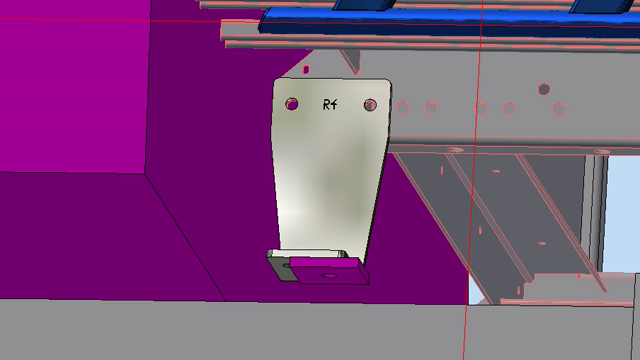

"R4"

Front Mount, Both Sides

Note the chassis bolt is through the back hole in mount - this is important. If it is put in the front hole, Tray will be spaced too far away from cabin.

3
Step 3 of 4
<p>Rear Mount 1767mm from front of front mount, to front of this mount &quot;W&quot; with a 16mm packer (as shown)</p>

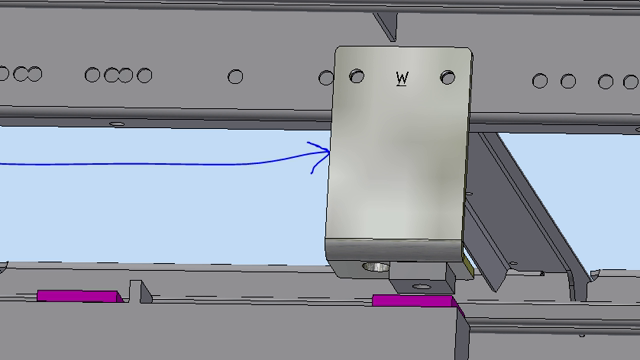

Rear Mount 1767mm from front of front mount, to front of this mount "W" with a 16mm packer (as shown)

4
Step 4 of 4
<p>Use the supplied 5mm square washer on the inside of vehicle chassis rail. On rear mounts</p> <p>Will look like this (on inside of vehicle chassis rails)</p>

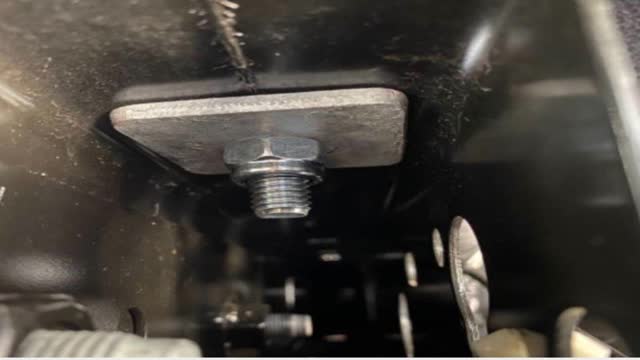

Use the supplied 5mm square washer on the inside of vehicle chassis rail. On rear mounts

Will look like this (on inside of vehicle chassis rails)
