Canopy Lifting Leg
1
Step 1 of 8

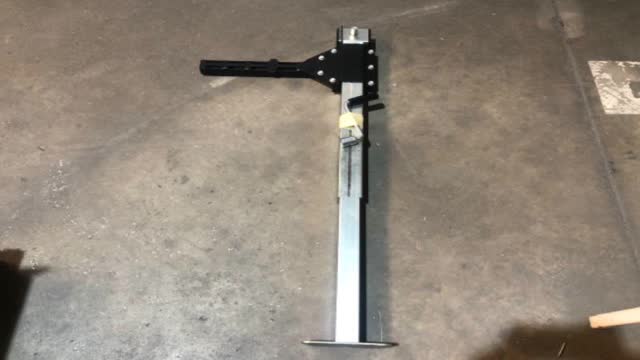

<p>Usually supplied as a set of 4 legs. 2 left hand and 2 right hand.</p>

Usually supplied as a set of 4 legs. 2 left hand and 2 right hand.

2
Step 2 of 8

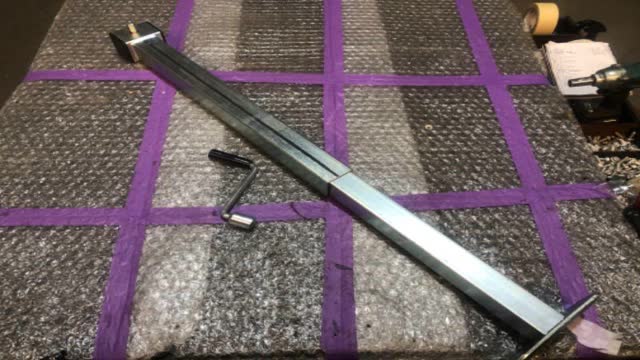

<p>Unwrap the leg from its plastic wrapping</p>

Unwrap the leg from its plastic wrapping

3
Step 3 of 8

Fit this piece

4
Step 4 of 8

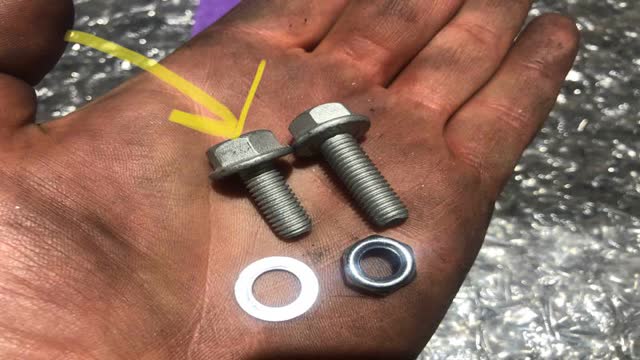

<p>We have 2 different lengths of the M8 bolts, use the shorter one</p> <p>M8 x 20mm Bolts, qty 7 M8 Nyloc Nut, qty 7 M8 Flat washer, qty 7</p>

We have 2 different lengths of the M8 bolts, use the shorter one

M8 x 20mm Bolts, qty 7 M8 Nyloc Nut, qty 7 M8 Flat washer, qty 7

5
Step 5 of 8

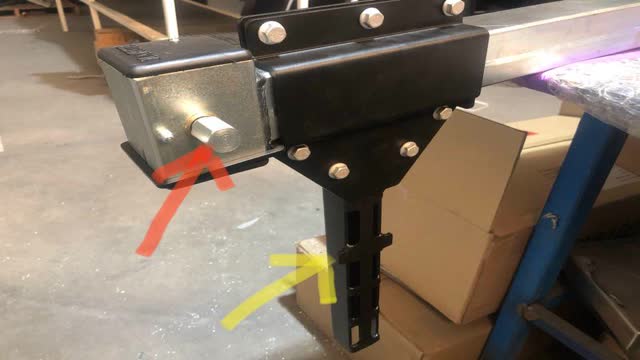

<p>As mentioned, we will make a “Left Hand” and a “Right Hand” Version.</p> <p>Make sure the winding knob (red arrow) is always on the same side as the “Ears” (yellow arrow)</p>

As mentioned, we will make a “Left Hand” and a “Right Hand” Version.

Make sure the winding knob (red arrow) is always on the same side as the “Ears” (yellow arrow)

6
Step 6 of 8

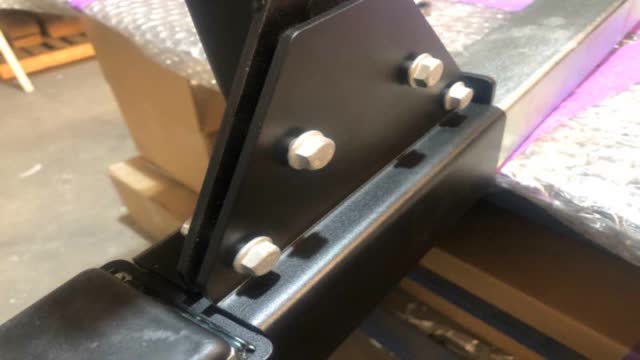

<p>Put in bolts.</p> <p>Make the head of the bolt on the same side as the winding knob</p>

Put in bolts.

Make the head of the bolt on the same side as the winding knob

7
Step 7 of 8

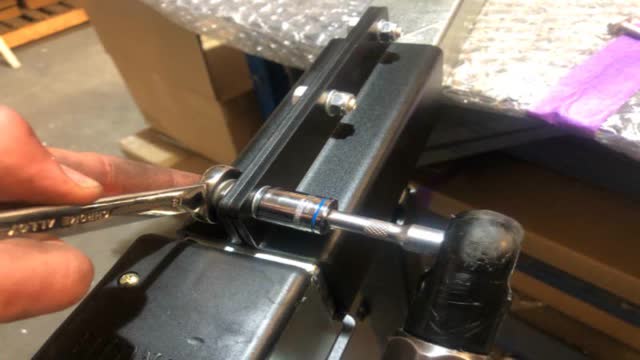

<p>Tighten up all fasteners (13mm)</p>

Tighten up all fasteners (13mm)

8
Step 8 of 8

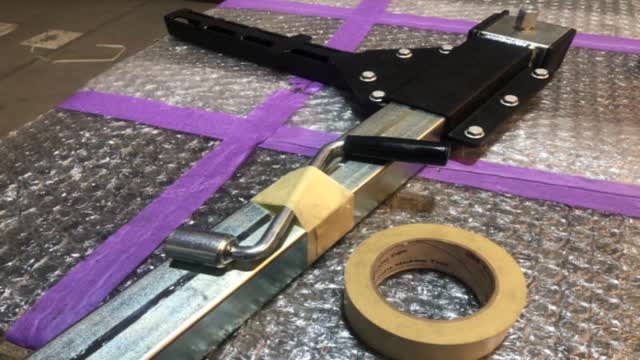

<p>If sending on freight, tape the winding handle to the leg</p>

If sending on freight, tape the winding handle to the leg
