How to Fit Mud Flaps
1
Step 1 of 8

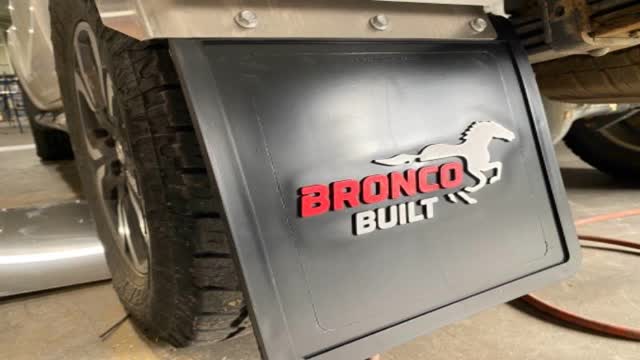

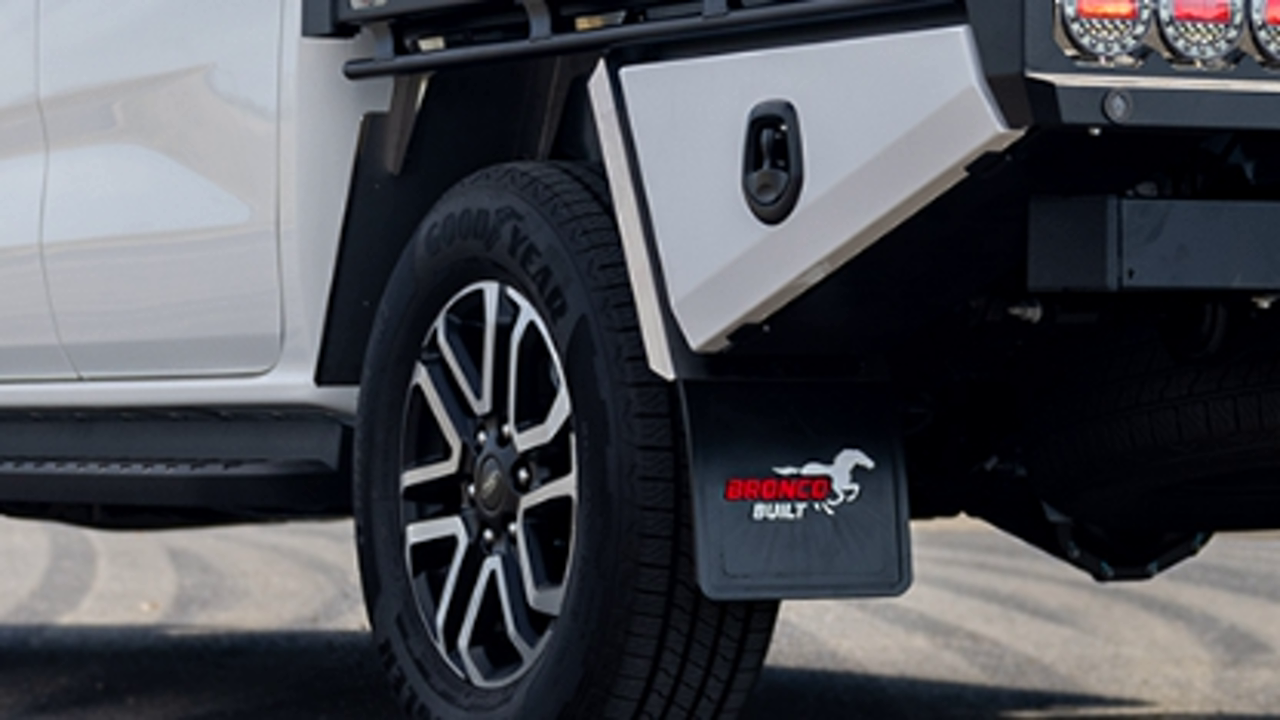

<p>Mud Flaps - Looks like this when done</p> <p>Note: Sometime it may be necessary to offset the flap (usually wider) to better suit the tyre.</p>

Mud Flaps - Looks like this when done

Note: Sometime it may be necessary to offset the flap (usually wider) to better suit the tyre.

2
Step 2 of 8
<p><strong>Tools Required</strong></p> <ul> <li>10mm Socket</li> <li>10mm Spanner</li> </ul>

Tools Required

  • 10mm Socket
  • 10mm Spanner
3
Step 3 of 8
<p><strong>Pro Tip</strong> The most common mistake is putting the Mud flap on the outside of the mud guard. It should always go to the <strong>INSIDE</strong> of the mud guard.</p>

Pro Tip The most common mistake is putting the Mud flap on the outside of the mud guard. It should always go to the INSIDE of the mud guard.

4
Step 4 of 8

Find the Parts

  • 2 x Mud Flaps
  • 2 x Backing Plates
  • Fasteners (6 x M6 Nyloc Nuts, 6 x M6 Bolts)
5
Step 5 of 8

Assemble to guard

Backing plate should be closest to tyre

6
Step 6 of 8

Tighten with, 10mm

7
Step 7 of 8

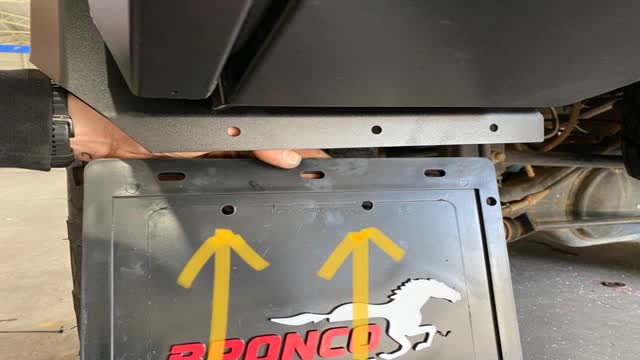

<p>Need to offset the mud flap wider?</p> <p>Drill new holes to suit</p>

Need to offset the mud flap wider?

Drill new holes to suit

8
Step 8 of 8

Mud flap has been offset wider to suit tyre
