How to centre a Gearforce Hard Lid on the Tub
1
Step 1 of 7

Due to manufacturing tolerances in vehicle tub, slotted mounting holes have been incorporated Gearforce Lid mounting system design to allow side-to-side adjustment of the Gearforce Lid during installation.

2
Step 2 of 7

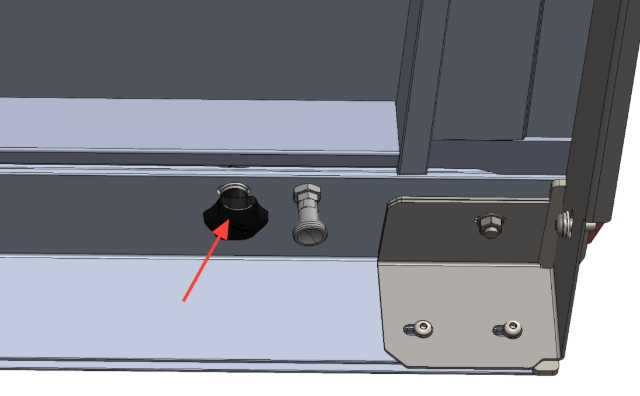

<p>Loosen the Wing-knobs on each side for the lid</p>

Loosen the Wing-knobs on each side for the lid

3
Step 3 of 7
<p>This will loosen the clamp allowing the hinge to slide along the elongated hole.</p>

This will loosen the clamp allowing the hinge to slide along the elongated hole.

4
Step 4 of 7

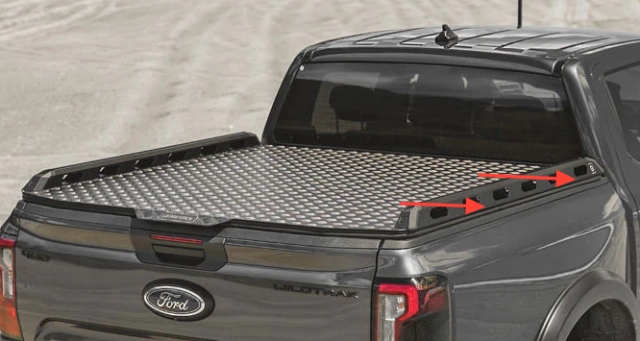

<p>Using 2 people, slightly lift the lid so it isn't resting on the seals, then pull this in the direction required.</p><p></p><blockquote><p>If the there is too much friction on the lid not allowing it to slide, release the vertical locator pin on the hinge also.</p></blockquote><p></p>

Using 2 people, slightly lift the lid so it isn't resting on the seals, then pull this in the direction required.

If the there is too much friction on the lid not allowing it to slide, release the vertical locator pin on the hinge also.

5
Step 5 of 7

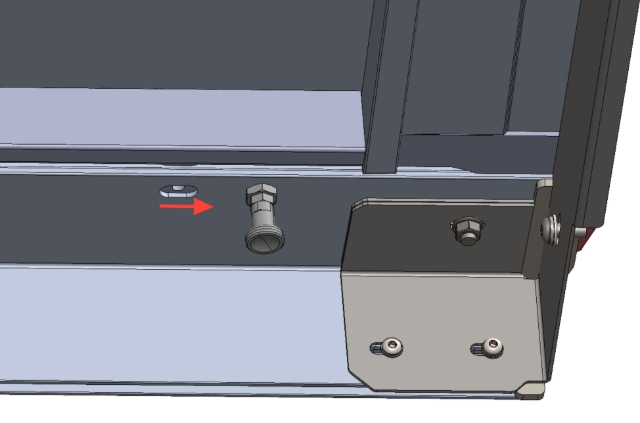

<p>If needed, the slot on the front frame and the hinge can be extended.</p>

If needed, the slot on the front frame and the hinge can be extended.

6
Step 6 of 7

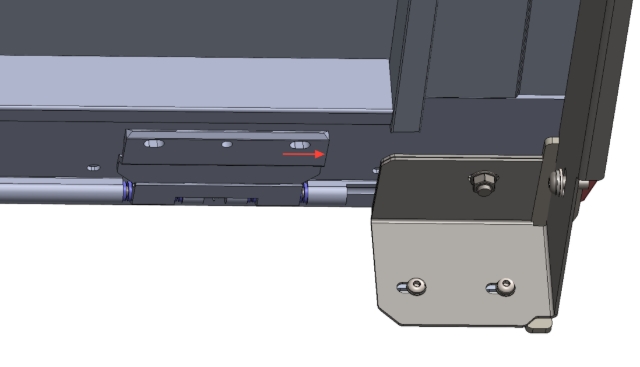

<p>The hinge slot may need to be extended also.</p>

The hinge slot may need to be extended also.

7

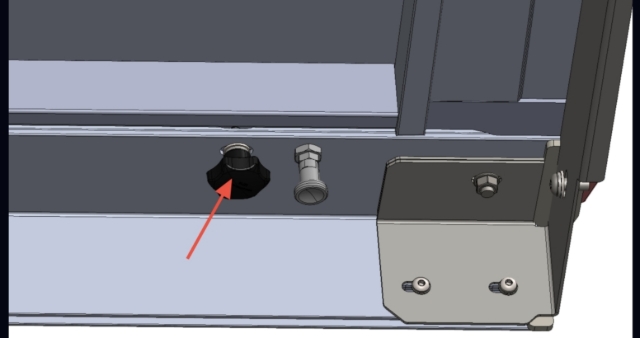

Step 7 of 7
